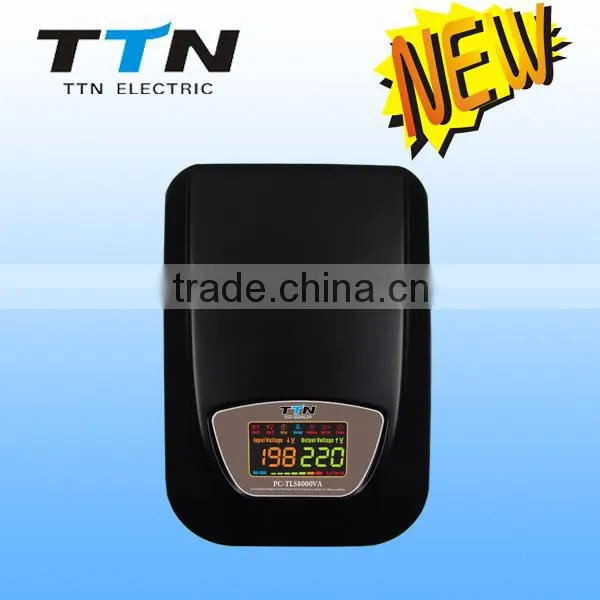

PC-TLS3.5KVA-10KVA Wall Mount Servo Motor Control Voltage Regulator

US$ 50.25 - 195 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

ttn

Model Number:

PC-TLS/TIS

Zhejiang TTN Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name ttn

Model Number PC-TLS/TIS

Usage Other, REGULATE VOLTAGE

Phase Single Phase

Current Type AC

Specifications

PC-TLS series Wall Mount Servo motor control voltage stabilizer has the low energy consumption,the over voltage protection,the l

MODEL	PC-TLS3500VA			PC-TLS5500VA	PC-TLS8000VA		PC-TLS10000VA
TECHNOLOGY	SERVO MOTOR CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL
LED DISPLAY	INFORMATION	INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION
	PROTECTION	Over Voltage				Output Voltage≥243±4v
		Low Voltage				Output Voltage≤188v±4v
		Over Loading				More Than 120%
		Over Temperture				120°C±10°C
		Delay Time				Long time(255 seconds)/Short time(5 seconds)
		Creepage
	Language	English/Russia/Chinese
Input Voltage	AC150-260V,120V-240V
Output Voltage	220+/-3% adjustable
Frequency	50Hz/60Hz
Phase	Single phase
Efficency	≥90%
Ambient Temperature	-15°C-45°C
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	3500VA		5500VA		8000VA		10000VA
Packing size(cm)	43.231.939.9		45.734.943.9		45.734.943.9		51.839.037.0
Packing (pcs)	2		2		2		1
G.M(KGS)	28.00		35.20		43.10		27.00
