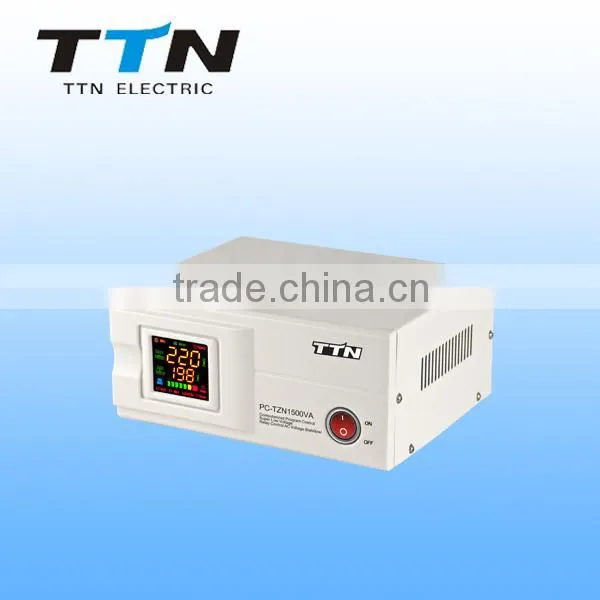

Automatic Voltage Stabilizer

US$ 12.35 - 27.95 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TTN

Model Number:

PC-TZN

Zhejiang TTN Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TTN

Model Number PC-TZN

Usage SVC

Phase Single Phase

Current Type AC

Specifications

PC-TZM series Relay control voltage stabilizer has the low energy consumption,the over voltage protection,the low voltage protec

MODEL	PC-TZM500VA		PC- TZM 800VA	PC- TZM 1000VA	PC- TZM 1500VA	PC- TZM 2000VA
TECHNOLOGY	RELAY CONTROL SYSTERM+MICRO COMPUTER PROGRAMED CONTROL
LED DISPLAY	INFORMATION	INPUT VOLTAGE/OUTPUT VOLTAGE/LOAD USAGE/TIME DELAY/NORMAL WORKING/PROTECTION
	PROTECTION	Over Voltage		Output Voltage≥243±4v
		Low Voltage		Output Voltage≤188v±4v
		Over Loading		More Than 120%
		Over Temperture		120°C±10°C
		Delay Time		Long time(255 seconds)/Short time(5 seconds)
		Creepage
	Language	English/Russia/Chinese
Input Voltage	AC150-270V(A TYPE);AC135-AC270V(B TYPE);AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)
Output Voltage	220+/-10% adjustable
Frequency	50Hz/60Hz
Phase	Single phase
Efficency	≥90%
Ambient Temperature	-15°C-45°C
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	500VA		800VA	1000VA	1500VA	2000VA
Packing size(cm)	47.528.541.5		47.528.541.5	47.528.541.5	47.528.541.5	47.528.541.5
Packing (pcs)	6		6	6	6	6
G.M(KGS)	17.00		18.66	20.56	21.85	27.35
