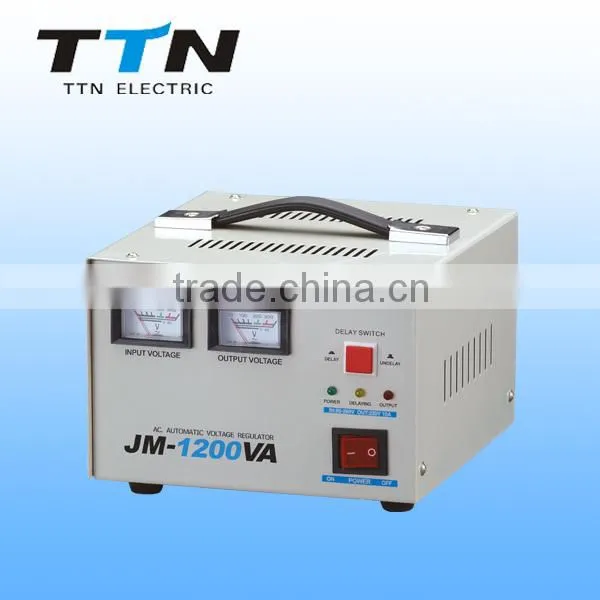

Help CenterJM1200VA-10KVA Relay Control Automatic Voltage Regulator Series
Related Products
-
Automatic Voltage StabilizerUS$ 12.35 - 27.95MOQ: 500 Pieces -
Voltage Stabilizer 20KVAUS$ 205 - 725MOQ: 50 Pieces
-
6KVA Automatic Voltage StabilizerUS$ 205 - 725MOQ: 50 Pieces
-
Automatic Voltage Stabilizer for 380VUS$ 205 - 725MOQ: 50 Pieces
-
SVC500VA-8KVA Servo Motor Control Voltage StabilizerUS$ 15.35 - 135MOQ: 200 Pieces
Specifications
Use for equipment:Computer
Test equipment
Light system
MODEL |
JM-1200VA |
JM-2400VA |
JM-35000VA |
JM-5500VA |
JM-8000VA |
||||
JM-10000VA |
|
|
|
|
|||||
TECHNOLOGY |
RELAY CONTROL |
||||||||
|
METER DISPLAY |
INFORMATION |
INPUT VOLTAGE/OUPUT VOLTAGE |
|||||||
|
LIGHT |
Green |
Normal working |
|||||||
Red |
Over-voltage |
Output Voltage≥243±4v |
|||||||
Yellow |
Delay time |
Long time (3-8m)/short times 5s |
|||||||
Over Temperture |
120°C±10°C |
||||||||
Language |
English/Russia/Chinese |
||||||||
Input Voltage |
AC150-270V(A TYPE);AC135V-AC270V(B TYPE);AC105-AC270V(C TYPE) |
||||||||
Output Voltage |
220V+/-10% adjustable |
||||||||
Frequency |
50Hz/60Hz |
||||||||
Phase |
Single phase |
||||||||
Efficency |
≥90% |
||||||||
Ambient Temperature |
-15°C-45°C |
||||||||
Relative humidity |
<95% |
||||||||
Waveform distortion |
No additional wave from distortion |
||||||||
Insulation resistance |
Normally more than 2MΩ |
||||||||
Power |
1200VA |
2400VA |
3500VA |
5500VA |
8000VA |
||||
Packing size(cm) |
50.2*26.0*34.5 |
50.2*26.0*34.5 |
36*29.7*42.5 |
36*29.7*42.5 |
38.3*37.5*54.5 |
||||
Packing (pcs) |
4 |
4 |
2 |
2 |
2 |
||||
G.M(KGS) |
12.6 |
15.6 |
18.25 |
22.50 |
26.22 |
||||
Power |
10000VA |
|
|
|
|
||||
Packing size(cm) |
38.3*37.5*54.5 |
|
|
|
|
||||
Packing (pcs) |
2 |
|
|
|
|
||||
G.M(KGS) |
37.40 |
|
|
|
|
||||
