Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w

Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w

Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-1
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-2
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-3
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-4
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-5
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w thumbnail-6
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-1
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-2
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-3
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-4

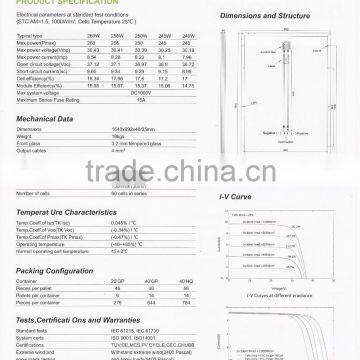

Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-5
Polycrystalline Silicon Material Polycrystalline Solar Panel Black 250w photo-6
US$ 0.45 - 0.99 MOQ: 1000 Watts
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TTN
Model Number:
TTN-SP
Contact Supplier Request Quote Chat Now
Zhejiang TTN Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Nningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TTN
Model Number TTN-SP
Specification Normal
Application Home
Output Voltage (V) 17.2V-35.4V
Load Power (W) 4W-200W
Solar Power (W) 5W-250W
Work Time (h) 24

Polycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250w



Monocrystalline Silicon Solar panels

Model Maximum power(Pm) Open circuit voltage(Voc) Short circuit current(Isc) Optimum operating voltage(Vmp) Optimum operating current(Imp) Module Dimension H*W*D(mm) Gross weight(KG) MOQ(W) 20FT 40FT Delivery Date
TB-250W-M 250W 43.4V 7.26A 35.4V 7.06A 1954*990*50 32.00 1000w 174PCS 360PCS 15 days
TB-230W-M 230W 43.4V 7.26A 35.4V 7.06A 1954*990*50 32.00 1000w 174PCS 360PCS 15 days
TB-200W-M 200W 33.0V 8.19A 26.4V 7.58A 1490*990*50 28.00 1000w 298PCS 634PCS 15 days
TB-175W-M 175W 43.8V 5.21A 35.8V 4.91A 1330*995*50 23.00 1000w 335PCS 721PCS 15 days
TB-160W-M 160W 42.8V 4.58A 35.2V 4.26A 1330*995*50 19.00 1000w 340PCS 726PCS 15 days
TB-150W-M 150W 42.8V 4.58A 35.2V 4.26A 1330*995*50 16.00 1000w 340PCS 726PCS 15 days
TB-130W-M 130W 21.6V 8.08A 18V 7.22A 1480*680*35 12.00 1000w 700PCS 1600PCS 15 days
TB-120W-M 120W 21.6V 6.67A 18V 7.33A 1471*666*35 12.00 1000w 700PCS 1600PCS 15 days
TB-100W-M 100W 21.6V 6.2A 18V 5.56A 995*808*35 11.50 1000w 786PCS 1690PCS 15 days
TB-80W-M 80W 21.6V 4.76A 18V 4.44A 1206*535*35 7.50 1000w 980PCS 2100PCS 15 days
TB-70W-M 70W 21.24V 4.17A 18V 4.17A 1190*540*36 7.50 1000w 1000PCS 2100PCS 15 days
TB-50W-M 50W 21.6V 3.04A 18V 2.78A 765*535*35 7.00 1000w 1400PCS 2100PCS 15 days
TB-40W-M 40W 21.6V 2.4A 18V 2.22A 655*535*25 4.50 1000w 2520PCS 5400PCS 15 days
TB-30W-M 30W 21.6V 1.82A 18V 1.67A 666*420*25 4.00 1000w 2800PCS 5700PCS 15 days
TB-20W-M 20W 21.6V 1.23A 18V 1.11A 535*345*25 2.80 1000w 3200PCS 7100PCS 15 days
TB-15W-M 15W 21.6V 0.95A 17.2V 0.88A 500*400*25 2.50 1000w 3250PCS 7150PCS 15 days
TB-10W-M 10W 21.6V 0.63A 17.2V 0.58A 340*290*23 0.70 1000w 3300PCS 7200PCS 15 days
TB-5W-M 5W 21.6V 0.31A 17.2V 0.28A 285*195*25 0.70 1000w 3300PCS 7200PCS 15 days













Polycrystalline Silicon Solar Panels



Model Maximum power(Pm) Open circuit voltage(Voc) Short circuit current(Isc) Optimum operating voltage(Vmp) Optimum operating current(Imp) Module Dimension H*W*D(mm)   MOQ(W) 20FT 40FT Delivery Date
TB-230W-P 250W 36.4V 8.2A 29.5V 7.8A 1646*995*50 32.00 1000w 320PCS 700PCS 15days
TB-230W-P 230W 36.4V 8.2A 29.5V 7.8A 1646*995*50 32.00 1000w 320PCS 700PCS 15days
TB-200W-P 200W 36V 7.06A 29.5V 6.78A 1646*995*50 28.00 1000w 320PCS 700PCS 15days
TB-175W-P 175W 43.8V 5.21A 35.8V 4.91A 1330*995*50 23.00 1000w 392PCS 870PCS 15days
TB-160W-P 160W 42.8V 4.58A 35.2V 4.26A 1330*995*50 19.00 1000w 392PCS 870PCS 15days
TB-150W-P 150W 42.8V 4.58A 35.2V 4.26A 1330*995*50 16.00 1000w 392PCS 870PCS 15days
TB-130W-P 130W 21.6V 8.08A 18V 7.22A 1471*666*35 12.00 1000w 700PCS 1600PCS 15days
TB-120W-P 120W 21.6V 6.67A 18V 7.33A 1471*666*35 12.00 1000w 700PCS 1600PCS 15 days
TB-100W-P 100W 21.6V 6.05A 18V 5.55A 1206*666*35 11.50 1000w 786PCS 1690PCS 15days
TB-80W-P 80W 21.6V 4.76A 18V 4.44A 1206*535*35 7.50 1000w 980PCS 2100PCS 15days
TB-70W-P 70W 21.24V 4.17A 18V 4.17A 1190*540*36 7.50 1000w 1000PCS 2100PCS 15 days
TB-50W-P 50W 21.6V 3.04A 18V 2.78A 765*535*35 7.00 1000w 1400PCS 2100PCS 15days
TB-40W-P 40W 21.6V 2.4A 18V 2.22A 655*535*25 4.50 1000w 2800PCS 5700PCS 15days
TB-30W-P 30W 21.6V 1.82A 18V 1.67A 666*420*25 4.00 1000w 2800PCS 5700PCS 15days
TB-20W-P 20W 21.6V 1.27A 17.4V 1.15A 535*345*25 2.80 1000w 3200PCS 7100PCS 15days
TB-15W-P 15W 21.6V 0.95A 17.4V 0.88A 500*400*25 2.50 1000w 3250PCS 7150PCS 15days
TB-10W-P 10W 21.6V 0.63A 17.4V 0.63A 340*285*23 0.70 1000w 3290PCS 7190PCS 15days
TB-5W-P 5W 21.6V 0.31A 17.4V 0.28A 285*195*25 0.70 1000w 3300PCS 7200PCS 15days

Remarks:                                                                                                                                                                                                                                                                                  Eff(%) above 18.0 ,Operating temperature:- 40 to + 85 ℃
Maximum system voltage:>90W DC1000; ≤90W DC 600V
Irrandiance 1000W/ m2, Temperature 25℃, AM=1.5                                                                                                                                                                                                   Warranty:Pm is not less than 90% in 10years and 80% in 25 years                                                                                                                                                                                                     1)Price terms:unit price is to be reduced when order quantity is up to containers.
2)Certification:CE;ROHS;TUV;FCC;ISO
3) Packing:standard export packing
4)Product warranty: products according to specified industrial and national standards.
5) Payment terms: by T/T,Western Union,Money Gram
6)Delivery time:14days
7) Samples availability/Special Price: to be provided with some Special Price charge.
8) We have the model 5W~300W mono and poly solar panel,if the model you want is

not in the sheet,pls contact us to know more.



 Polycrystalline Silicon Material polycrystalline solar panel black 250w





Polycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250w

 Polycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250wPolycrystalline Silicon Material polycrystalline solar panel black 250w

CONTACT PERSON:

Ms. Kenis Dai
International Trade Sales
Zhejiang TTN Electric Co., Ltd
Wechat id: stabilizer08     QQ:1102442287
Mob:0086-13857739393    Skype:qiannandai150
Tel:0086-577-56968986     Fax:0086-577-86272969
Email:sale8(at)  Web:
ADD: No. 28 Chuangda Road, Lucheng Light Industrial Zone, Wenzhou, China.
creating the stable electric power for the world

VOLTAGE STABILIZER, UPS, INVERTER AND SOLAR PRODUCTS.
