Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > High Efficiency 10KW Solar Panel System

High Efficiency 10KW Solar Panel System

Zhejiang TTN Electric Co., Ltd.

High Efficiency 10KW Solar Panel System thumbnail-2

High Efficiency 10KW Solar Panel System thumbnail-3

High Efficiency 10KW Solar Panel System thumbnail-4

High Efficiency 10KW Solar Panel System thumbnail-5

High Efficiency 10KW Solar Panel System photo-1

High Efficiency 10KW Solar Panel System photo-2

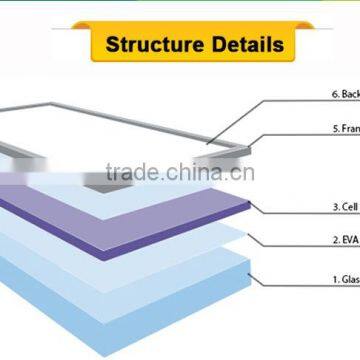

High Efficiency 10KW Solar Panel System photo-3

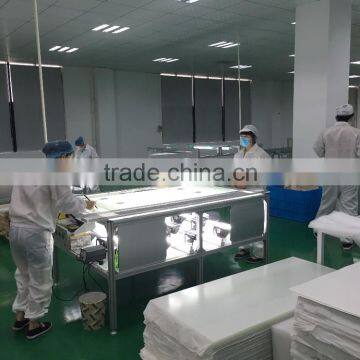

High Efficiency 10KW Solar Panel System photo-4

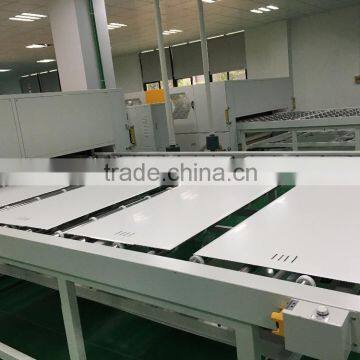

High Efficiency 10KW Solar Panel System photo-5

US$ 0.45 - 0.99 MOQ: 1000 Watts

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

TTN

Model Number:

TTN-SP

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Nningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name TTN

Model Number TTN-SP

Specification Normal

Application Home

Output Voltage (V) 17.2V-35.4V

Load Power (W) 4W-200W

Solar Power (W) 5W-250W

Work Time (h) 24

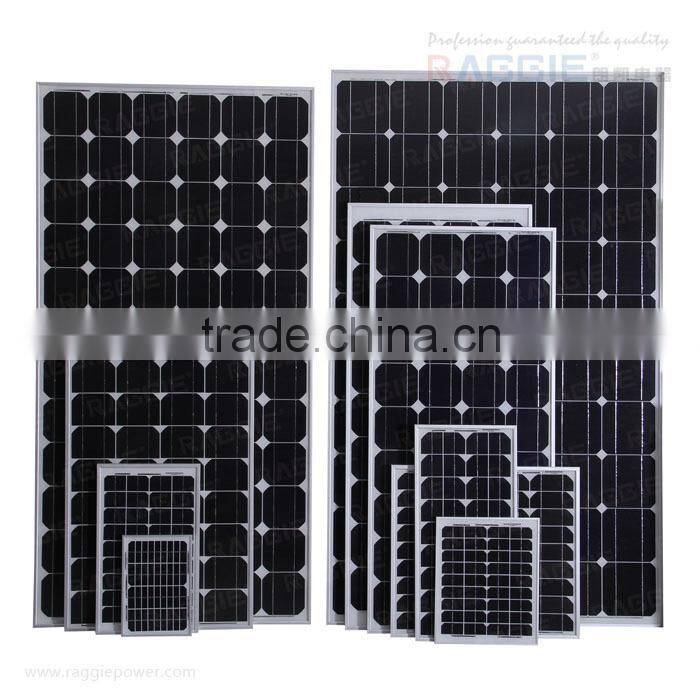

Monocrystalline Silicon Solar panels

Model	Maximum power(Pm)	Open circuit voltage(Voc)	Short circuit current(Isc)	Optimum operating voltage(Vmp)	Optimum operating current(Imp)	Module Dimension HWD(mm)	Gross weight(KG)	MOQ(W)	20FT	40FT	Delivery Date
TB-250W-M	250W	43.4V	7.26A	35.4V	7.06A	195499050	32.00	1000w	174PCS	360PCS	15 days
TB-230W-M	230W	43.4V	7.26A	35.4V	7.06A	195499050	32.00	1000w	174PCS	360PCS	15 days
TB-200W-M	200W	33.0V	8.19A	26.4V	7.58A	149099050	28.00	1000w	298PCS	634PCS	15 days
TB-175W-M	175W	43.8V	5.21A	35.8V	4.91A	133099550	23.00	1000w	335PCS	721PCS	15 days
TB-160W-M	160W	42.8V	4.58A	35.2V	4.26A	133099550	19.00	1000w	340PCS	726PCS	15 days
TB-150W-M	150W	42.8V	4.58A	35.2V	4.26A	133099550	16.00	1000w	340PCS	726PCS	15 days
TB-130W-M	130W	21.6V	8.08A	18V	7.22A	148068035	12.00	1000w	700PCS	1600PCS	15 days
TB-120W-M	120W	21.6V	6.67A	18V	7.33A	147166635	12.00	1000w	700PCS	1600PCS	15 days
TB-100W-M	100W	21.6V	6.2A	18V	5.56A	99580835	11.50	1000w	786PCS	1690PCS	15 days
TB-80W-M	80W	21.6V	4.76A	18V	4.44A	120653535	7.50	1000w	980PCS	2100PCS	15 days
TB-70W-M	70W	21.24V	4.17A	18V	4.17A	119054036	7.50	1000w	1000PCS	2100PCS	15 days
TB-50W-M	50W	21.6V	3.04A	18V	2.78A	76553535	7.00	1000w	1400PCS	2100PCS	15 days
TB-40W-M	40W	21.6V	2.4A	18V	2.22A	65553525	4.50	1000w	2520PCS	5400PCS	15 days
TB-30W-M	30W	21.6V	1.82A	18V	1.67A	66642025	4.00	1000w	2800PCS	5700PCS	15 days
TB-20W-M	20W	21.6V	1.23A	18V	1.11A	53534525	2.80	1000w	3200PCS	7100PCS	15 days
TB-15W-M	15W	21.6V	0.95A	17.2V	0.88A	50040025	2.50	1000w	3250PCS	7150PCS	15 days
TB-10W-M	10W	21.6V	0.63A	17.2V	0.58A	34029023	0.70	1000w	3300PCS	7200PCS	15 days
TB-5W-M	5W	21.6V	0.31A	17.2V	0.28A	28519525	0.70	1000w	3300PCS	7200PCS	15 days

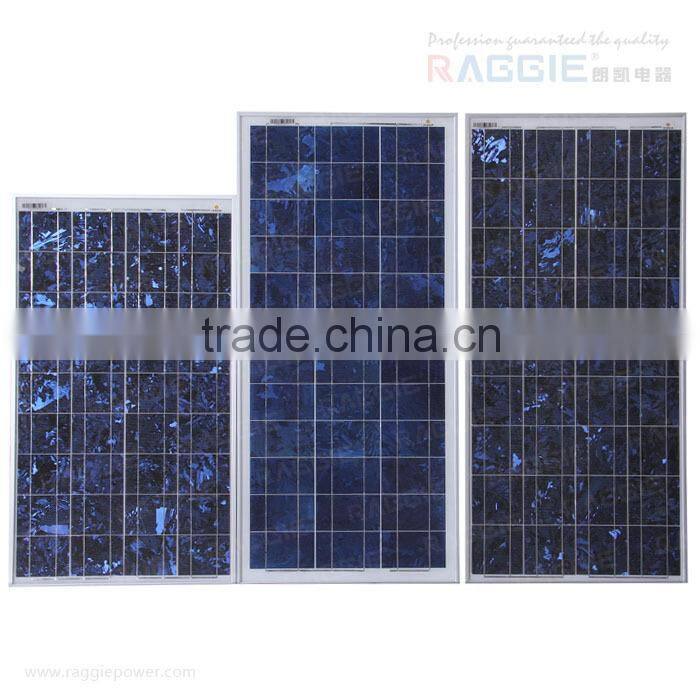

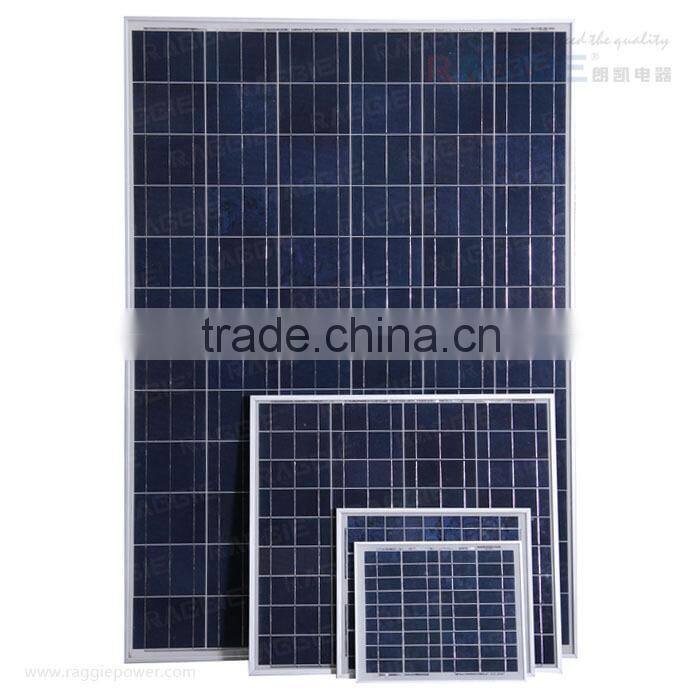

Polycrystalline Silicon Solar Panels

Model	Maximum power(Pm)	Open circuit voltage(Voc)	Short circuit current(Isc)	Optimum operating voltage(Vmp)	Optimum operating current(Imp)	Module Dimension HWD(mm)		MOQ(W)	20FT	40FT	Delivery Date
TB-230W-P	250W	36.4V	8.2A	29.5V	7.8A	164699550	32.00	1000w	320PCS	700PCS	15days
TB-230W-P	230W	36.4V	8.2A	29.5V	7.8A	164699550	32.00	1000w	320PCS	700PCS	15days
TB-200W-P	200W	36V	7.06A	29.5V	6.78A	164699550	28.00	1000w	320PCS	700PCS	15days
TB-175W-P	175W	43.8V	5.21A	35.8V	4.91A	133099550	23.00	1000w	392PCS	870PCS	15days
TB-160W-P	160W	42.8V	4.58A	35.2V	4.26A	133099550	19.00	1000w	392PCS	870PCS	15days
TB-150W-P	150W	42.8V	4.58A	35.2V	4.26A	133099550	16.00	1000w	392PCS	870PCS	15days
TB-130W-P	130W	21.6V	8.08A	18V	7.22A	147166635	12.00	1000w	700PCS	1600PCS	15days
TB-120W-P	120W	21.6V	6.67A	18V	7.33A	147166635	12.00	1000w	700PCS	1600PCS	15 days
TB-100W-P	100W	21.6V	6.05A	18V	5.55A	120666635	11.50	1000w	786PCS	1690PCS	15days
TB-80W-P	80W	21.6V	4.76A	18V	4.44A	120653535	7.50	1000w	980PCS	2100PCS	15days
TB-70W-P	70W	21.24V	4.17A	18V	4.17A	119054036	7.50	1000w	1000PCS	2100PCS	15 days
TB-50W-P	50W	21.6V	3.04A	18V	2.78A	76553535	7.00	1000w	1400PCS	2100PCS	15days
TB-40W-P	40W	21.6V	2.4A	18V	2.22A	65553525	4.50	1000w	2800PCS	5700PCS	15days
TB-30W-P	30W	21.6V	1.82A	18V	1.67A	66642025	4.00	1000w	2800PCS	5700PCS	15days
TB-20W-P	20W	21.6V	1.27A	17.4V	1.15A	53534525	2.80	1000w	3200PCS	7100PCS	15days
TB-15W-P	15W	21.6V	0.95A	17.4V	0.88A	50040025	2.50	1000w	3250PCS	7150PCS	15days
TB-10W-P	10W	21.6V	0.63A	17.4V	0.63A	34028523	0.70	1000w	3290PCS	7190PCS	15days
TB-5W-P	5W	21.6V	0.31A	17.4V	0.28A	28519525	0.70	1000w	3300PCS	7200PCS	15days
Remarks: Eff(%) above 18.0 ,Operating temperature:- 40 to + 85 ℃ Maximum system voltage:>90W DC1000; ≤90W DC 600V Irrandiance 1000W/ m2, Temperature 25℃, AM=1.5 Warranty:Pm is not less than 90% in 10years and 80% in 25 years 1)Price terms:unit price is to be reduced when order quantity is up to containers. 2)Certification:CE;ROHS;TUV;FCC;ISO 3) Packing:standard export packing 4)Product warranty: products according to specified industrial and national standards. 5) Payment terms: by T/T,Western Union,Money Gram 6)Delivery time:14days 7) Samples availability/Special Price: to be provided with some Special Price charge. 8) We have the model 5W~300W mono and poly solar panel,if the model you want is not in the sheet,pls contact us to know more.
