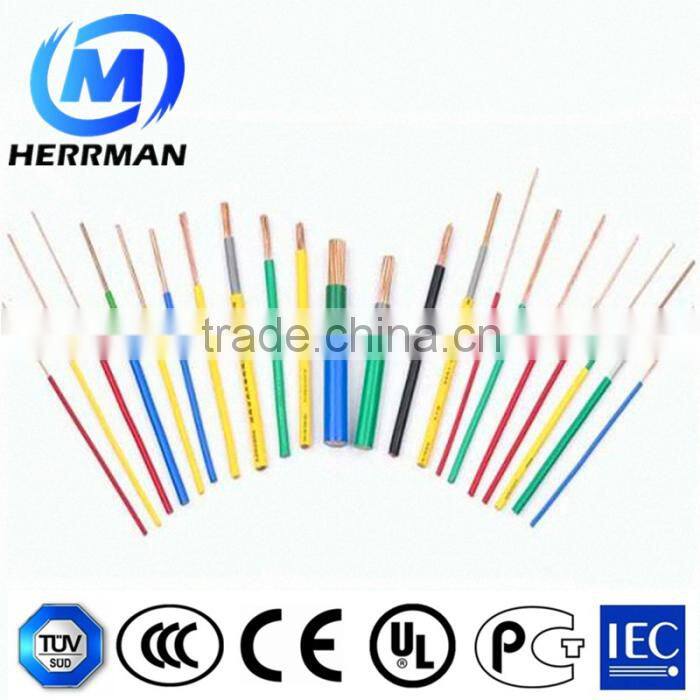

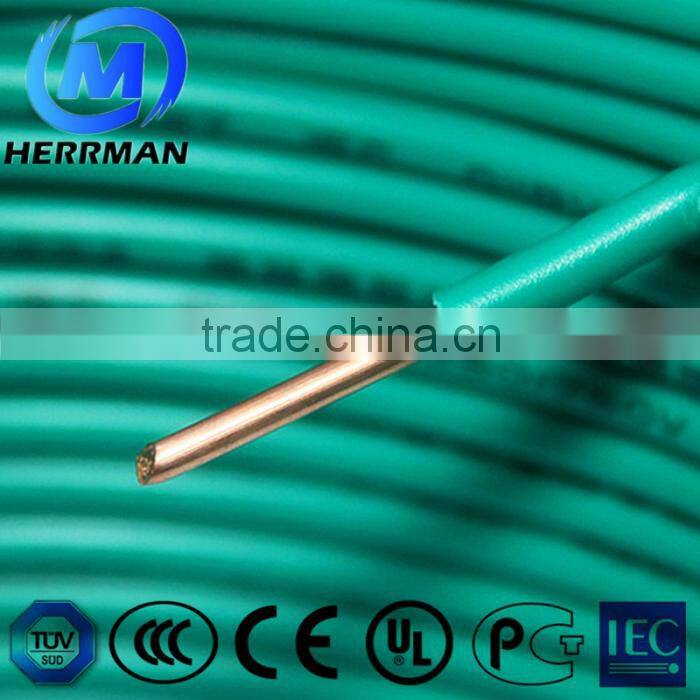

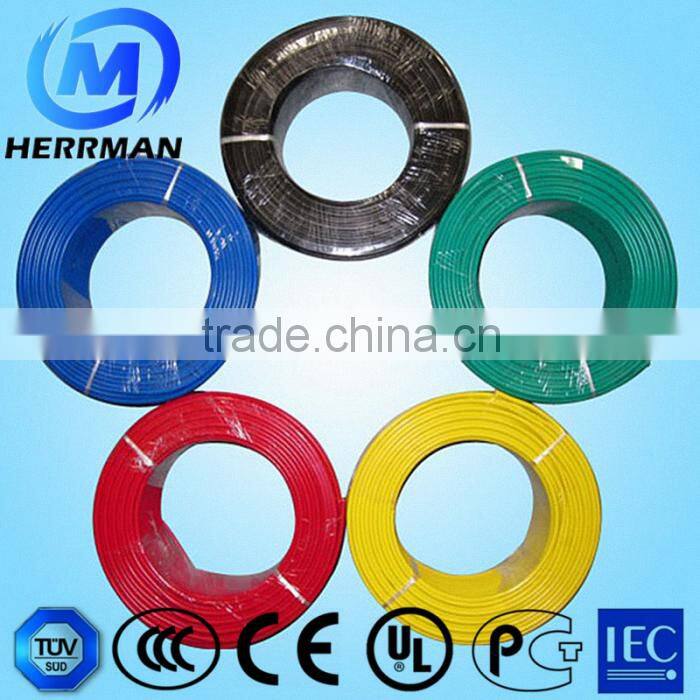

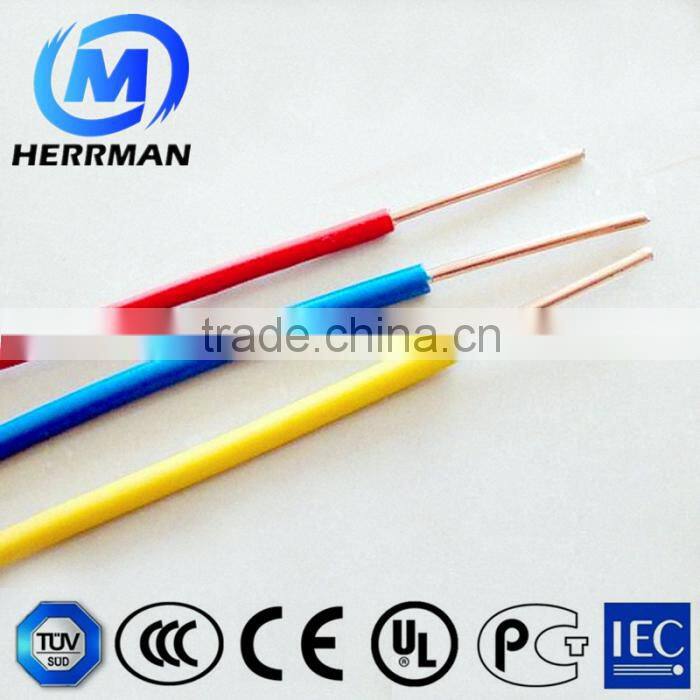

Round / Flat BV Wire Flexible Electric Wire

 Round / Flat BV Wire Flexible Electric Wire

1. Standard

GB5023.11997.JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC227

2. Application

The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.

3. Voltage U₀/U

450/750V, 300/500V, 300/300V

4. Usage Temperature

Max. permissible continuous operating temperature is 75℃, installation temperature is not lower than 0℃.

5. Model and Name

Model                 Name

BV                      Copper core PVC insulation wire

BLV                    Aluminium core PVC insulation wire

BVR                   Copper core PVC insulation flexible wire

BVV                   Copper core PVC Insulation PVC sheath round wire

BVVB                 Copper core PVC insulation PVC sheath flat wire

BLVVB               Alminium core PVC insulation PVC sheath flat wire

BV-105              Copper core heat-resistance 105 ℃ PVC insulation
