Specifications

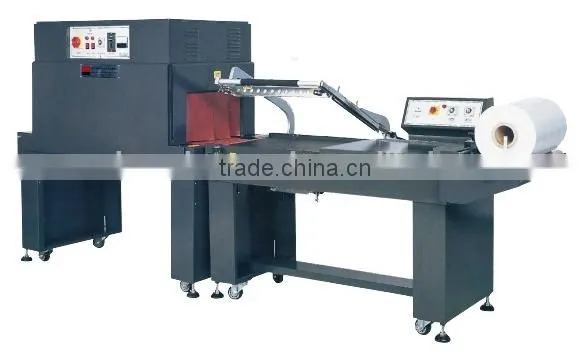

Low cost semi-auto L Bar Sealing Machine to finish sealing & shrinking job at the same time, speed 250 packs per hour.Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
- Incorporated by one L Type Sealing Machine and one Shrink Tunnel
- Rugged contruction for low maintenance
- Caster for high mobility and re-positioning
- Very easy to use and operator friendly interface
- Both machines can be separated and work alone when necessary
- One time investment for 2 machines offering 3 packaging solutions in one step - film sealing only, shrinking only or sealing & shrinking
Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
TECHNICAL DATA

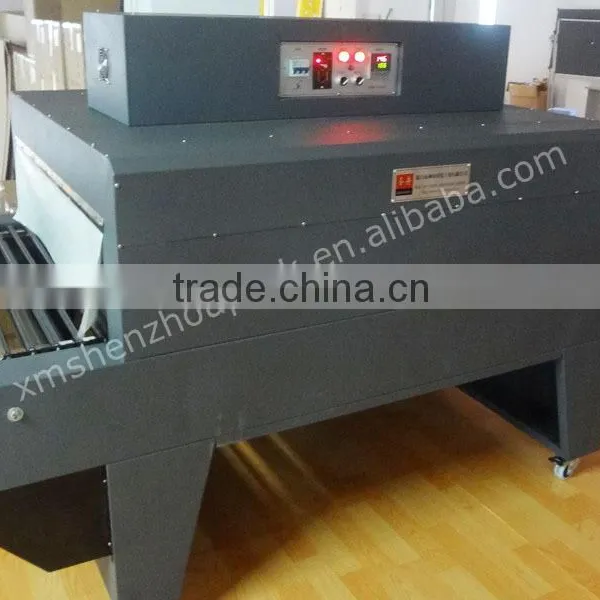

Shrink Tunnel
Model No. |
SZR ST4525 |
Chamber Size |
L700 x W450 x H250 MM |
Package Size |
Max. W400 x H200 MM |
Temperature |
Max. 200 oC adjustable |
Conveyor Speed |
Max. 10 M/ MIN |
Conveyor Load |
Max. 15 KGS |
Power Supply |
380 V, 50 HZ, 3 PH |
Power Consumption |
4.5 KW |
Net Weight |
165 KGS |
Overall Size |
L1000 x W663 x H1495 MM |
Shipping Size |
L1100 x W700 x H1520 MM |

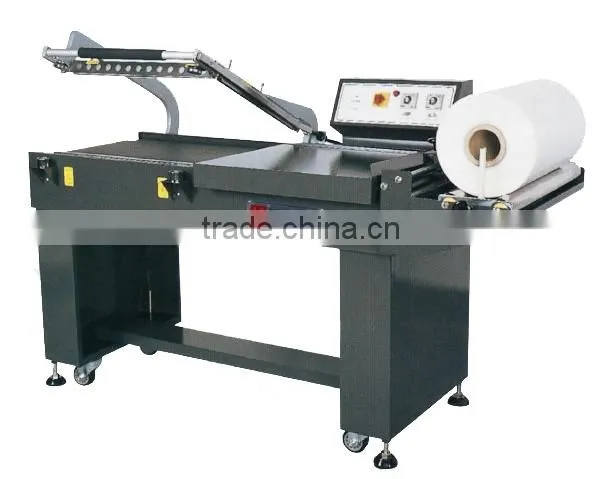

L Type Sealing Machine
Model No. |
SZ LS5545T |
Sealing Size |
Max. L550 x W450 MM adjustable |
Packaging Size |
Max. L450 x W400 x H250 MM adjustable |
Cycle Time |
15-20/ MIN |
Power Supply |
220 V, 50 HZ |
Power Consumption |
1.2 KW |
Air Consumption |
0.6 MPA |
Overall Size |
L1600 x W775 x H1000 MM |
Net Weight |
130 KGS |
Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
Shenzhou Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
Semi Automatic/Semi-automatic L Bar Sealing Shrink Packaging Machine
