Specifications
Beverage Sleeve Wrapping MachineIdeal cost-effective solution for Bottle Water, Beverage, Can Food, With or Without Tray.

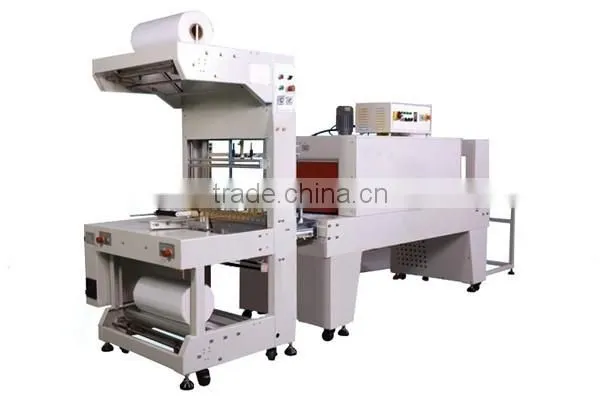

Semi Automatic Beverage Bottle Sleeve Wrapping Machine
Model no. SZR SW5038B40A
- Shenzhou Pack supplies the cost-effective Semi Automatic Sleeve Wrapper combination tunnel range for applications up to 10 products per minute.
- With a semi automatic sleeve sealer the product is placed on the infeed by hand. Once the product, or collation of products, is positioned in front of the pneumatic infeed pusher, a button is pressed which starts the wrapping cycle. The product is pushed through the web of film and the sealing head then automatically cuts and seals the piece of film around the product.
- After sealing, the wrapped product is automatically conveyed into the integrated heat shrink tunnel. By having the tunnel combined with the sleeve wrapper, the machines footprint is kept to a minimum and the whole system is still manoeuvrable to suit the needs of production.
- This model range is available with film widths of 450, 650, 850, 1250, and 2450 mm to a large range of products.
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
| Model No. | SZR SW5038B40A |
| Efficiency | 5-8 Packs/ Min |
| Package Size | Max. L450 x W270 x H350 MM |
| Conveyor Load | Max. 30 KGS |
| Power Supply | 220 V |
| Power Consumption | 1.8 KW |
| Overall Size | L1020 x W830 x H1980 MM |
Shrink Tunnel
| Package Size | Max. W450 x H350 MM |
| Tunnel Size | L1500 x W500 x H400 MM |
| Conveyor Load | Max. 50 KGS |
| Power Supply | 20 KW |
| Power Consumption | 380 V |
| Overall Size | L2500 x W820 x H1680 MM |
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
Shenzhou Semi Automatic Beverage Bottle Sleeve Wrapping Machine
Semi Automatic Beverage Bottle Sleeve Wrapping Machine
beverage bottle sleeve wrapping mahine/bottle sleeve wrapping machine
beverage sleeve wrapping machine
