Factory Manufacturer Vmc 850 Vertical Type Cnc Machining Center

Machine Type

Unit

VMC850(hard rail)

Worktable

Worktable(length×width)

mm

1050×500

Maximum load of table

kg

650

T-slot(number of slot × slot width × pitch)

mm

5-18×80

Triaxial itinerary

Travel for X/Y/Z axes

mm

800/500/600

Distance from spindle nose to table surface

mm

150-750

Distance from spindle center to column guide surface

mm

620

Feed system

CNC system

Mitsubishi M70/FANUC-Oi MD

Rapid shift of axes of X/Y/Z

m/min

16

Maximum cutting feed speed

m/min

7

Automatic tool transform system(CNC milling without)

Standard tool quality

bundle

Bamboo hat type 20/Disc type 24

The largest diameter cutter knife/length

mm

Φ80/300

Tool exchanging manner

Air-operated

Average tool exchanging time

sec

Bamboo hat type:5s/Disc type: 2.5s

Precision

Positioning accuracy

mm

0.008

Accuracy of repeated positioning

Mm

0.005

Spindle system

Spindle speed

r.p.m

8000

Spindle specifications(model/installation diameter)

BT40/Φ150

Drive manner of spindle

Belt drive

Motor power of spindle

kw

11/15

Air pressure

Requirements for air compressing

Kg/cm²

≥6

Air pressure flux

m³/min

≥0.3

Machine specifications

Integrated weight(kg)

kg

5200

Overall dimension(weight×width×height)

mm

2700×2300×2600

Travel No.

Name

Brand Habitat

Remarks

1

CNC System

MITSUBISHI/FANUC(Japan)

M70

2

Drive motor

MITSUBISHI/FANUC(Japan)

3

Spindle motor

MITSUBISHI/FANUC(Japan)

4

Relay

OMRON(Germany)

5

Contactor

SCHNEIDER(France)

6

Breaker

SIEMENS(Germany)

7

Transformer

JUCHE(China)

8

Switch power supply

MEAN WELL(Taiwan)

9

Electron hand wheel

Japan

10

Water tank motor

China

Travel No.

Name

Brand Habitat

Remarks

1

Spindle

PUSON(Taiwan )

8000r/ min

2

Coupling shaft

Germany R+W

3

Pressurizes vat

HAOCHENG or SHENGYU(Taiwan )

4

Lead screw of three axles

HIWIN C3(Taiwan)

5

Lubricant oil road

HERG/BIJUR

6

Axletree

NSK or NACHI (Japan )

(P level of high accurate avoid matching axletrees)

7

20 bamboo hat style or 24 manipulator tool store

8

Accurate round nut

Taiwan

9

Whole  machine bolt

Taiwan

(High intensity 12.9 grade)

Company Brief

Nantong sunway technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.

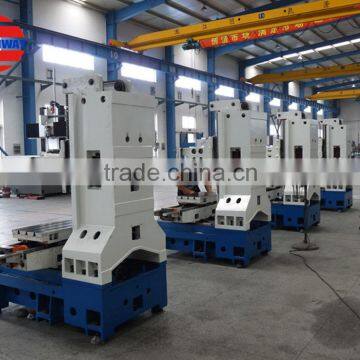

Assembly shop of vertical machining center

We follow strict assembly technique after we check each parts are eligible.

Assembly shop of cnc engraving and milling machine

Complete engraving and milling machine

After finishing leave factory testing,we will use waterproof and anti extrusion to protect the machine’s safety during transportation.

Small Gantry milling machine

We could supply OEM service and custom design service.

Electrical discharge machine which will be exported to SAMSUNG,Korea

Our electrical discharge machine have exported to SAMSUNG(Korea),

MAKINO(Japan),Brazil,Argentina,Mexico,Turkey.All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”.

Metal plate

Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.

Casting

Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.

Gantry machining center

Using famouse brand gantry machining center,is the key point to guarantee the precisio and surface finishment of machining face.

Detection of assembling

In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.

Precision detection

Laser inspection equipment

Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
