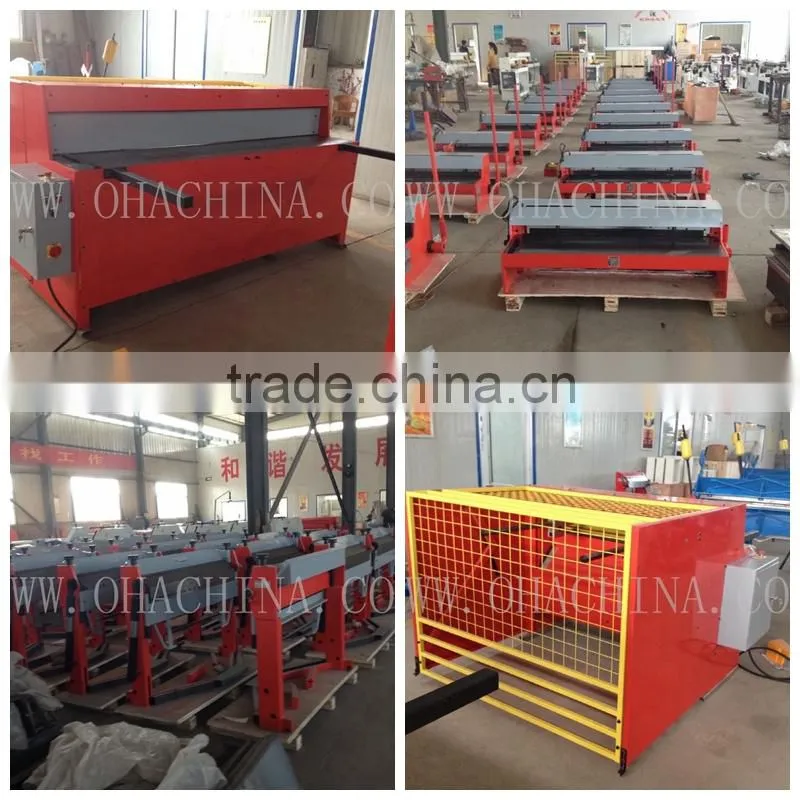

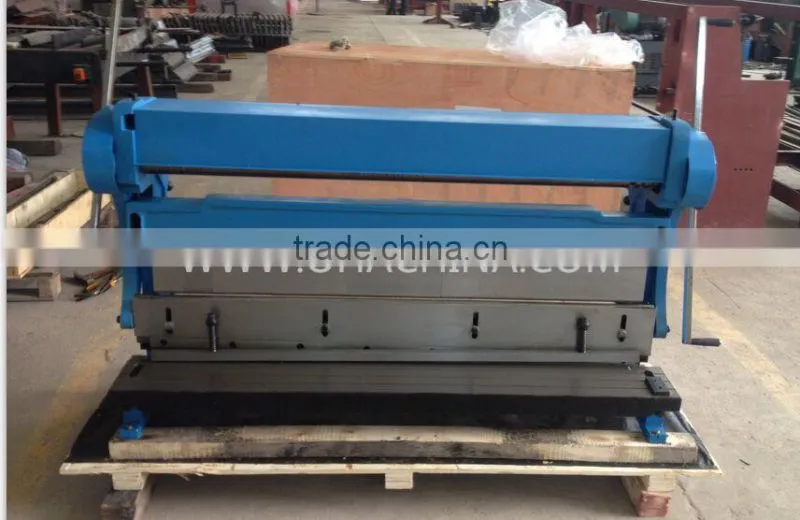

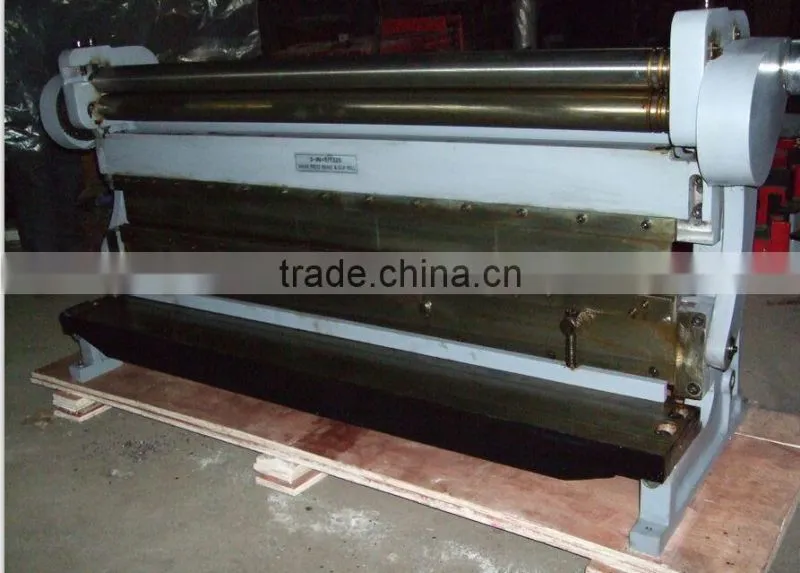

OHA Brand E3-in-1/1320 Electric combined Shear,Brake and Roll machine
| Color | Any color is available Combination Shear, Brake and Roll Machine |
| Logo | Customized Logo for Combination Shear, Brake and Roll Machine |
| MOQ | Small MOQ,1 SET for Best-selling Combination Shear, Brake and Roll Machine |
| Delivery Time |
(1) 30-60 days –If you want to customize your request (2) 25 days – For our Standard |
| OEM Accepted | Yes |
| Certification available | Yes |
| Production Capacity | 500/sets Best-selling press brake Per Month |
| Payment Term | L/C, T/T, D/A, WESTERN UNION, MONEY GRAM |
1.Removable male dies with female dies
2.Back gauge standard equipment
3.With 2-position handle
4.Shearing mild steel or equipment
5.Press brake-bends box and pan works
6.Sectional fingers allow box and pan works
7.Slip roll provided with forming grooves

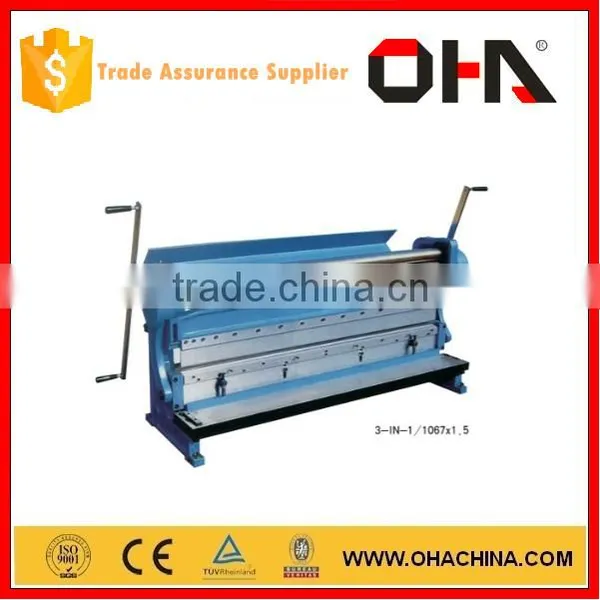

| Model | 3-IN-1/1016 | 3-IN-1/1067 | 3-IN-1/1320 | 3-IN-1/1067x1.5 | 3-IN-1/1320x1.5 |
| Bed Width (mm) | 1016 | 1067 | 1320 | 1067 | 1320 |
| Max .shearing machine (mm) | 1 | 1 | 1 | 1.5 | 1.5 |
| Max.Bending machine (mm) | 1 | 1 | 1 | 1.5 | 1.5 |
| Max. Bending angle ( ° ) | 90 | 90 | 90 | 90 | 90 |
| Max.Rolling thickness (mm) | 1 | 1 | 1 | 1.5 | 1.5 |
| Min.Rolling dia (mm) | 40 | 42 | 50 | 60 | 60 |
| Packing size (cm) | 135x45x72 | 139x54x78 | 150x54x78 | 150x59x93 | 179x59x93 |
| N.W/G.W. (kg) | 195/212 | 276/297 | 349/377 | 390/440 | 470/530 |
Advantage
1. Competitive price: It is can meet your budget and best-selling business very well.
2. OEM Accepted: We can produce any your request design.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system. Good reputation in the market.
5. Fast & Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service. |
Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met |
Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you! |
Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers. |
Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money. |
General Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.

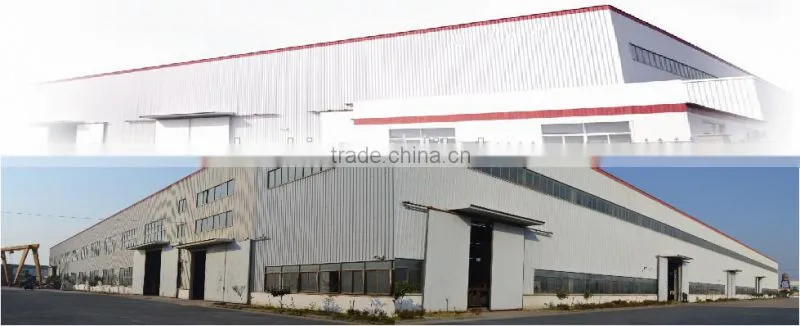

OHA INDUSTRY & TRADE (SHANGHAI) CO., LTD. is a leading Chinese sheet metal processing machinery and construction machinery exporter and importer, located in the Shanghai Free trade zone.
We faithfully enforce ISO9001:2000 and CE,SGS, BV certificate to guarantee that every product meets international standards. With a professional R&D team, skillful workers and a complete quality control system, we won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you. Please feel free to contact us for more information about our products and services.
Check below for more information on placing an order
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, type, payment term etc. |
3. OHA sales send the Proforma Invoice with OHA seal. |
4. Customers make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the according to your request or our standard, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in. Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection. |
8. Clients make payment for balance and OHA ship the goods. Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them. |
10. Feedback to OHA about Quality, Service, Market Feedback & Suggestion. And we can do better. |
