Home > Industrial Equipment & Components > Welding Equipment > Seam Welder > INT'L "OHA" Brand Seam Welder FN-55 CE Standard

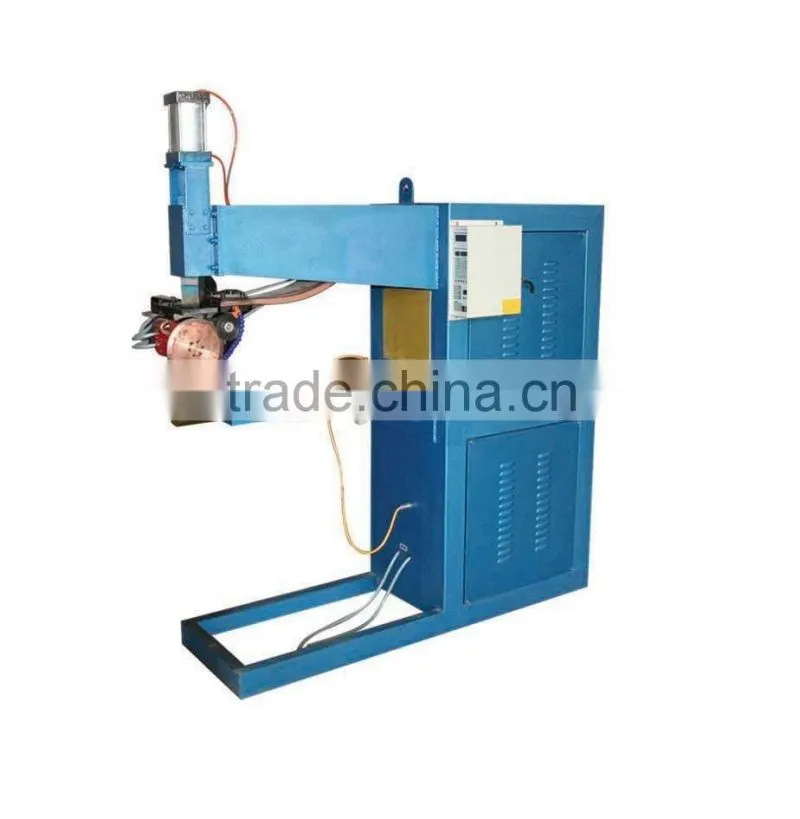

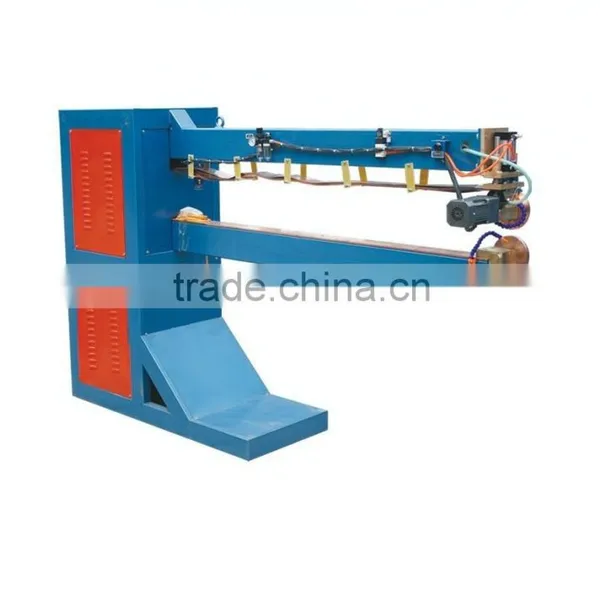

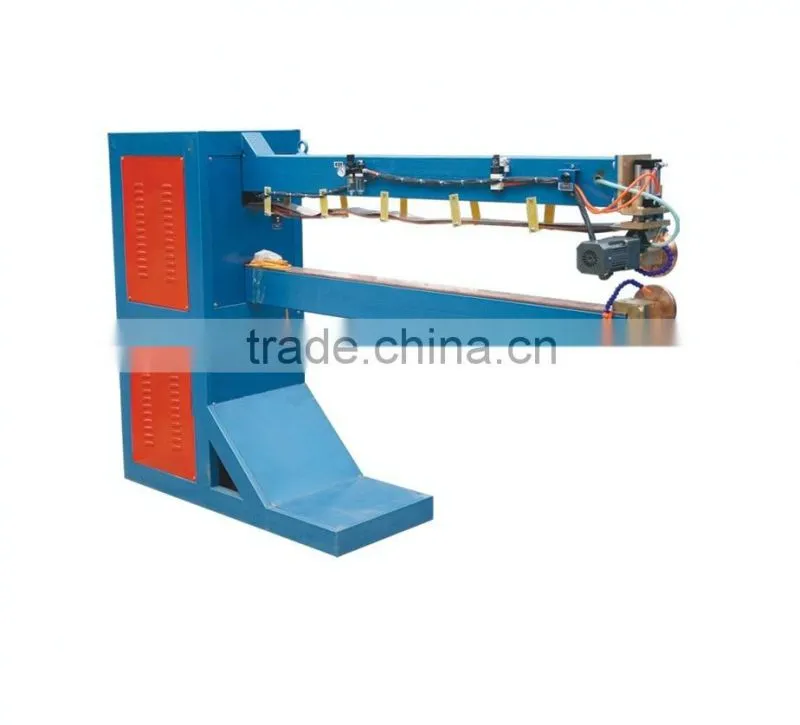

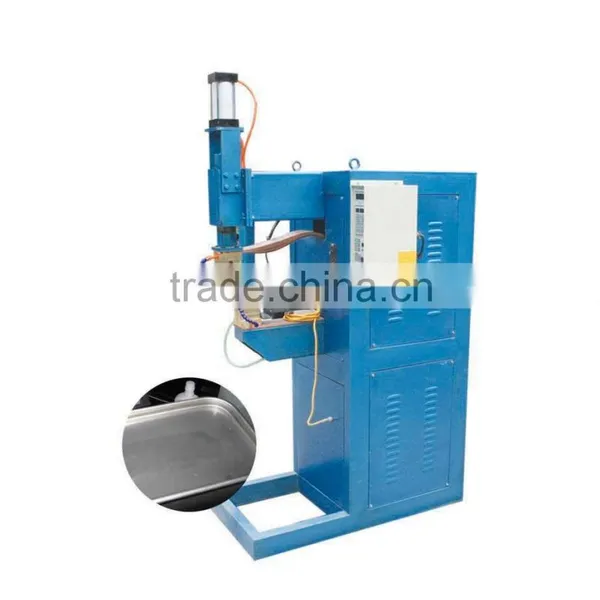

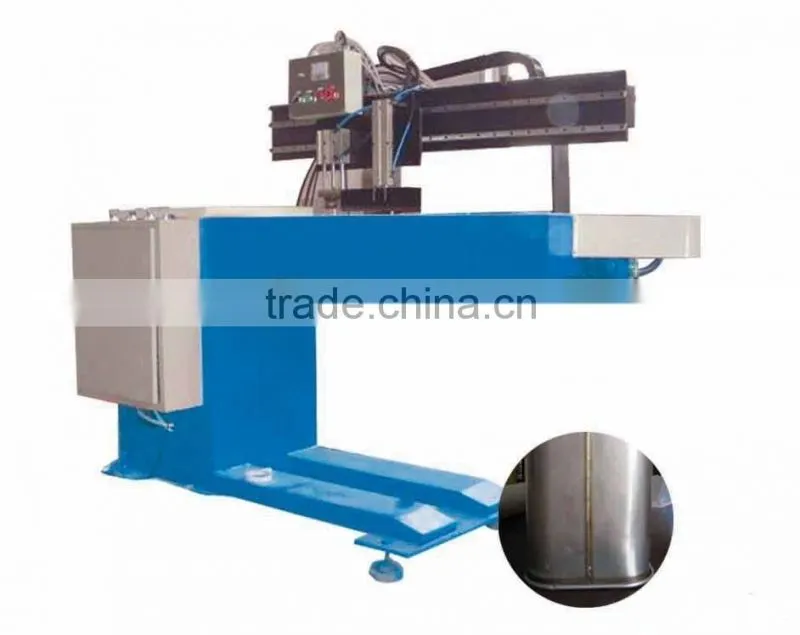

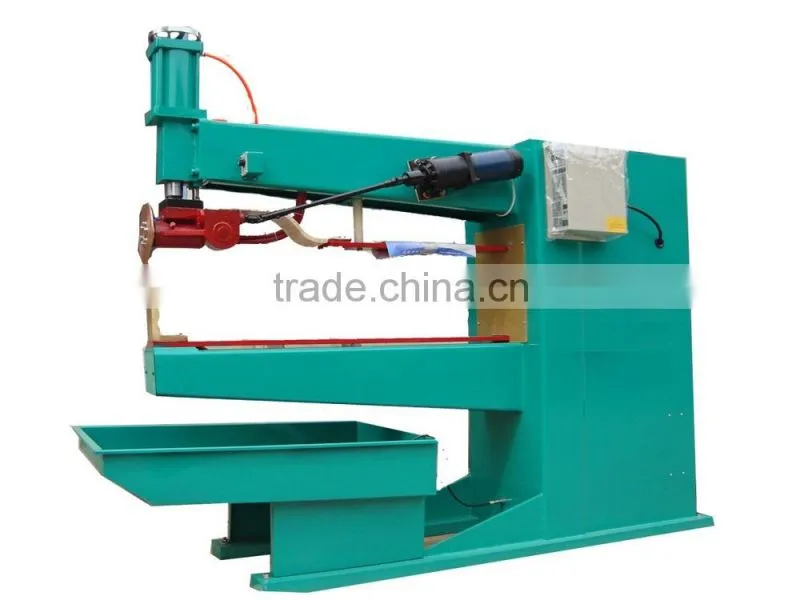

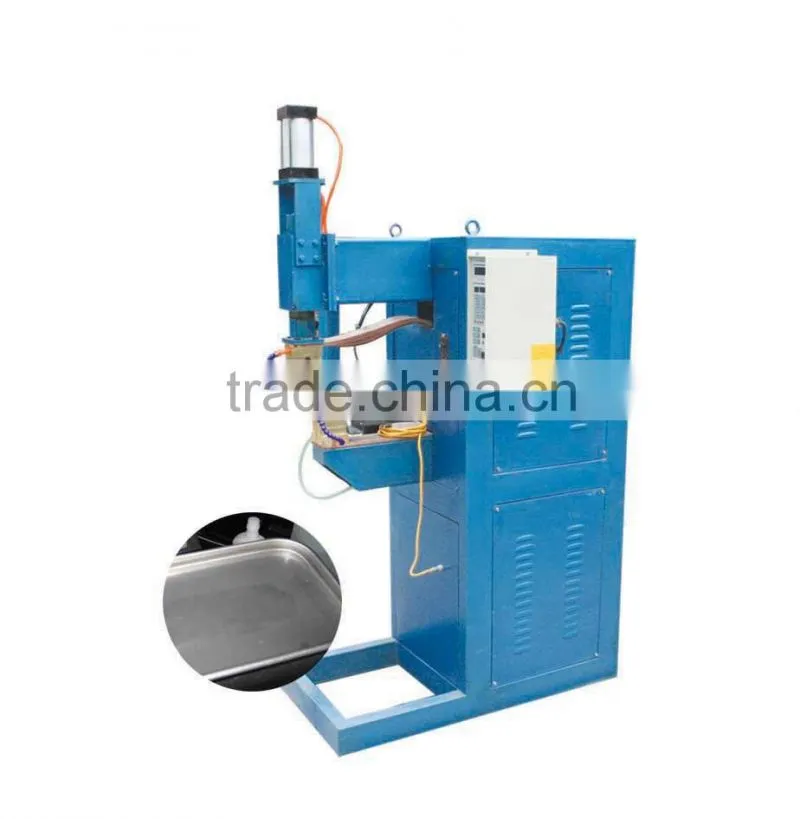

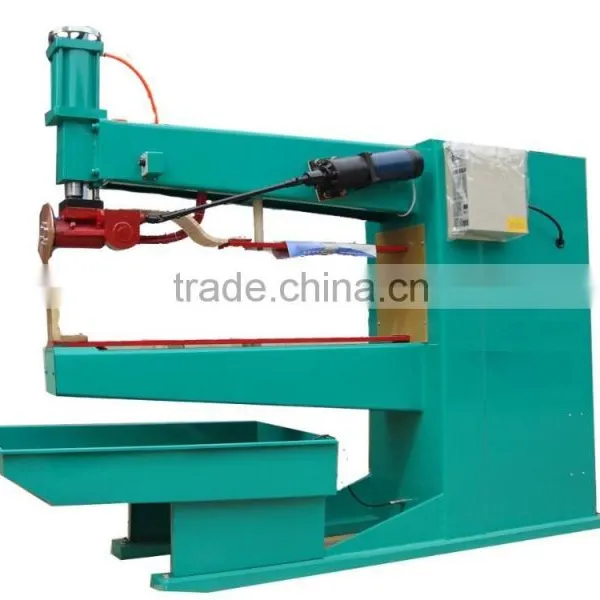

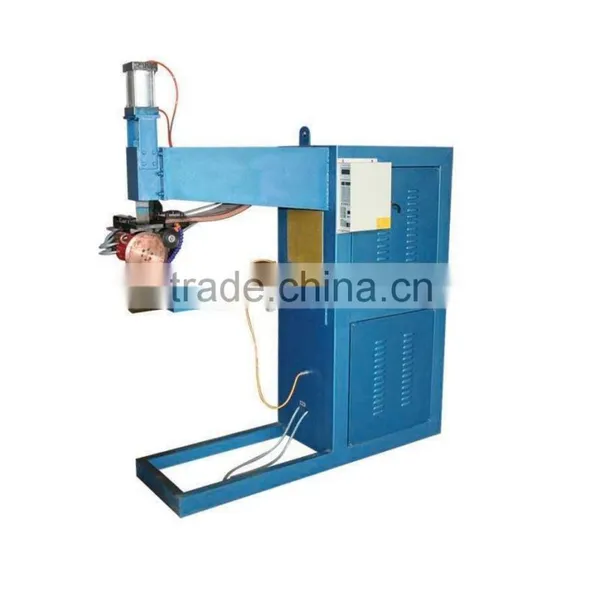

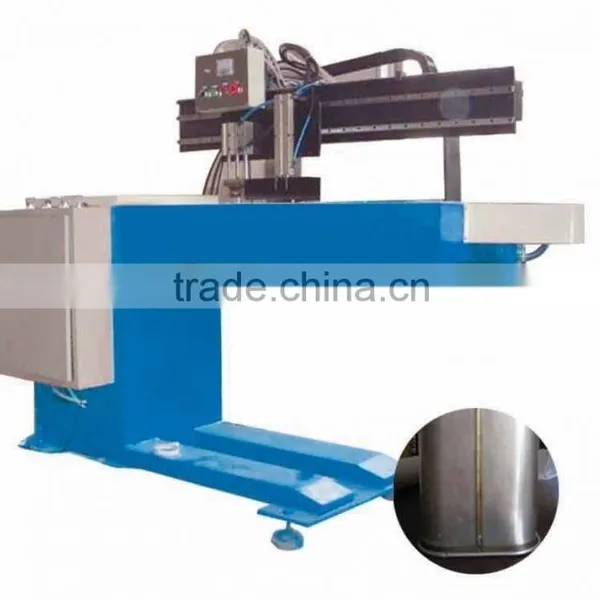

INT'L "OHA" Brand Seam Welder FN-55 CE Standard

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

OHA

Contact Supplier Request Quote Chat Now

OHA Machinery Industry & Trade (Shanghai ) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name OHA

Model Number FN-55

Forming Time 1min

Welding Mode Dock

Welding Diameter 1.5+1.5mm

Weight 378kg

Usage Ditch cover welding machine

Voltage Customized

Certification CE, BV, SGS, GOST, ISO

Warranty Lifetime

After-sales Service Provided Engineers available to service machinery overseas

INT'L "OHA" Brand Seam Welder FN-55 CE Standard

Product Description

1. .Air control cylinder construction and solenoid valve.

Air control cylinder together with solenoid valve, with no-feed oil dry bearings with minimum friction resistance, quick response, to increase the unit
punching speed and reduce air flow loss.
2. High-Performance air compression components(Air F.R.L units)
Explosion-resistant casing is fitted on the outside of the filter and oil feeder to prevent broken, and to protect it from out-side impact.
The filter and oil feeder cup can be dismounted to facilitate cleaning and maintenance.
3. The cooling tubing employs 3/8" bronze tube compulsory cooling cycle circuits
All cooling water pipes of the transformer, SCR and electrodes will have excellent cooling efficiency, with additional temperature rise automatic cut-off switch to completely avoid burning the transformer, SCR in case the water supply is interrupted.
4. High conductivity secondary re-circuits
Secondary side-welding recircuits made by bronze, low resistance and well-conductivity.
5. Sold Frame Structure
Sturdy body construction, excellent adaptability, reducing the electrode deviation during process, increase the welding quality, and reduce the shock and impact noise of the machine body.
6. Both interior and exterior of machine are treated with coating
Coated with powder baked paint after acid pickling to extend the life time.
7. Safe and reliable pedal switch
Sturdy and safe pedal switch with quick starting and easy installation starting voltage DC 12V which can be used safely.
8. An optional press adjuster is provided for upward and downward adjustment
To respectively adjust the rising or lowering speed and impact during the pressurizing progress, to obtain excellent welding quality and speed.
9. Central air exhaust method to improve working environment
Concentrated exhausting system will not only reduce the exhaust noise, but also reduce oil mist spraying, to maintain clean working environment.(Fitted with exhaust outlet to exhaust air to outdoors.)
10. Insulation on upper part, simple and practical
Secondary conductor insulation, empolying upper insulation, iron powder adhesion, or lower part installed with welding appliances, to avoid frequent occurence of install welding appliances near the lower electrode.
11. All series with microcomputer precision control circuit
Microcomputer Control Device: Precision Control, No Effected By Unstable Power Supply Condition.
12. Transformer of excellent current conductivity and of minimum electric loss
Secondary circuit with high conductivity, a low input will produce output with powerful current with minimum power loss and low facility cost.
13. Welding current circuits with adoption of SCR no-contact-point switch
Main circuit switch employs no-contact-point SCR to increase high welding reliability and avoid accident caused by poor connection and save maintenance and repair expense.
Even under rigorous conditions, it will still assure stable welding current to obtain consistent and steady welding strength.

Specifications

Model	FN-35	FN-55	FN-75	FN-100
Rated input capacity	35KVA	55KVA	75KVA	100KVA
Rated input voltage	1-380V/50HZ	1-380V/50HZ	1-380V/50HZ	3-380V/50HZ
Rated load cycle	50%	50%	50%	50%
Max.input capacity	45KVA	88KVA	110KVA	170KVA
Max.short circuit current	6200A	11000A	16000A	26000A
ure of electrode	400KGF	600KGF	1000KGF	1000KGF
The flow of cooling water	6L/min	6L/min	8L/min	8L/min
Arm length	600mm	600mm	600mm	600mm
Electrode journey	80mm	80mm	80mm	80mm
Speed of welding	0.5-3m	0.5-3m	0.5-3m	0.5-3m
Weight	328kg	378kg	428kg	476kg

1.	Color	Any color is available
2.	Logo	Customized Logo for Best-selling Seam Welder
3.	MOQ	Small MOQ,1 SET for Best-selling Seam Welder
4.	Delivery Time	(1) 30-60 days –If you want to customize your request. (2)25 days – For our Standard.
5.	OEM Accepted	Yes
6.	Certification available	Yes (CE,ISO,CQC Certification)
7.	CNC System	Delem . ESTON ……
8.	Packing Details	20GP ,40GP ,20 OT Or LCL
9.	Production Capacity	500/sets Best-selling Seam Welder Per Month
10.	Payment Term	L/C ,T/T,D/A,WESTERN UNION ,MONEY GRAM

Packaging & Shipping

Our Services

Advantage

1. Competitive price: It is can meet your budget and best-selling business very well.

2. OEM Accepted: We can produce any your request design.

3. Good Service: We treat clients as friends.

4. Good Quality: We have strict quality control system. Good reputation in the market.

5. Fast & Delivery: We have big discount from forwarder (Long Contract).

Our Innovation

Quality & Service: At OHA, our #1 priority has always been providing our clients with great quality products and superior customer service.

Quick lead Time: We’re dedicated to providing the quickest turn-around times and work very hard to ensure that all of your deadlines are met

Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the saving over to you!

Brand Awareness: The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.

Special Offers:In order to maintain our competitive edge, we are constantly running special offers on our Best –selling press brake, forging equipment goods and design services. Contact our sales term to see how we can help you save a lot of money.

General Order Information

We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the Southeast Asia market, South America, European market and Africa market. Please be aware that our production lead times depend on specific items and item quantities.
