Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Best Cnc Erosion Machine CNC-OX-750

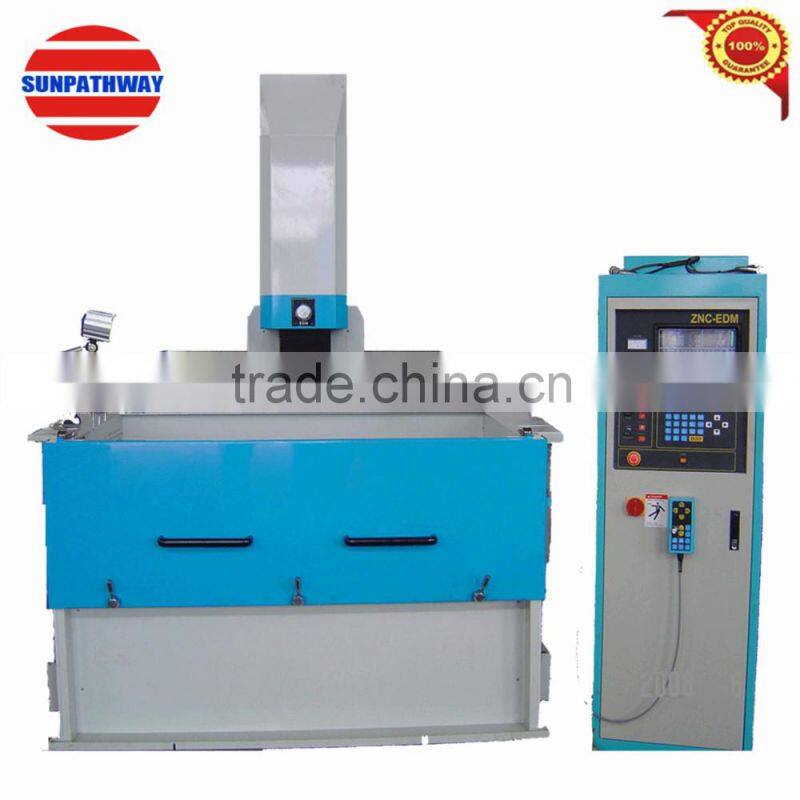

Best Cnc Erosion Machine CNC-OX-750

Name: Best Cnc Erosion Machine CNC-OX-750
Brand: Sunway
SKU: 117136411
Availability: InStock

Best Cnc Erosion Machine CNC-OX-750 thumbnail-1

Best Cnc Erosion Machine CNC-OX-750 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Sunway

Model Number:

CNC-OX-750

Contact Supplier Request Quote Chat Now

Nantong Sunway Science And Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Sunway

Model Number CNC-OX-750

Condition New

After-sales Service Provided Engineers available to service machinery overseas

One.best cnc erosion machine CNC-OX-750 Features:

1.It is fit for processing all sorts of metal materials dies and cavity dies of special shape parts.

2.Machine tool's 3 axis adopt the movement of double nuts ball screw by preloading.

3.The load weight capacity of table is big.It is applied to process large size molds of automotive ,home appliances,etc.

4.Installing the DC servo electrical motor and digital feedback of raster ruler can ensure high transmission precision and low driving torque.

5.Direct current servo system matched corresponding control system may accomplish the self-adapting machining.

6.Machine tools adopt fixed workbench design, machining accuracy may not influenced by workbench's loading.

7.X, Y axles' move adopt pillow style structure.

8. Gliding of two axles use high accurate line rolling guide and ball bearing wind of perch transmission.

9.So owns advantages like travel route big, rigidity good, coefficient of friction small, adapting to big, medium size mold's elaboration.

10.Z axle's bottom is loaded with a T type groove electrode connection board.

11.It can install large-scale electrode directly, also fitting for all sorts of tools to satisfy many kinds of small-typed electricity polar's installment.

12.Working tank's effective volume may reach 853 liters of work's oil box gross.

13.Demonstrated capacity can reach 1345 liters.

14.Ensuring actuating medium's clear rate with filtrate device.

15.The machine applies to large and medium-sized processing mechanical parts and complex mold manufacturing.

In addition to the features of CNC-OX-640, another features are as following:

1.With functions of boring optional shapes including circle,square,furcation,cross and hexagon.This makes process of orbital and electro discharge on its side is possible.

2.Automatic positioning,find central point and multipoint machining.

Two.Specifications of best cnc erosion machine CNC-OX-750:

Machine Type	Unit	CNC-OX-750
Working table's size (length×width)	mm	900×600
Left-to-right travel (X axle)	mm	750
Front-to-back travel (Y axle)	mm	500
Spindle travel (Z axle)	mm	370
The distance from spindle's bottom end to working table surface	mm	400-770
Lumen of oil tank's dimension(length×width×height)	mm	1850×950×550
Oil box appearance size (length×width×height)	mm	(1100×2000+1180×730)×485
Maximum electrode weight	kg	130
Working table's bearing capability	kg	2500
Machine's net weight	kg	3500

Three. best cnc erosion machine CNC-OX-750 Power Supply Unit:

Current/Type	Max machining rate	Min electrode wear rate	Optimal surface accuracy	Max input power
60A	400	0.3	0.3	5KVA
90A	800	0.3	0.3	8KVA
120A	1200	0.3	0.3	11KVA

Four.Machine Accessories of best cnc erosion machine CNC-OX-750:

Model	Machine Accessories	Brand Habitat
CNC-OX-750	Linear Guide	HIWIN(Taiwan)
	Ball Screw	China
	Servo Motor	SANYO
	Electrode tip	Taiwan
	Pump	Taiwan
	Door Seals	Taiwan

s of best cnc erosion machine CNC-OX-750:

duction capacity

Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.
Assembly shop of cnc engraving and milling machine
Graphite engraving and milling machine(complete) which exported to Brazil DX7070 Angle to open the door, in order to hoist workpiece directly by customer High speed processing of graphite electrodes or electrode parts
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time.
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.	LM-1612 with tool changer, with oil cooling for spindle
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”.
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face.
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.
Precision detection
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
