Specifications

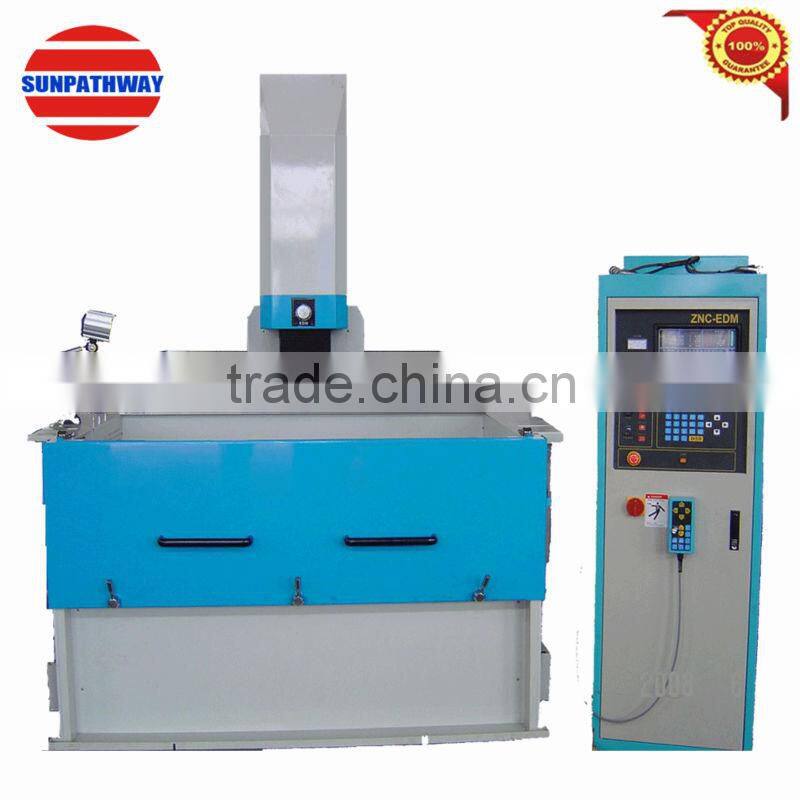

High Precision EDM Machinetable size:1100x700mm
travel:1000x600x500mm
max electrode weight:300kg
machine weight:5500kg
welcome to visit our website,the specification data of High Precision EDM Machine CNC-OX-1060 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.
CNC-OX-1060 Features:
1.It is fit for processing all sorts of metal materials dies and cavity dies of special shape parts.
2.Machine tool's 3 axis adopt the movement of double nuts ball screw by preloading.
3.The load weight capacity of table is big.It is applied to process large size molds of automotive ,home appliances,etc.
4.Installing the DC servo electrical motor and digital feedback of raster ruler can ensure high transmission precision and low driving torque.
5.Direct current servo system matched corresponding control system may accomplish the self-adapting machining.
6.Machine tools adopt fixed workbench design, machining accuracy may not influenced by workbench's loading.
7.X, Y axles' move adopt pillow style structure.
8. Gliding of two axles use high accurate line rolling guide and ball bearing wind of perch transmission.
9.So owns advantages like travel route big, rigidity good, coefficient of friction small, adapting to big, medium size mold's elaboration.
10.Z axle's bottom is loaded with a T type groove electrode connection board.
11.It can install large-scale electrode directly, also fitting for all sorts of tools to satisfy many kinds of small-typed electricity polar's installment.
12.Working tank's effective volume may reach 853 liters of work's oil box gross.
13.Demonstrated capacity can reach 1345 liters.
14.Ensuring actuating medium's clear rate with filtrate device.
15.The machine applies to large and medium-sized processing mechanical parts and complex mold manufacturing.
In addition to the features of CNC-OX-640, another features are as following:
1.With functions of boring optional shapes including circle,square,furcation,cross and hexagon.This makes process of orbital and electro discharge on its side is possible.
2.Automatic positioning,find central point and multipoint machining.
Specifications:
Machine Type | Measure | CNC-OX-1060 |
Working table's size(length×width) | mm | 1100×700 |
Left-to-right travel(X axle) | mm | 1000 |
Front-to-back travel(Y axle) | mm | 600 |
Spindle travel(Z axle) | mm | 500 |
The distance from the spindle's under-face to working table | mm | 500-1000 |
Oil tank chamber(length×width×height) | mm | 1900×1100×600 |
Oil box appearance size(length×width×height) | mm | 2-2000×1250×550 |
Maximum electrode weight | kg | 300 |
Working table's bearing capability | kg | 3500 |
Machine's net weight | kg | 5500 |
Power Supply Unit
Current/Type
| Max machining rate | Min electrode wear rate | Optimal surface accuracy | Max input power |
60A | 400 | 0.3 | 0.3 | 5KVA |
90A | 800 | 0.3 | 0.3 | 8KVA |
120A | 1200 | 0.3 | 0.3 | 11KVA |
Machine Accessories:
Model | Machine Accessories | Brand Habitat |
CNC-OX-1060 | Linear Guide | HIWIN(Taiwan) |
Ball Screw | China | |
Servo Motor | SANYO | |
Electrode tip | Taiwan | |
Pump | Taiwan | |
Door Seals | Taiwan |
