Specifications
Swing Barrier turnstile gate1 Heavy duty flap barrier
2 RS485&TCP/IP communication flap barrier
3 CE certificated

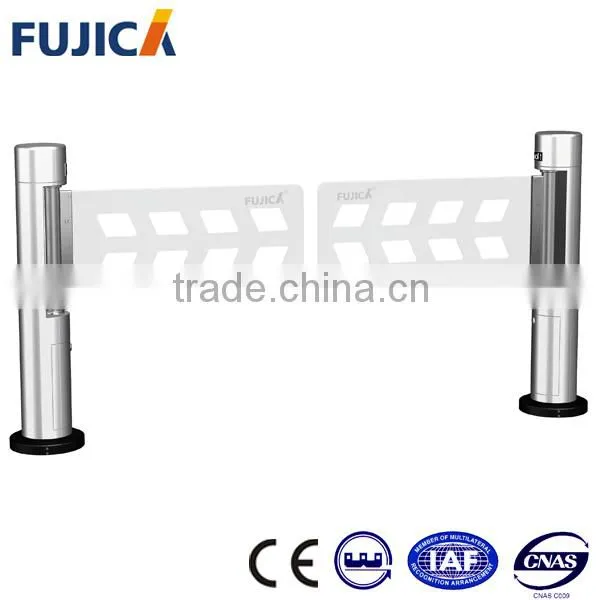

Swing Barrier turnstile gate FJC-Z2148
Specifications
1.High quality,competitive price
2.Top10 Chinese Security Brands
3.CE approved
4.2008 Olympic Games and 2010 Expo partner
Technical Information:
| Power consumption | 100W |
| Housing Size | Φ168mm*1180mm |
| Housing material | 2mm, 304# stainless steel, corosion resistant |
| Drive motor | DC brushless motor |
| Channel width | 600--800mm |
| Pass speed | 15 persons/min. |
| IP protection | IP44 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,500,000 cycle |
Functions and Features
1. Use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing
international standard design.
2. Based on standardization design, use laser cropping and cutting, instant-formation Technology,
mechanized wire drawing technology, modularized docking,convenient for work piece loading and
unloading and also for maintenance, a high level of parts exchanging.
3. Use 2mm stainless steel for the whole case, durable and reliable, free distortion.
4. The panel of the barrier uses high-intensity material, logo on the panel can be customized.
5. Stand alone infrared photocell can be applied.
6. International electrical interface, can be connected to the 3rd party read/write device, including: IC/EM
reader, Bar-code paper ticket system, fingerprint reader, 3D face recognition device etc.
7. The flaps will open automatically during power interruption.
8. The operation speed of the panel can be adjusted on the control board according to the circumstance and
passing speed.
