Specifications
pedestrian access control flap turnstile1.High quality,competitive price
2.Top10 Chinese Security Brands
3.CE

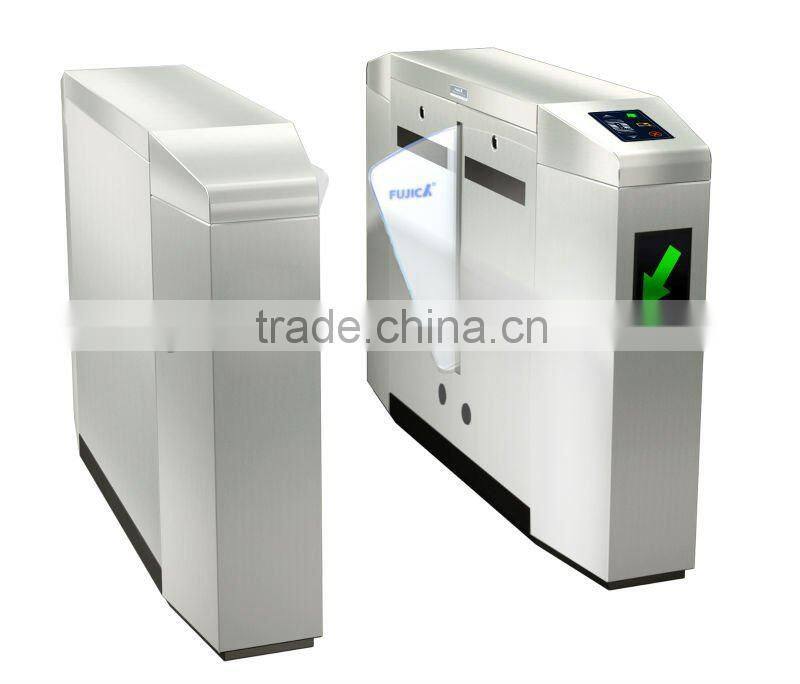

pedestrian access control flap turnstile barrier gate
Technical Data:
| Power consumption | 100W |
| Housing Size | 1400*280*950mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | DC brushless motor |
| Channel width | 500--600mm |
| Pass speed | 40 persons/min. |
| IP protection | IP44 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,500,000 cycle |
Functions and Features:
◊ Smartcard reader compatible with a variety of card such as IC and ID card.
◊ Can be expanded to automatic identification system, realizing function of access control,
pedestrian flow control,attendance check or fare collection.
◊ Equipped with international standard electrical interface, can be easily integrated with other
R/W device, also can be controlled and management through remote supervision computer
◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating
attempts, together with anti-strike function to protect pedestrian
◊ LED gate direction indicator that displays the current operational state to pedestrian. Green
arrow for entry free, Red cross for passage locked.
◊ Can open the turnstile by two input signals (signals can be input by access controller, button or
other equipments)
◊ Provide audible sound prompt and information display function.
◊ The flaps will open automatically during power interruption, and recover N/C mode after power
on(optional)
◊ Counting function. Flap closes after passing N pedestrians continuously by swiping card N times
correspondingly (N<=16) (optional)
◊ Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction
after reading the card.(optional)
