LSSH-82TV-B Precision Rotation Stage
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
liansheng optics
Model Number:
LSSH-82TV-B
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LSDH-200WS Step Motor Motorized Rotary StageNegotiableMOQ: 1 Piece -
Dovetail Manual Goniometer StageNegotiableMOQ: 1 Piece
-
LSSH-82TS-B Fine Thread Screw Manual Rotary StageNegotiableMOQ: 1 Piece
-
LSSZ-0903 Three Dimensional Manual XYZ Positioning StagesNegotiableMOQ: 1 Piece
-
3-Axis XYZ Micrometer Translation StageNegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
liansheng optics
Model Number
LSSH-82TV-B

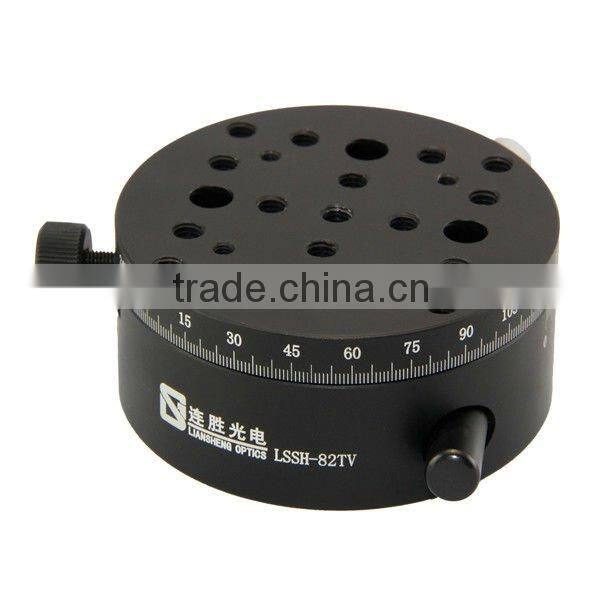

LSSH-82TV-B Precision Rotation Stage
1,Table top can be 360° rotary adjustment
2,Can do a fine adjustment within a certain range, fine-tuning drive by the micrometer head, spring reset, high resolution, no backlash.
3,Precision axis design, high accuracy and good stability
4,Circular 360° scale, easy for reading .

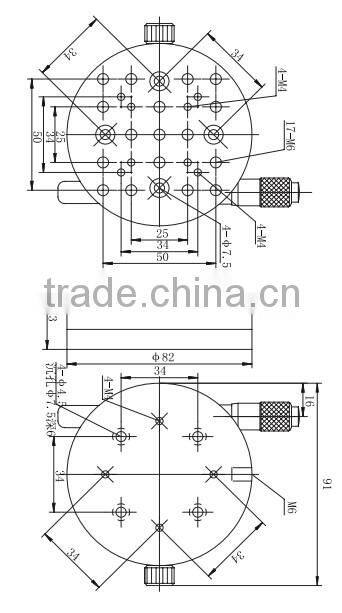

5,The top and bottom have connection hole with standard pitch ,Convenient to connected with the other displacement , made up of the multidimensional moving stage.
Code No. |
LSSH-82TV-B |
Platform Size |
Ø 82 mm |
Drive Mode |
Micrometer head |
Coarse adjustment Range: |
360° |
Precision adjustment Range |
+/-10° |
Minimum Scale |
5′ |
Minimum Scale reading |
0.7′ |
Load capacity |
5KG |
Motion parallelism |
50μm |
Motion concentricity |
30μm |
Net Weight |
0.5 kg |
