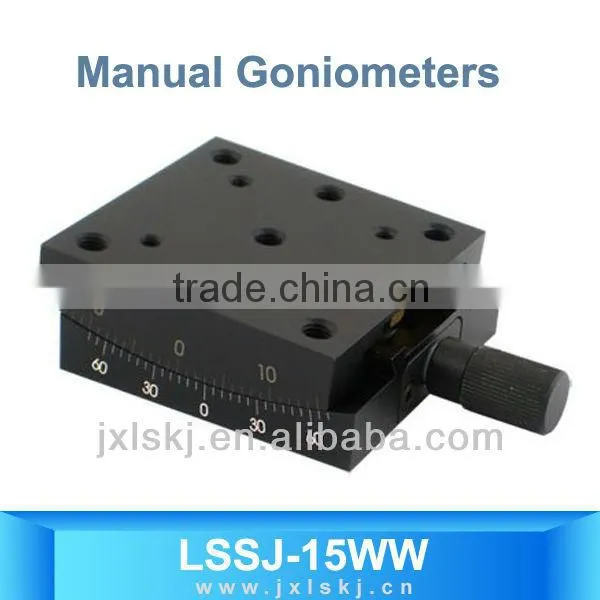

Dovetail Manual Goniometer Stage
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
LS
Model Number:
LSSJ-01-15WW
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LSSH-82TS-B Fine Thread Screw Manual Rotary StageNegotiableMOQ: 1 Piece -
LSSZ-0903 Three Dimensional Manual XYZ Positioning StagesNegotiableMOQ: 1 Piece
-
3-Axis XYZ Micrometer Translation StageNegotiableMOQ: 1 Piece
-
125mm Travel One End Adjustment Manual Linear StageUS$ 1 - 100MOQ: 1 Piece
-
13mm Center Adjust 60*60mm XY Translation StageNegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
LS
Model Number
LSSJ-01-15WW
LSSJ-01-15WW
Dovetail Manual goniometer stage
1.Provide rotation angle adjustment
2.Horizontal placement of mounting side for easy fixing
3.Pair design, rotating center at the same point after superposition,orthogonal double-axis concentric rotating adjustment
4.Driven by worm gear, dovetail guide rail,motion comfortable,accurate and reliable
5.Locking handwheel is safe and reliable.
Code No. |
LSSJ-01-15WW |
Platform Size |
65x65mm |
Adjustment Range: |
+/-15° |
Drive Mode |
Worm and gear |
Minimum Scale |
1° |
Minimum Scale reading |
5′ |
Minimum adjustment |
30" |
Axis height |
76mm |
Load capacity |
6KG |
Run out |
200" |
Incline |
200" |
Net Weight |
0.48 kg |
