3-Axis XYZ Micrometer Translation Stage
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
liansheng optics
Model Number:
LSSP-D3-J-13V(R/L)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
125mm Travel One End Adjustment Manual Linear StageUS$ 1 - 100MOQ: 1 Piece -
13mm Center Adjust 60*60mm XY Translation StageNegotiableMOQ: 1 Piece
-
LSDZ-1203 Xyz Motorized Positioning StageNegotiableMOQ: 1 Piece
-
LSSQ-02-5S2-02 Two Axis Tilt StageNegotiableMOQ: 1 Piece
-
Assembled 13mm XY Micro Positioning Stages LSSZ-02-01NegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
liansheng optics
Model Number
LSSP-D3-J-13V(R/L)
LSSP-D3-J-13V(R/L)

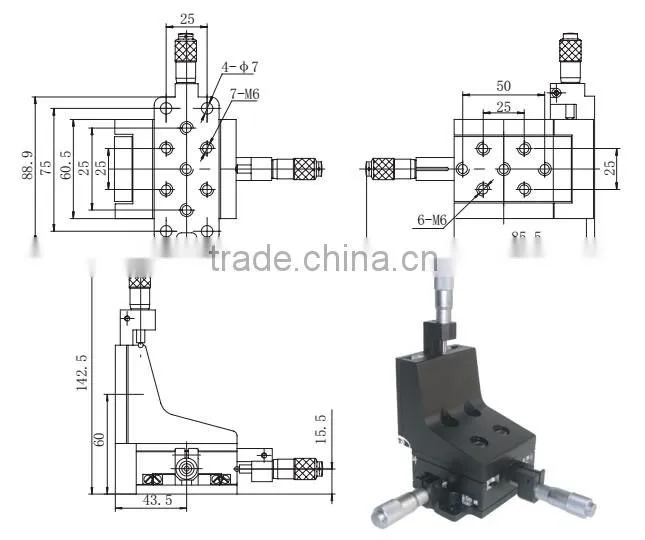

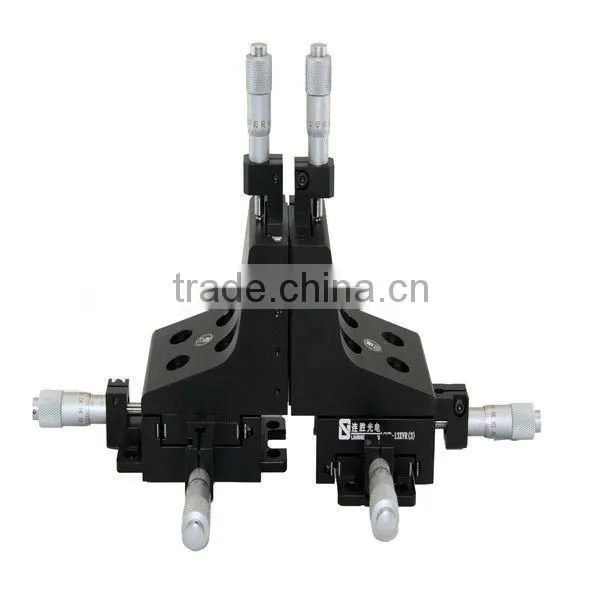

3-Axis XYZ Micrometer Translation Stage
1.Differential Micrometer
2.Modular Design for XYZ Configuration
3.V-Shaped Guide Rail
Code No. |
LSSP-D3-J-13V(R/L) |
Platform Size |
61.5*61.5mm |
Drive Mode |
Micrometer head in center |
Travel Range |
13mm |
Minimum Scale |
10μm |
accuracy |
5μm |
Minimum adjustment |
2μm |
Load capacity |
8 kg |
Linearity |
5μm |
perpendicularity |
40μm |
Net Weight |
0.9 kg |
