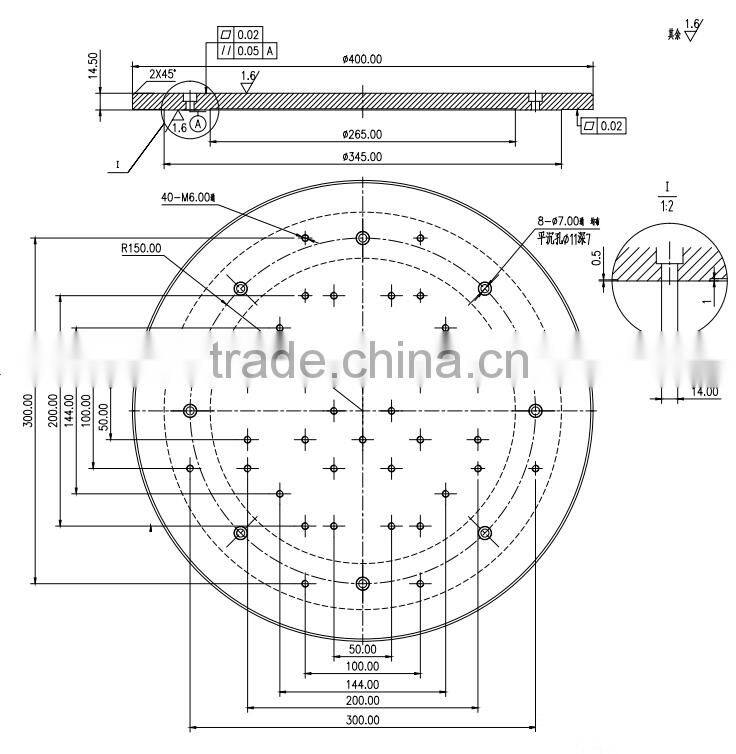

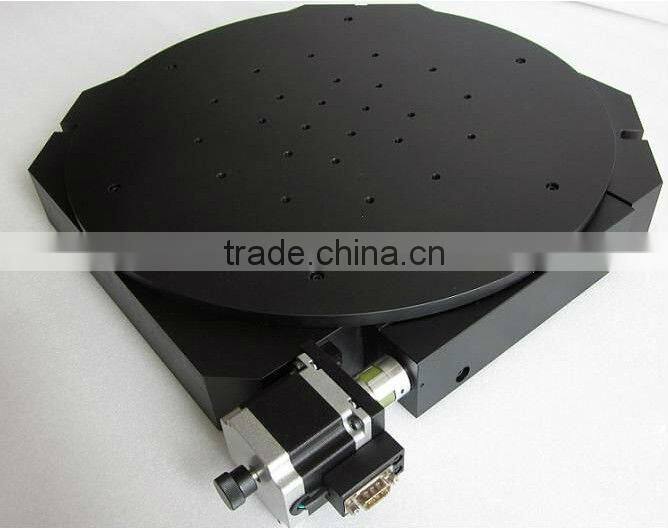

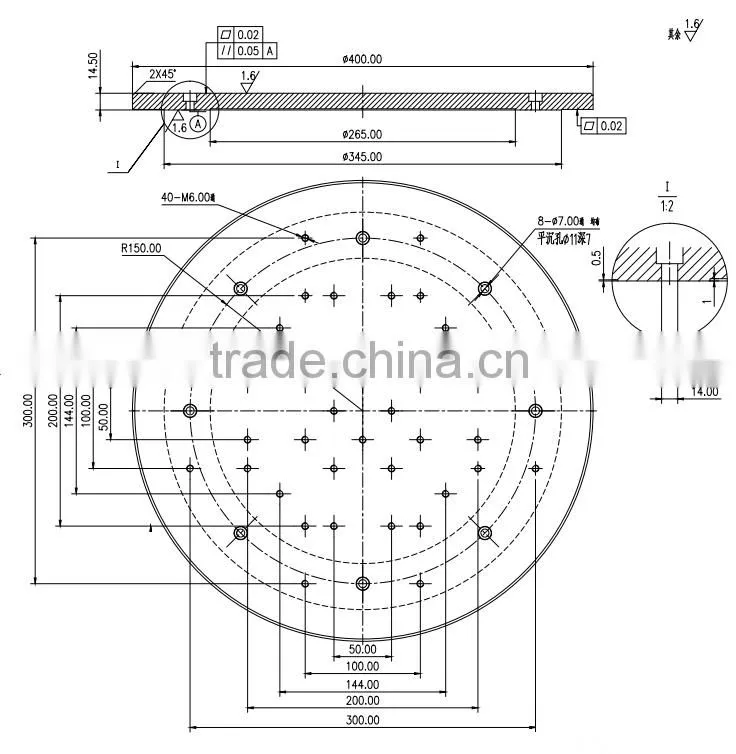

LSDH-400WS 2 phase stepper motor rotary stage
1.Equipped with standard stepping motor and standard RS232 interface, increase optic zero
position, with LSKZA series motion controller can achieve automatically control.
2.Rotating in a bearing steel materials precision process, cooperate with high precision, large load
capacity, long service life
3.Precision gear worm transmission,free forward and backward rotating
4.Worm gear and worm after precise research, motion comfortable, empty back to the minimum
5.Special design of structure clearance away to ensure long-time effective operation
6.The center hole has a tolerance limit for diameter, through holes in the center coincide with the
rotation center , convenient for location
7.Stepping motor and worm can reach the effects of transmission synchronization and low noise by
connecting high-quality imported elastic coupling.
8.platform outer ring is scale circle, round circle can characterize laser rod relative mesa rotation, convenient readings and initial orientation
9.servo motor available, make it suitable for industrial application

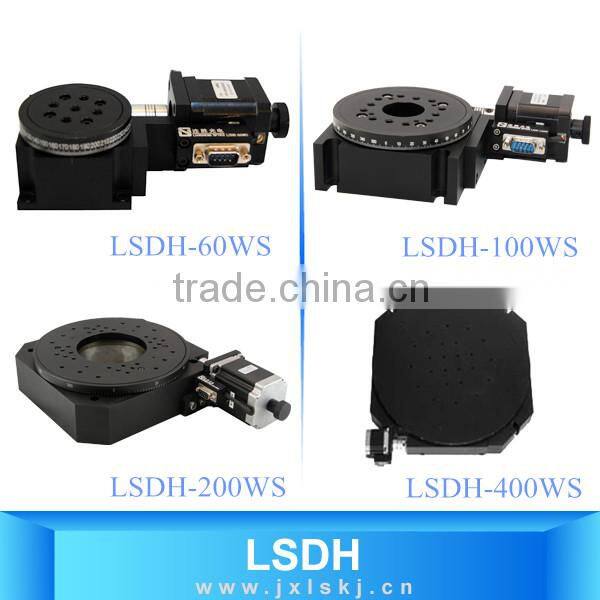

Model |
LSDH-60WS |
LSDH-100WS |
LSDH-200WS |
LSDH-400WS |
|
Table Top Size |
60mm |
100mm |
200mm |
400mm |
|
transmission ratio |
90:1 |
180:1 |
720:1 |
||
Repeat Position Accuracy |
less than 0.01° |
0.005° |
less than 0.003° |
||
standard motor |
42 stepping motor(1.8°) |
57stepping motor(1.8°) |
|||
Maximum Static Torque |
0.4Nm |
1.2Nm |
|||
rated operational current |
1.7A |
2.8A |
|||
Maximum Speed |
50°/sec |
25°/sec |
5°/sec |
||
Resolution (mm) |
0.0025° |
0.00125° |
0.0003125° |
||
Center hole diameter |
— |
Φ30/Φ60+0.025 |
Φ90+0.025 |
— |
|
standard zero |
— |
+ |
— |
— |
|
Maximum Central Loading |
30kg |
50kg |
60kg |
80kg |
|
Dead Weight |
1kg |
1.54kg |
7.7kg |
19.75kg |
|
