Precision Two-axis Tilt Platform LSSQ-02-5S2-01
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
LS
Model Number:
LSSQ-02-5S2-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LSDJ-15HW Stepping Motor Motorized GoniometerNegotiableMOQ: 1 Piece -
73mm Precision Manual Rotation StageUS$ 120 - 140MOQ: 1 Piece
-
25mm XYZ Precise Linear Positioning StageNegotiableMOQ: 1 Piece
-
5-Axis Crossed-Roller Bearing Translation StageNegotiableMOQ: 1 Piece
-
25mm Right Adjust Combined XY Translation StagesNegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
LS
Model Number
LSSQ-02-5S2-01

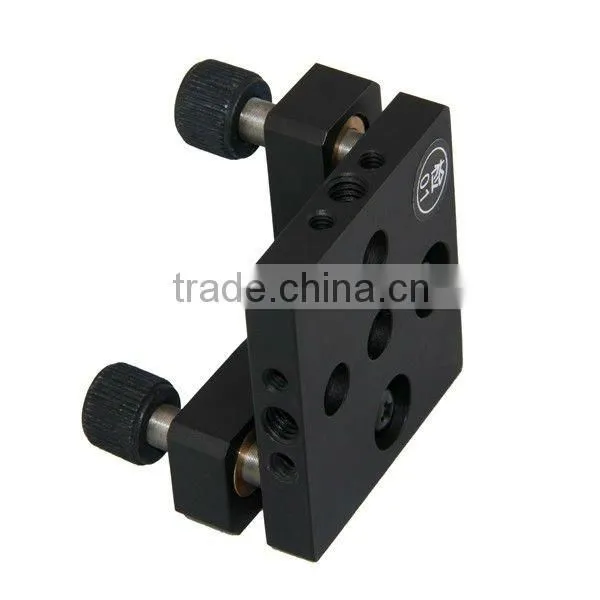

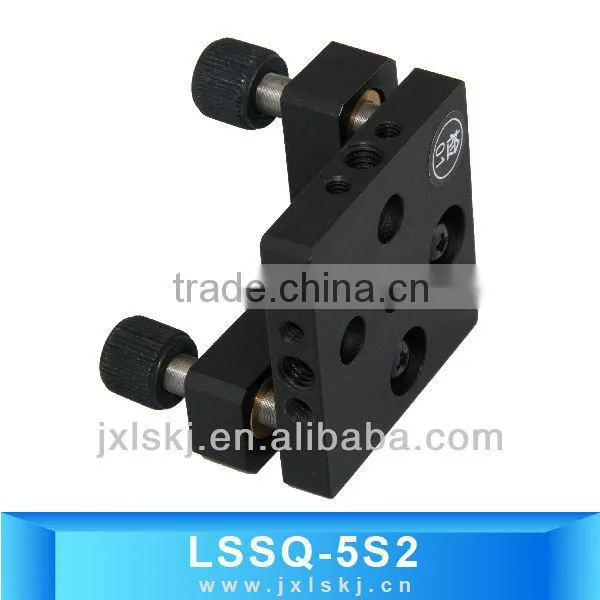

Precision Two-axis tilt platform LSSQ-02-5S2-01
| Features: |
| 1.Provide two-axis tilt adjustment |
| 2.Adjustment screw is M6X0. 25 super fine tooth screw, with fine adjustment |
| 3.High quality reset disk spring; Good stability, strong anti-vibration |
| 4.Standard installation holes , LSKJ3V form optical fiber fixture and three-axis series translation stages can assembly into five dimension optical fiber adjustment frame |
Model |
LSSQ-02-5S2-01 |
Platform Size |
46X46mm |
Angle Adjustment Range |
±5° |
Driving Mode |
Fine Thread Screw |
Load Capacity |
0.5kg |
Net Weight |
0.1kg |
