5-Axis Crossed-Roller Bearing Translation Stage
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
liansheng optics
Model Number:
LSSP-D5-X-13V(R/L)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25mm Right Adjust Combined XY Translation StagesNegotiableMOQ: 1 Piece -
LSDP-100-JG-2 Microscopy Motorized XY StageNegotiableMOQ: 1 Piece
-
LSSH-100WS Worm Gear Rotation StageNegotiableMOQ: 1 Piece
-
13mm XYZ Integrated Manual Linear StagesNegotiableMOQ: 1 Piece
-
Manual 2-axis Tilt Stage LSSQ-5V2NegotiableMOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
liansheng optics
Model Number
LSSP-D5-X-13V(R/L)

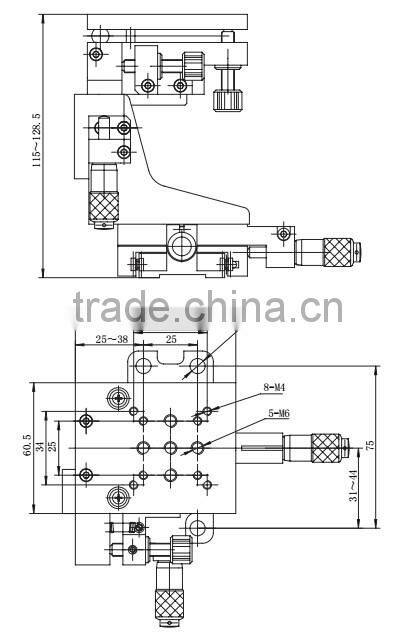

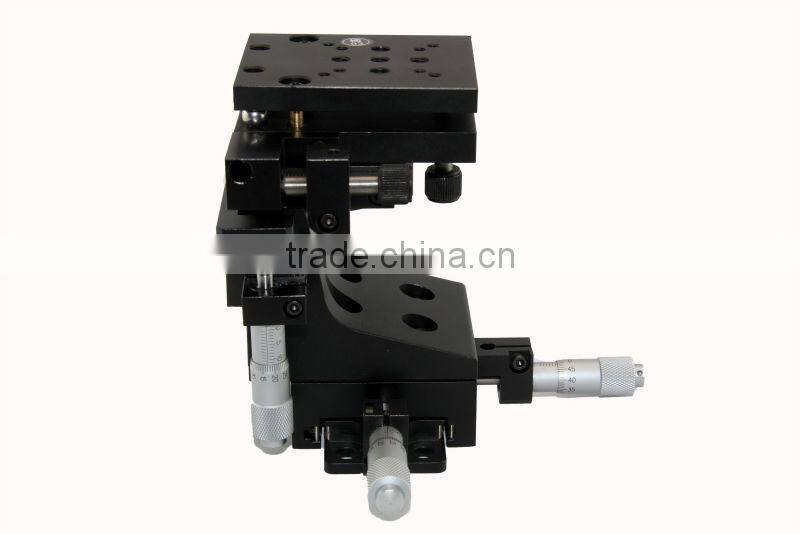

5-Axis Crossed-Roller Bearing Translation Stage
1. High resolution differential adjusters.
2. XYZ Roll,Pitch&Jaw.

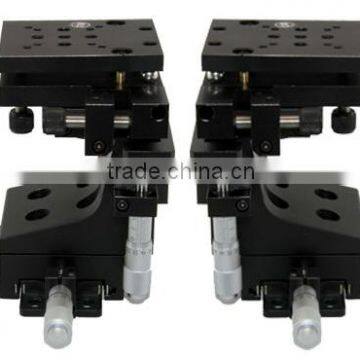

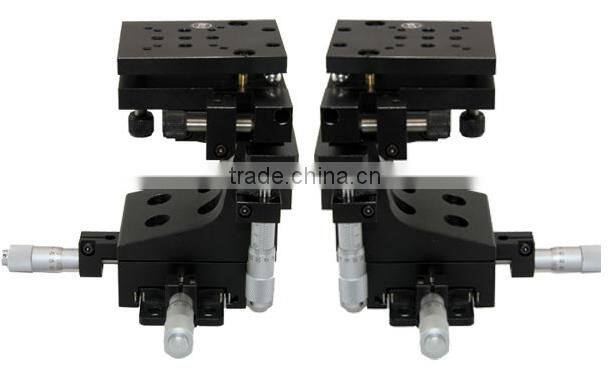

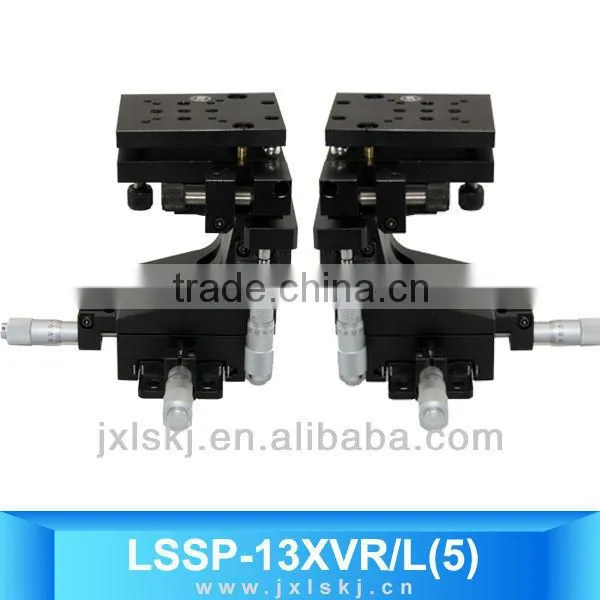

3. Available in left or right hand versions.
Features:
- The stage, with compact design, XYZ Roll,Pitch&Jaw,5-Axis adjustment.
- The guide rail adopts precise linear ball with dynomizing steel bar, free movement and high accuracy.
- Three-axis translation by micrometer head drive, spring resetting, quantitative reading, backlash eliminating.
- Precision M6x0.25 leadscrew for Pitching and rotation to adjust, with high quality disc spring resetting and excellent stability.
- Left or right hand version, micrometer in a same level to hand freely.
- hardened steel linear bearings in the vertical axis for precision motion and high load capacity.
- This optional mounting plate has a generous array of 1/4"-20 (M6 x 1.0) and 8-32 (M4 x 0.7) mounting holes to adapt the RollerBlock stage to general purpose breadboard-type applications.
Code No. |
LSSP-D5-X-25V(R/L) |
Platform Size |
74*60.5mm |
Adjustment angle |
X,Y,Z, θX,θZ |
Travel Range |
13mm+/-5° |
Minimum Scale |
10μm |
accuracy |
5μm |
Minimum adjustment |
2μm |
Load capacity |
3 kg |
Linearity |
60μm |
perpendicularity |
60μm |
Net Weight |
1.2 kg |
