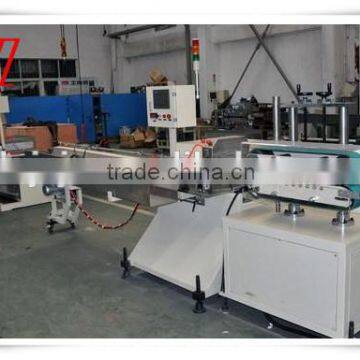

PVC pipe machine

Specifications

Manufacturer PVC Plastic Pipe Production Line / Machine OEM
1.Raw material:PVC with additive
2.Diameter:75~250mm
3.ABB

 Process

Crusher → Mill machine →  PVC powder + additive  →  Mixer → screw charger→ Double screw extruder →  mould → calibrator → vacuum calibration tank→  printer → haul-off → cutter → pipe discharging rack

Specification

Our Features

1) Main machine uses PVC efficiency screw, and notch feeder with powerful water
cover cooler, which has greatly improved transmitting capability and ensured
extruding.

2) Applied for the basket-shaped composite electric head for processing polythene,
which not only ensures the stability of high efficiency extruding, but also achieves
the minimum stress and highest pipe quality brought by low melting temperature
3) Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint
cooler gullet, which improve the finished product passing rate, and meet
the requirements of high speed manufacturing. Vacuum calibrating platform and cooler
gullet are all made of stainless steel
4) Adopting multi-track traction, through the central motor to run all the tracks
to reach same height, and ensure roundness of pipes
5) Adopting fully automatic control system with high precision, reliable operation,
easy and convenient handling
6) Suitable pipe diameter: 75 ~ 250mm

1. extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.
2. gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.
3. extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4. screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.
5. driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.
6. vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.
7. haul-off machines: 2 laws take-off machines is provided, haul-off speed governed by the FUJI or ABB inverter.
8. cutting unit: saw cutting and planet saw cutting, with dust collection system.
