iHT 521 CNC Horizontal Lathe Machine

FOB Price

USD $40,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port SHANGHAI PORT
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	CNC
Automatic Grade:	Automatic	Max. Swing Diameter:	500/500/680mm	Place of Origin:	Jiangsu, China
Brand Name:	Guosheng	Model Number:	iHT Series	Voltage:	380V 50HZ
Power(W):	Spindle motor: 7.5/11/15/22/33 kW	Dimension(LWH):	According To The Models	Weight:	3200/3200/7500kg
Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

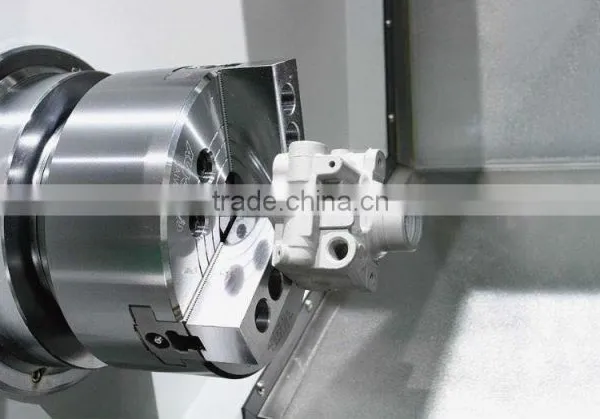

Details images

iHT Series Slant Bed CNC Lathe

IHT series of technology
●HT300 is equipped with four solid material gray cast iron bed rail to achieve maximum stability and perfect machining results.
●In the process, maximum stability is achieved by the Φ32 mm by 360mm ball screw drive spaced rails (IHT 1025: 400mm and Φ40 mm)
●The spindle bearings' maximum internal diameter up to 100mm (IHT 1025 as a Φ140 mm), and linear encoders, these ligands are optional. so that the aircraft has the highest accuracy and stability
●12 tool turret VDI 30 or VDI 40 (BMT optional), standard hydraulic control System tailstock
●Standard hollow hydraulic clamping system (solid optional)
●Mobile center frame (optional) and servo-driven tailstock (optional)

Detail Parameters

Tool Turret

	Tool Turret Specification
Model	iHT516	iHT521	iHT1025
Electric turret	PRAGATI BTP-100
Tools number	12
Tools type	25
Servo turret	SAUTER 0.5.440.xxx/12
Tools number	12
Tools type VDI	30 (axial)		40(axial)
Tool axis mm	20x20	20x20	25x25
Driven turret	SAUTER 0.5.436.xxx/12
Tools number	12
Tools type VDI	30(axial)
Driven tool type VDI	30/W16x0,8x30x18 DIN5480		40/w20X0,8X30X24 DIN5480
Max clamping force N	4000
Tool bar mm	20x20	20x20	25x25
Driven tool speed rpm	4000
Driven tool power kW	3
Driven tool torque Nm	32

Structure

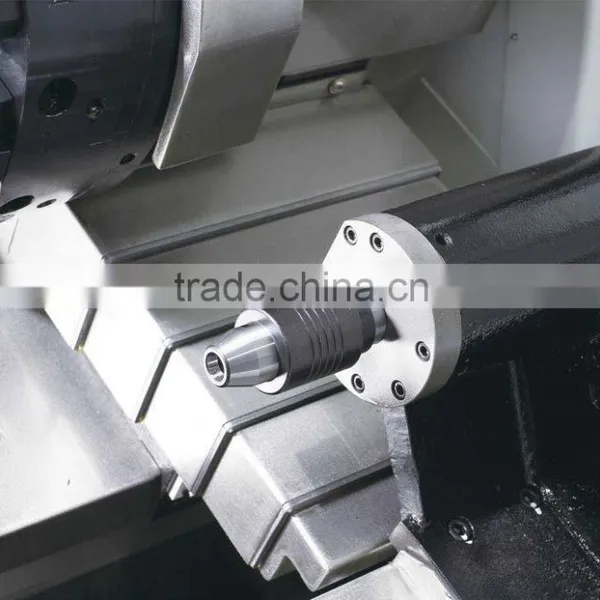

With programmable hydraulic tailstock iHT 516 / iHT 521 processing space

Make-axis machining on a single power tool equipped iHT 1025

High stability, solid cast iron frame, compact design -30 ° / 45 ° inclined bed

The self-developed spindle structure

For iHT 1025, on the vertical rail-centering hydraulic steady rest

The integrated finished parts pick means

The tool measuring

Japan NACHI hydraulic system

Why Choose Us

Machine tool industry Top 10 in china

Our machines in China with industry leading.

Advanced technical team from Taiwan

Our technical in China with industry leading.

Using high-quality components from Germany

Such as control systems, measuring systems, hydraulic systems, proximity switches and turret from:
SIEMENS, HEIDENHAIN, Bosch Rexroth, Balluff and Sauter.

Cost up 5% with performance up 20%

Performance of our machine tool in China with industry leading.

Our Company

Detection & Packing

FAQ

Contact Information:

Steve Guan

Mobile:+86 139 4080 6411

Whatsapp: +00 86 139 4080 6411

SKYPE: rc-machinery013

Contact Us

Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.: Contact nameAlice Liu; Phone86-513-85605630; AddressN0.2, YongTong Road, Gangzha District, Nantong, China. Nantong,Jiangsu
