Yingkou Automatic arch roof construction Machinery / UCBM roll forming machine

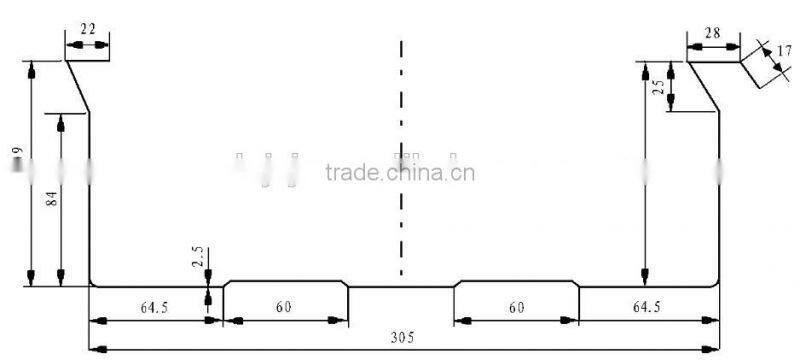

- Profile

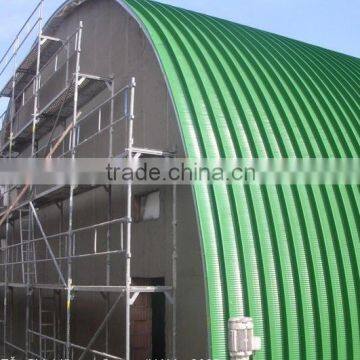

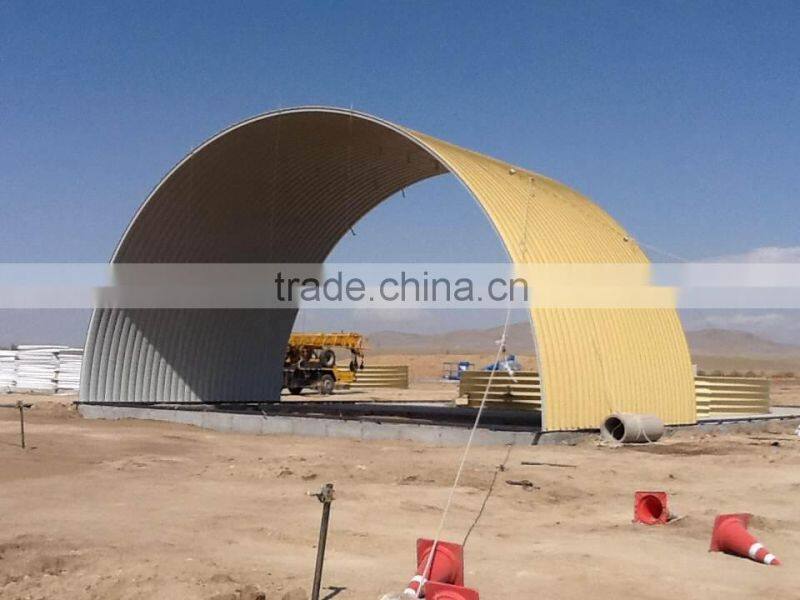

- Finished arch roof buildings
Technical parameters of arch sheet roll forming machine | |
Size |
8900mmX2200mmX2300mm |
Total Weight |
About 10Ton |
Cutting Material |
12CrMoV, Heat treatment |
Cutting type |
Mechanical Cutting Device |
Forming type |
Roll-formed and length-set cutting |
Main Motor Power |
5.5KW |
Bending Power |
3.0KW+1.5KW |
Cutting Power |
4.0KW |
Seaming Power |
1.1KW+1.1KW |
Material of rollers |
45# steel, quenched HRC 55~65 |
Feeding width |
600mm |
Finished width |
305mm |
Operating factor of the panel |
50.8% |
Thickness of the Panel |
0.6-1.5mm |
Applicable width |
4~28m |
- Rollers of roll forming machine

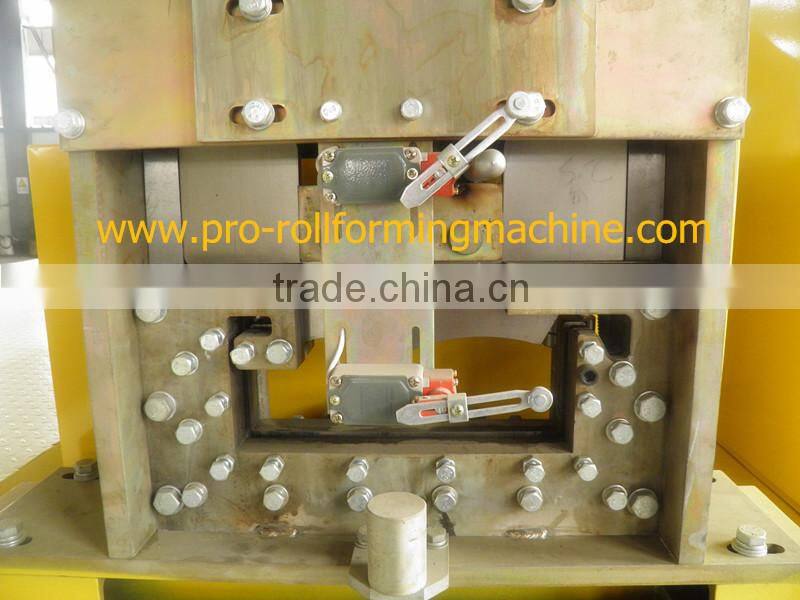

Cutting blade
- After sale services
We can help customers do calculations of raw materials’ using and give customers the professional information related to arch roof project.
- Characteristics
Lowest cost and long-term roofing maintenance costs available, often with 20-year warranty.
The arches are designed to be totally self-supporting and do not require any support structure such as is need in standard steel frame buildings
The mobile factory is taken directly to the construction site and the building is fabricated completed on work site.

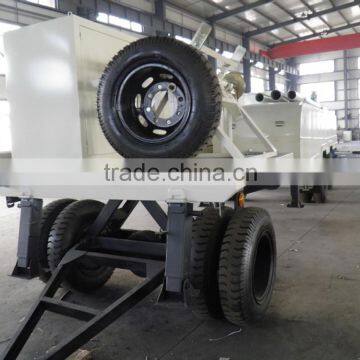

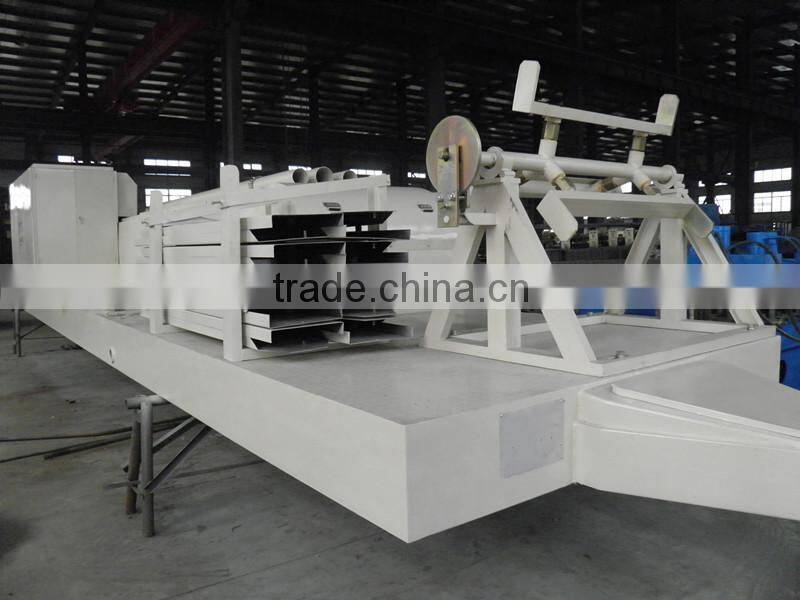

- Roll forming machine in our workshop
- Arch roofing roll forming machine project in Mongolia
Welcome to visit our company for inspection and negotiation!
