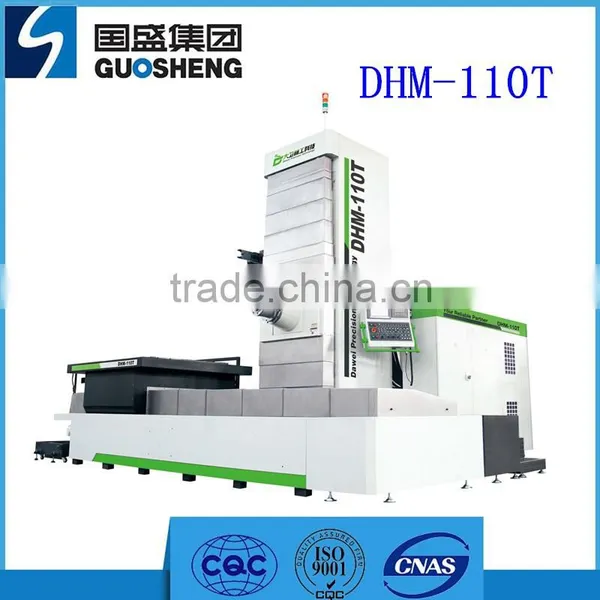

DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center

DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center thumbnail-1
DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center thumbnail-2
DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center photo-1

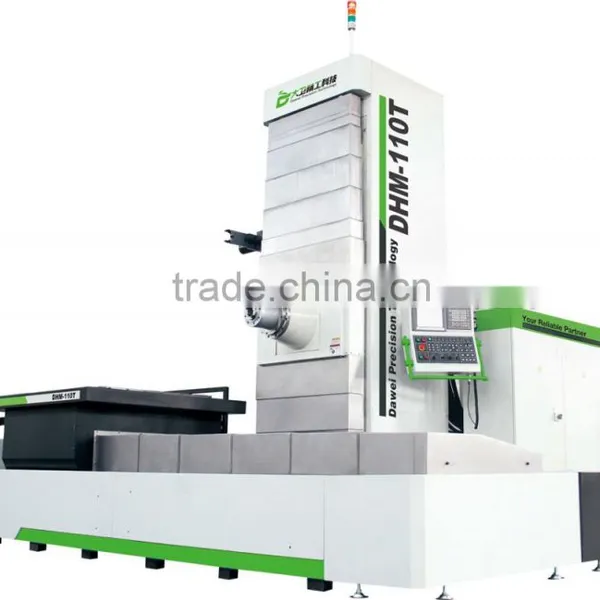

DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center photo-2
US$ 220,000 - 240,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
Place of Origin Jiangsu, China
Brand Name Guosheng & Dawei
Model Number DHM110T
Voltage 380V/50Hz
Power(W) Spindle motor: 22/26 kw
Dimension(L*W*H) 5430 x 6450 x 4470 mm
Weight 27500 kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

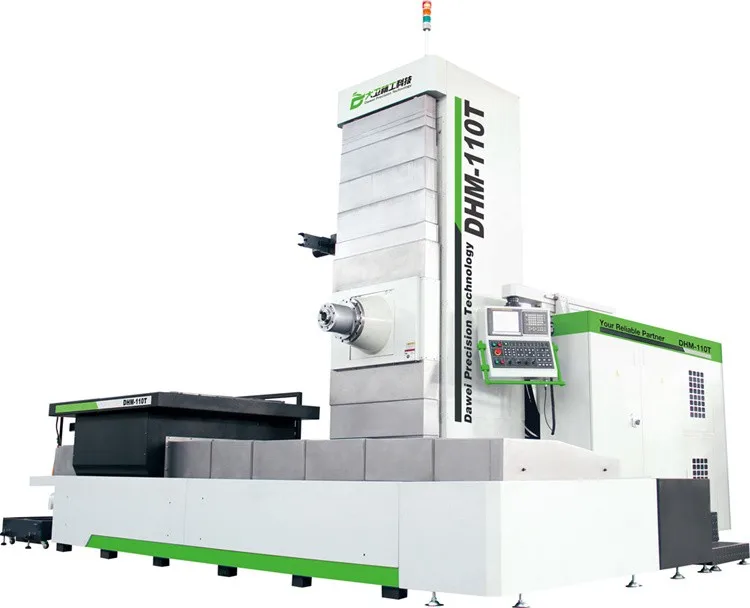

DHM110T Chinese 3 Axis Price of CNC Horizontal Machine Center


The structure of the machine frame is been FEM analyzed by ANSYS system to guarantee high stability under high speed and high precision machining.A deformation testing is simulated under loading simulation to ensure the rigidity and have excellent bending resistance.Dawei DHM series is suitable for heavy cutting horizontal machining center in design of X axis guide rail with large span section difference，make the spindle and the back supporting rail distance closer，in order to increase the column rigidity，and fully meet customer demand of milling.

Product Description
Model
Unit
DHM110T
Travel
X-axis travel
mm
2500
Y-axis travel
mm
1200
Z-axis travel
mm
1300
Spindle
Spindle center to worktable surface
mm
150-1350
Spindle nose to work center
mm
350-1650
Spindle taper
BT 50
Rotating speed of spindle(standard)
rpm/min
6000
Standard spindle
ZF
Optional spindle 1
Direct transmission
Optional spindle 2
Rotary worktable (B axis)
Pallet size (L×W)
mm
1100×1100
Min.division angle
deg
1°(standard)/0.001°(optional)
Reference aperture
mm
Φ250 H7
Max.load on worktable
kg
3500
Division precision
sec
±5''
Repetitive precision
sec
±1''
Number of worktables
1
Transmission mode
Axial transmission mode
Direct transmission
Feed speed
Cutting speed
mm/min
1-7000
Rapid traverse speed X/Y/Z
m/min
12/12/12
Tool magazine and automatic toolchanger
Capacity of tool magazine
40(30/60)
Tool selecting mode
mm
Random
Max.tool weight
15kg
25
Max.tool length
mm
600
Max.tool diameter（no adjacent tools）
mm
Φ125/250
Tool changing mode
mm
Arm type
Tool handle size
BT50/CAT50/DIN50
Spindle & motor
Spindle drive motor
kW
FANUC 22/26
Max.torque of spindle
N·m
770/910
Precision of machine tool
Locating precision of machine tool/full travel
mm
±0.01
Repetitive locating precision of machine tool/full travel
mm
±0.005
Others
Air pressure required
kgf/cmª
6
Voltage requirement
KVA
60
Tank capacity
L
315
Machine weight
kg
27500
Floor area
mm
5430x6450
Machine height
mm
4470
Why Choose Us

Machine tool industry Top 10 in china

Our machines in China with industry leading.

Advanced technical team from Taiwan

Our technical in China with industry leading.

Gearbox from ZF Germany

Main parts of our machine tool in China with industry leading.

Cost up 5% with performance up 20%

Performance of our machine tool in China with industry leading.

Our Company

Dawei Precision Technology


Jiangsu Dawei Precision Technology Co.,Ltd.is a company specialized in researching,developing and manufacturing of horizontal boring and milling machines and horizontal machining centers.The company is joint-ventured by Nantong Guosheng Machinery & Power-generating Group，the professional CNC machining center manufacturer，and advanced technical team from Taiwan.
