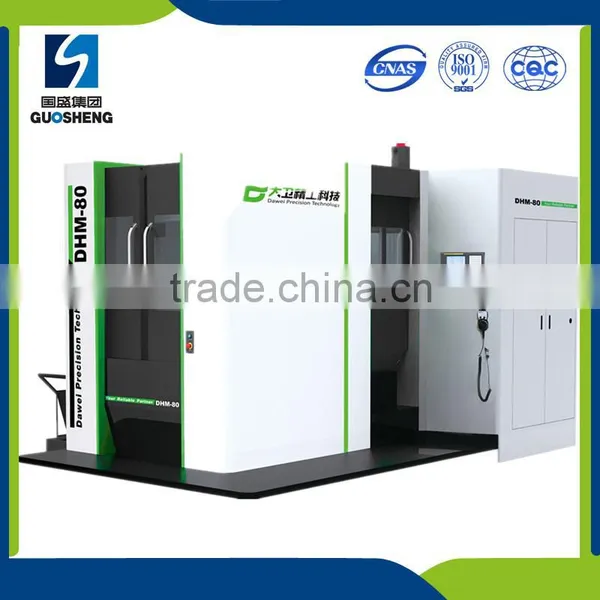

DHM80 CNC Horizontal Automatic Machine Center

DHM80 CNC Horizontal Automatic Machine Center thumbnail-1

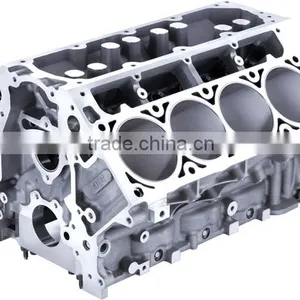

DHM80 CNC Horizontal Automatic Machine Center thumbnail-2
DHM80 CNC Horizontal Automatic Machine Center thumbnail-3
DHM80 CNC Horizontal Automatic Machine Center thumbnail-4
DHM80 CNC Horizontal Automatic Machine Center thumbnail-5
DHM80 CNC Horizontal Automatic Machine Center thumbnail-6
DHM80 CNC Horizontal Automatic Machine Center photo-1

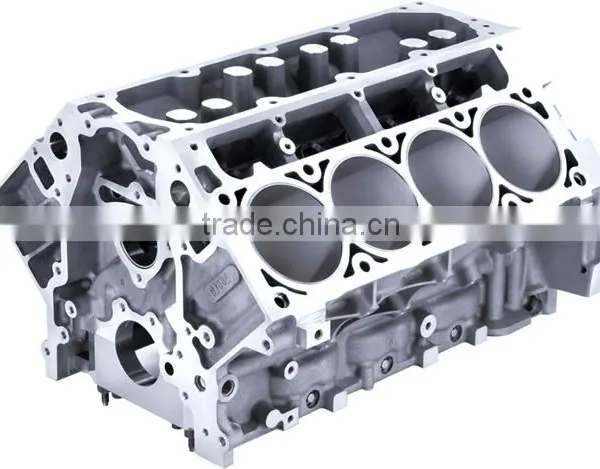

DHM80 CNC Horizontal Automatic Machine Center photo-2

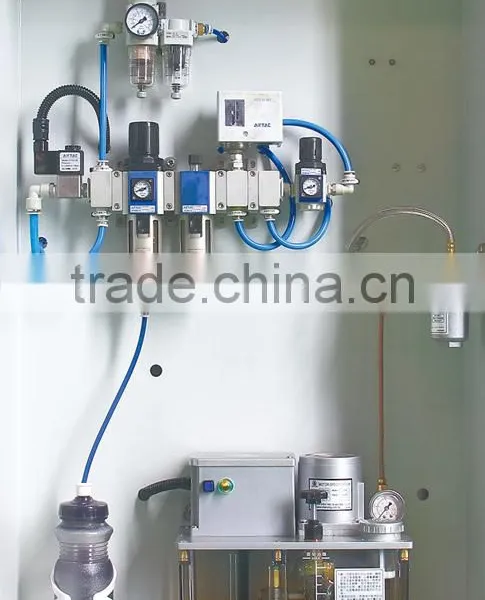

DHM80 CNC Horizontal Automatic Machine Center photo-3

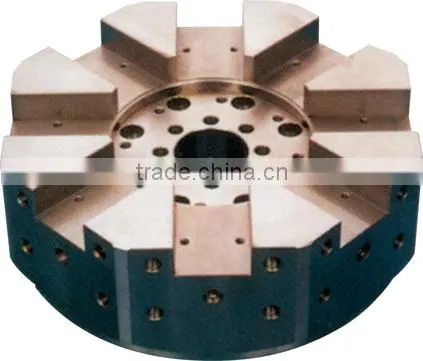

DHM80 CNC Horizontal Automatic Machine Center photo-4

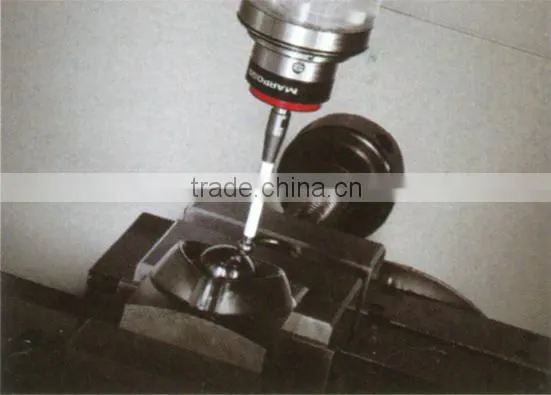

DHM80 CNC Horizontal Automatic Machine Center photo-5

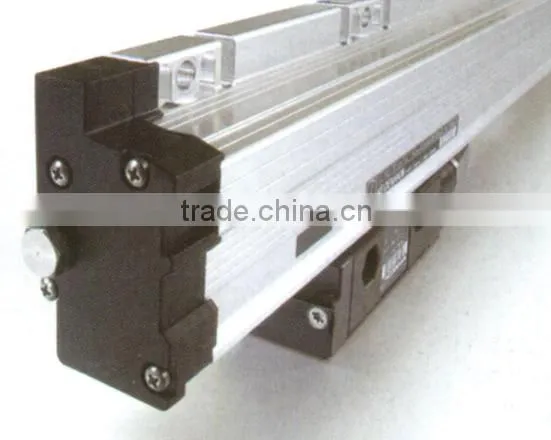

DHM80 CNC Horizontal Automatic Machine Center photo-6
US$ 150,000 - 160,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Nantong Guosheng Machinery & Power-Generating Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
Place of Origin Jiangsu, China
Brand Name Guosheng & Dawei
Model Number DHM80
Voltage 380V/50Hz
Power(W) Spindle motor: 15/18.5 kw
Dimension(L*W*H) According to the models
Weight 18000/20500 kg
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

DHM80 CNC Horizontal Automatic Machine Center



The structure  of the machine frame is been FEM analyzed by ANSYS system to guarantee high stability  under high speed and high precision machining.A deformation testing is simulated under loading simulation to ensure the rigidity and have excellent bending resistance.
Dawei DHM series is suitable for heavy cutting horizontal machining center in design of X axis guide rail with large span section difference，make the spindle and the back supporting rail distance closer，in order to increase the column rigidity，and fully meet customer demand of milling.


Product Description
Model
Unit
DHM80-E
DHM80-Single Worktable
Travel
X-axis travel
mm
1050
1300
Y-axis travel
mm
1000
1200
Z-axis travel
mm
950
1200
Spindle
Spindle center to worktable surface
mm
75-1075
75-1275
Spindle nose to work center
mm
150-1100
150-1350
Spindle taper
BT 50
BT 50
Rotating speed of spindle(standard)
rpm/min
6000
6000
Standard spindle
ZF
ZF
Optional spindle 1
Gear transmission
Gear transmission
Optional spindle 2
Direct transmission
Direct transmission
Rotary worktable (B axis)
Pallet size (L×W)
mm
800×800
800×800
Min.division angle
deg
1°(standard)/0.001°(optional)
1°(standard)/0.001°(optional)
Reference aperture
mm
Φ55 H7
Φ55 H7
Max.load on worktable
kg
2500
2500
Division precision
sec
±5''
±5''
Repetitive precision
sec
±1''
±1"
Number of worktables
1
1
Transmission mode
Axial transmission mode
Direct transmission
Direct transmission
Feed speed
Cutting speed
mm/min
1-10000
1-10000
Rapid traverse speed X/Y/Z
m/min
24/24/24
24/24/24
Tool magazine and automatic toolchanger
Capacity of tool magazine
30(40/60)
30(40/60)
Tool selecting mode
mm
Random
Random
Max.tool weight
15kg
18
18
Max.tool length
mm
500
600
Max.tool diameter（no adjacent tools）
mm
Φ100/200
Φ100/200
Tool changing mode
mm
Arm type
Arm type
Tool handle size
BT50/CAT50/DIN50
BT50/CAT50/DIN50
Spindle & motor
Spindle drive motor
kW
FANUC 15/18.5
FANUC 15/18.5
Max.torque of spindle
N·m
525/644
525/644
Precision of machine tool
Locating precision of machine tool/full travel
mm
±0.01
±0.01
Repetitive locating precision of machine tool/full travel
mm
±0.005
±0.005
Others
Air pressure required
kgf/cmª
6
6
Voltage requirement
KVA
70
70
Tank capacity
L
800
800
Machine weight
kg
18000
20500
Floor area
mm
3815x6590
4065x7330
Machine height
mm
3465
3665
Design For Quality

Base X axis present multistep, the distance between spindle and back support rail is closer, to ensure the stability of the machining accuracy; Column span large, whole machine rigid structure is more stable.

DHM Series column is thicker, thickness increases 20% than other manufacturers, and rigidity is more steady.

DHM Series base Z axis anchor support distance is wider, increasing 40%, and have stronger rigidity.

Workbench bearing surface is bigger, and more rigid.

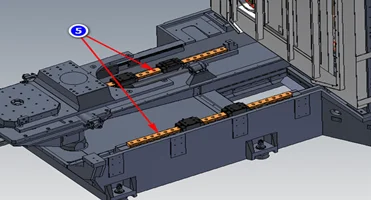

DHM Series using R55 linear roller guide rail, the other manufacturer use R45 or 50, so the line rail is larger, rigid structure and machine precision are more stable.

DHM Series screw are all hollow oil cooled screw, to avoid the screw produces a large amount of heat in the process of movement, deterioration in accuracy of screw.

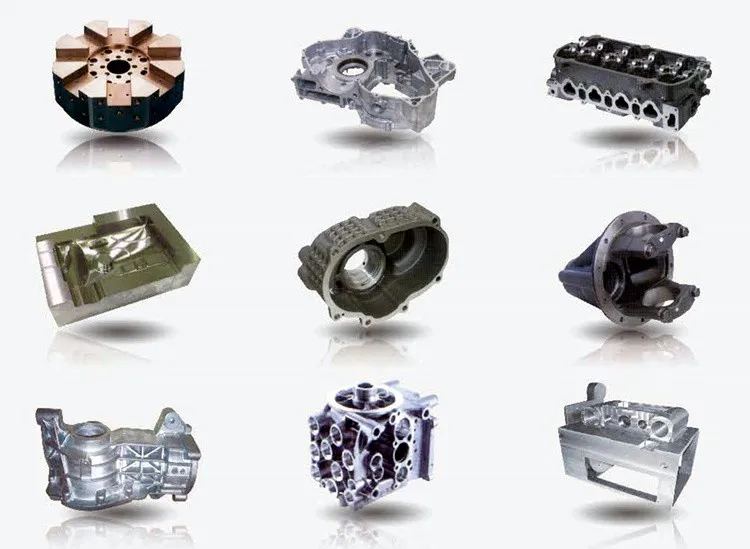

Application

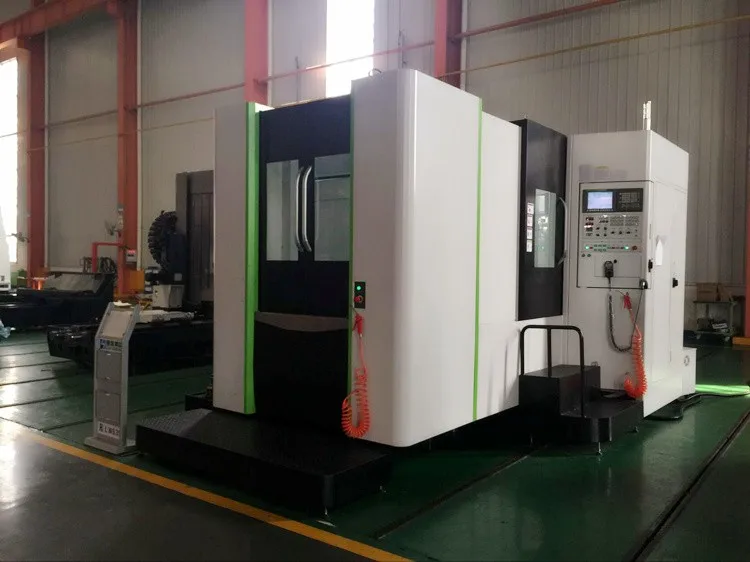

Detection & Packing
Our Company

Dawei Precision Technology


Jiangsu Dawei Precision Technology Co.,Ltd.is a company specialized in researching,developing and manufacturing of horizontal boring and milling machines and horizontal machining centers.The company is joint-ventured by Nantong Guosheng Machinery & Power-generating Group，the professional CNC machining center manufacturer，and advanced technical team from Taiwan.
