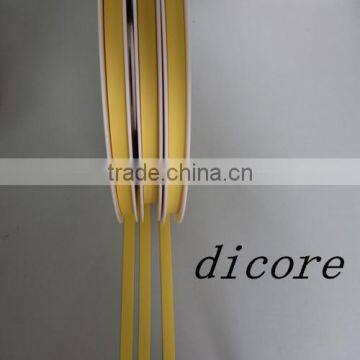

Permanent circuit identification /heat shrink wire marking label

Samples free for samples , welcome to inquiry on our products !

Permanent circuit identification /heat shrink wire marking label

Descriptions :

Hear shrink identification tubing (HSID) are designed to meet the wire and cable marking needs of manufacturers with high performance requirements .Made from permanent  , flame retarded , radiation cross-linked heat shrinkable polyolefin .

Features

>Permanent identification sleeves.

>Computer-printable.

>Lightweight for aerospace applications.

>Choice of Military grade & RoHs Compliant Material or Halogen free Material.

>2:1 and 3:1 shrink ratio.

>Temperature rating +135°C/275°F

>Quick recovery of heat sensitive areas.

Temperature rating

>Operating temperature range: –55°C to +125°C –67°F to +257°F

>Minimum recovery temperature: +85°C/ +185°F

>Totally shrink temperature: +115°C/+239°F

>Maximum storage temperature +50°C /+122°F

HSID-2X, 3X

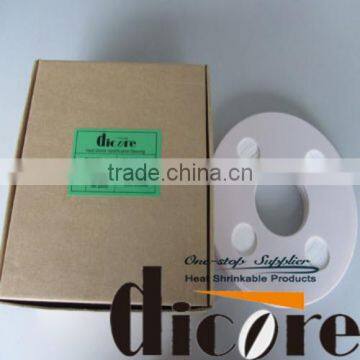

Remarks: Two packing ways:

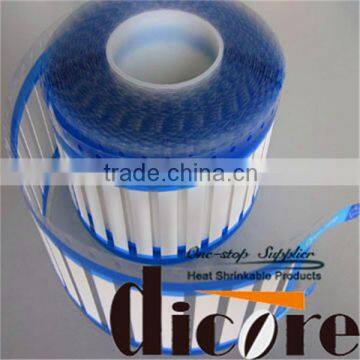

1. Cut in 55mm/ pc, adhibit together in a line and packed in roll (T type)

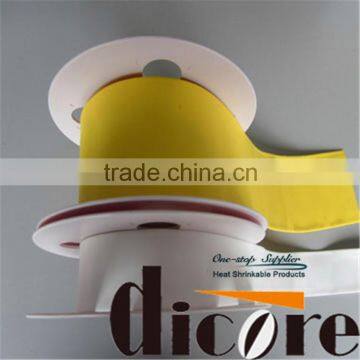

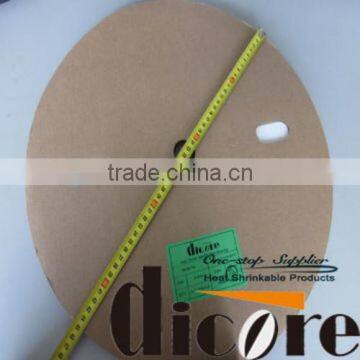

2. Not cut and packed in roll (R type).

Permanent circuit identification /heat shrink wire marking label

Permanent circuit identification /heat shrink wire marking label

Other products:

Company Profile

Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.

Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.

Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:

• One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
• Competitive price and flexible payment terms.
• Abundant stocks and short delivery time.
• Professional exporting experience and best service quality.
