Rubber Flexible Connector With PTFE Liner

Rubber Flexible Connector With PTFE Liner thumbnail-1
Rubber Flexible Connector With PTFE Liner photo-1
US$ 0.1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
BAIMI
Model Number:
SWCPU-PJ-AP23
Contact Supplier Request Quote Chat Now
Hengshui Jinggong Rubber & Plastic Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name BAIMI
Model Number SWCPU-PJ-AP23
Plastic Modling Type Mould

rubber flexible connector with PTFE liner for pump/valve connection

Specifications

Offer universal chemical resistance with good temp. range
Excellent release property
Good electrical insulation

Properties



PTFE lined expansion joint with floating flange

Application for where the need to resist corrosive attack at higher pressures is paramount.

Offer universal chemical resistance with good temp. range

Excellent release property

Good electrical insulation

Vapour resistance




Construction & Material



Tube: PTFE

Frame: Steel Wire

Cover: NR/Synthetic Rubber

End Fitting: Stainless or Carbon Steel floating Flange





rubber flexible connector with PTFE liner

Expansion Joints

Expansion Joints Features
1. Expansion Joints To Absorb large axial displacement between straight tube and support frame , and small horizontal displacement;
2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;
3. Easy cleaning and maintenance.

Applications For the chemical industry, metallurgy, electricity, shipbuilding, construction and other industries.
Application temperature-50 300.

No.

Parts

Materials

1

Flange

SUS304/316L / SS400

2

Bellows

PTFE

3

Inner core

SUS304/316L

4

Restriction Screw

SUS304/S15C

5

Top tube

SUS304/316L/SGP

6

Nut

SUS304/S15



 Detailed show:

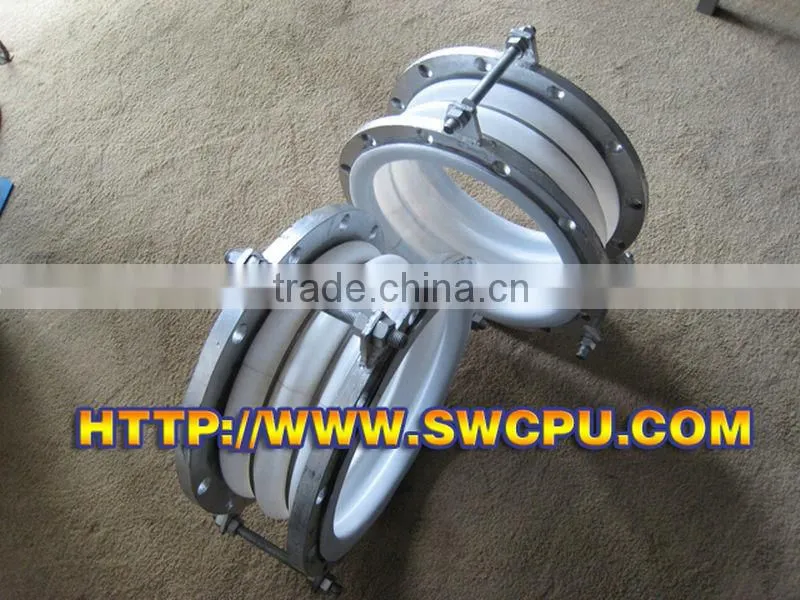

rubber flexible connector with PTFE liner

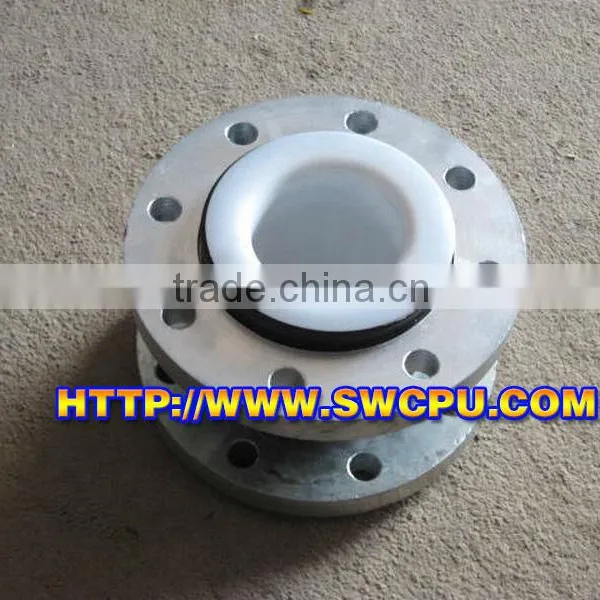

rubber flexible connector with PTFE liner

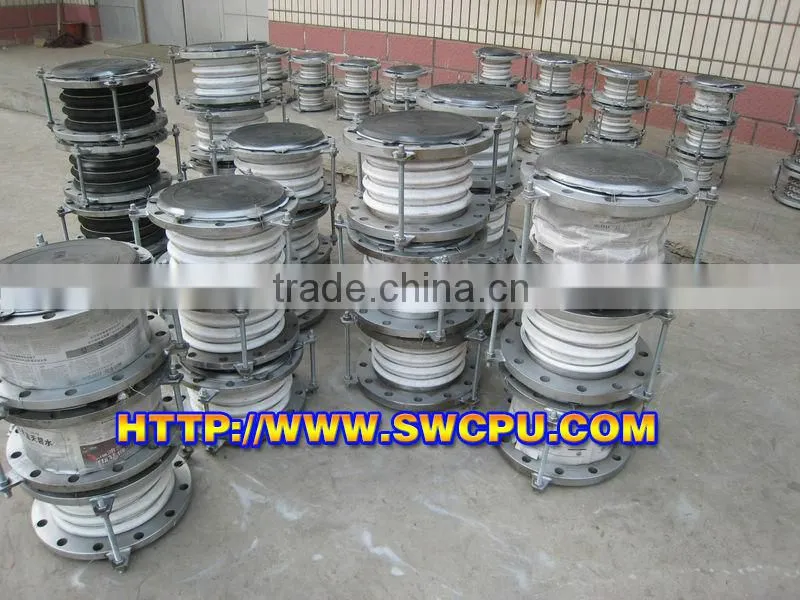

rubber flexible connector with PTFE liner

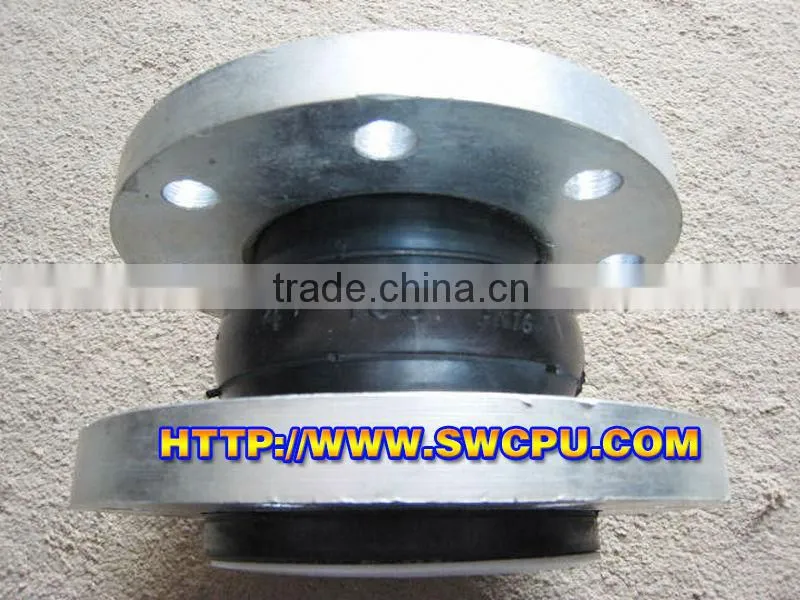

rubber flexible connector with PTFE liner

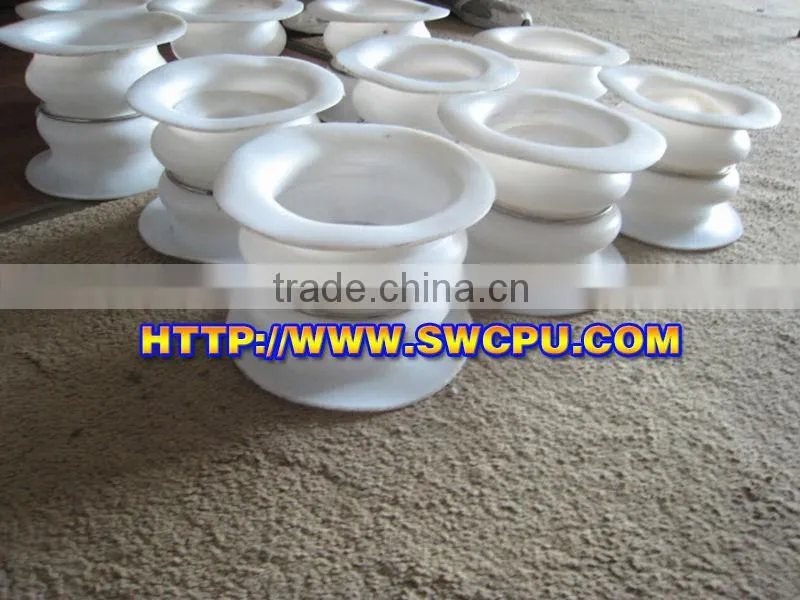

rubber flexible connector with PTFE liner







Technical



Size: I.D. 25mm-2500mm

Work Pressure (Mpa): 1.6 or 1.0

Bursting Pressure (Mpa): 4.8 or 3.0

Temp. Range: -60 to 250 degree Cels

Media: Air, Compressed air, water, sea water, hot water, acid and alkali, oil, etc.

Vacuum (mm/IN Hg): 750 / 30



Note: single arch, double arch, multi arch are also available





 Packing:Standard or as per customers requirements.



Our advantages:

1. Product.



We are a factory specialized in Rubber& Plastic hose pipe sheet Gear impeller

oil hose compensator expansion joint bumper dredge pipeconveyor chains,

belts and related devices and components for 20 years and almost our

products with SGS and ISO approved. We are the supplier of Pepsi,

Master Kong, Pacific Can, etc. Hope to be a partner

of your company.





2. Price.



Our price is realistic and based on reasonable profit.

What's more, we are the factory,

so I think we can provide

competitive price

to you.







3. Quality.



Most of our products export to North America, South America

Europe Russia Africa and south Asia, and our customers

have good impression with our products quality.

We have the long term and faithful

business relations.





Service:







We wish we could cooperate with you in near future!
