LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch

LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-1
LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-2
LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-3
LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-4
LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-5
LED Backlight 10.4 Inch Tft Module Foldable Lcd Monitor With 4-wire Resistive Touch photo-6
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 10.4"
Type:
Resistive
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Products Status Stock
Screen Size Other, 10.4"
Type Resistive
Interface Type USB, Other, DVI, USB, VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI
Resolution 800 x 600
Brand Name SEETEC
Model Number ST1042AHT
Place of Origin Fujian, China

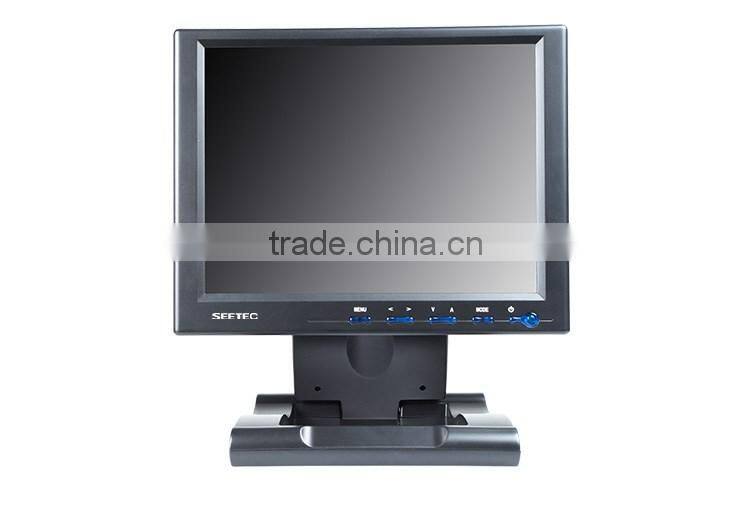

LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch

 LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch



Features



>ST-1042AHT is a 10.4 inch TFT LCD monitor.

> It uses a high quality new LCD Panel,with 800X600 resolution, 250cd/m² high brightness and 70°/70°(L/R) 50°/60°(U/D) wide angle, which can display clear images.

> It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.

 LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch







Parameters

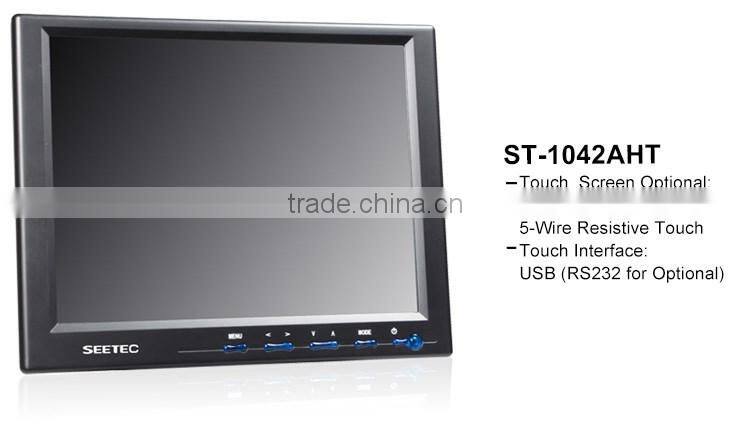

Description 10.4" TFT LCD Touch Monitor w/ HDMI Input
Model ST-1042AHT
Brightness 250cd/m²
Touch  Screen 4-Wire Resistive Touch(5-Wire for Optional)
Touch Interface USB (RS232 for Optional)
Dot Resolution 800*600 pixels (max to1920*1440)
Aspect Ratio 4:3
Contrast Ratio 500:1
Backlight LED
Viewing Angle 70°/70°(L/R) 50°/60°U/D
Input Signal VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI
HDMI Format 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)
Mounting Process Foldable Stand Bracket and VESA 75*75mm
Input Voltage DC9-15V
Power Consumption ≤7W
workingTemperature -20℃~60℃
storage Temperature -30℃~70℃
Unit Size 252L×216W×73H mm(folding)
252L×185W×267H mm(unfolding)
Unit Weight 1520g





Product Description

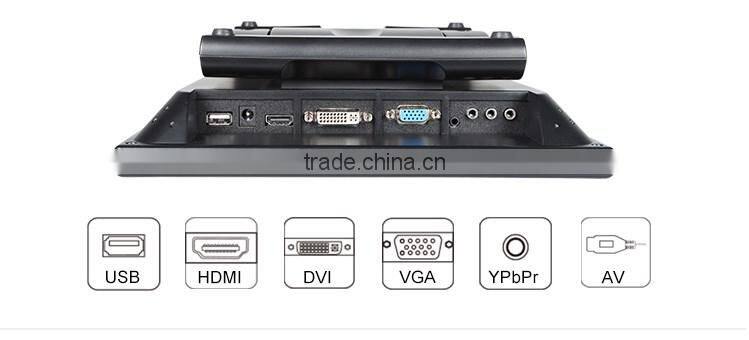

Abundant Interface:

Even small size as 10.4 inch,ST-1042AHT also has VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI input,

which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.

>On HDMI Mode,using under scan function,it is possible to display Full HD videos.



 LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch

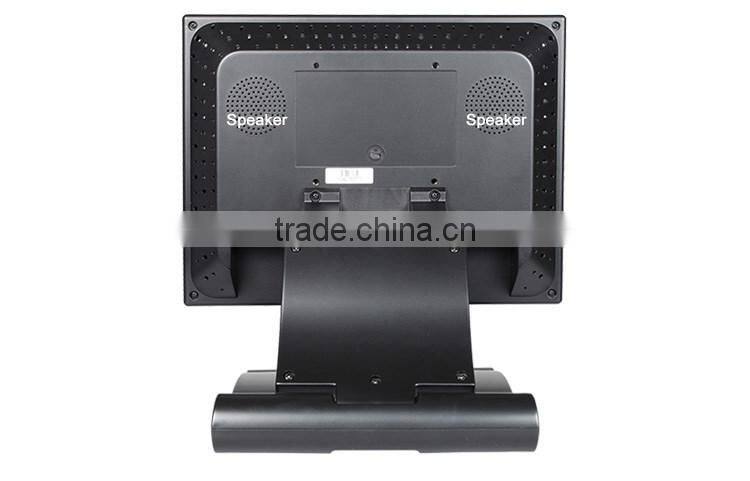

Speaker Built-in:

As the built-in speaker,if there is audio output it does not need to connect external speaker



LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch

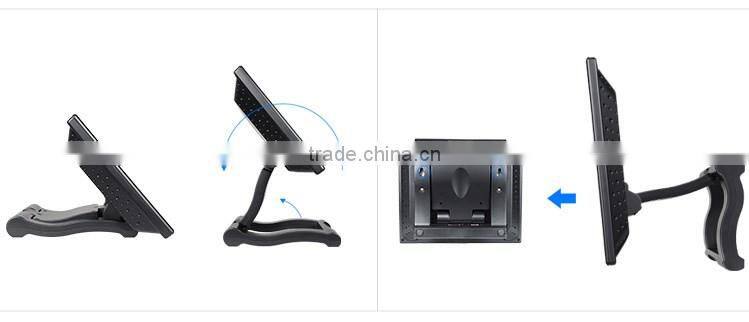

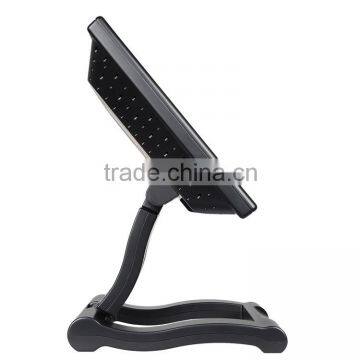

Folding Bracket

Possible to stretch & folding

> Wall Mount possible





 LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch

Support System for Touch:



MAC

Vista

Linux

Win CE

MS-DOS

Window XP

Window NT4

Window 9X/ME



Application

This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.



LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch





Packaging & Shipping



Gift&neutral box 10 pcs/carton



Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate



Our Services



1.Powerfull Research&Development Experience

2.OEM&ODM Ability

3.Strict QC TEST Control

4.EASY & FAST Communicate

5.Responsible After Service





Company Information



SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.

Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.

SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.

We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.

We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.

 LED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touchLED backlight 10.4 inch tft module foldable lcd monitor with 4-wire resistive touch
