10 Inch Lcd Panel Tft Display Hdmi Dvi Vga Ypbpr Input Multi-interface Monitor
- xiamen
- T/T Money Gram
You May Like
-
7 Inch Small and Poratble Public Monitor With HDMI VGA Input 4-wire Resistive Touch
-
10.1 Inch Hdmi Video Audio Input Wide Screen Standalone Car Application Cctv Display
-
10.1 Inch Tft Lcd Panel Hdmi Vga Video Input Touch Screen Folded Bracket Studio Monitor
-
Used in the Flat 7 Inch Screen 4-wire Resistive Touch Small Monitor With Hdmi Input
-
Small 7 Inch Touch Panel Tft Lcd Display High Brightness Speaker Built in Taxi Monitor
-
HDMI Vga Input Resistive Touch Lcd Panel Fold Bracket Mounting 10.1'' Cctv Display
Product Details
| Products Status | Stock | Screen Size | Other, 7" | |
| Type | Resistive | Interface Type | USB, Other, USB, VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional) | |
| Resolution | Other, 800X480 | Brand Name | SEETEC | |
| Model Number | ST100AHT | Place of Origin | Fujian, China |
Product Description
10 inch lcd panel tft display hdmi dvi vga ypbpr input multi-interface monitor

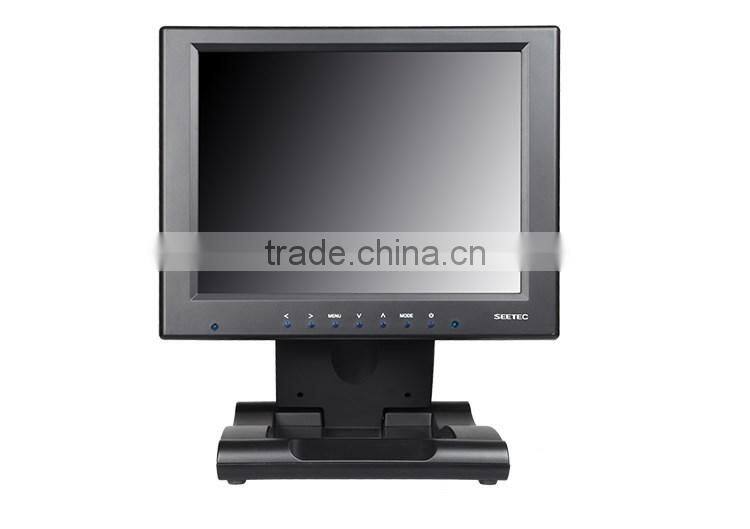

>ST-100AHT is a 10 inch TFT LCD monitor.
> It uses a high quality new LCD Panel,with 1024X768 resolution, 250cd/m² high brightness and 75°/75°(L/R) 60°/70°U/D wide angle, which can display clear images.
> It uses LED backlight,which has advantage like Energy-Saving, Long life and environmental protection.
| Description | 10" TFT LCD Touch Monitor w/ HDMI Input | ||
| Model | ST-100AHT | ||
| Brightness | 250cd/m² | ||

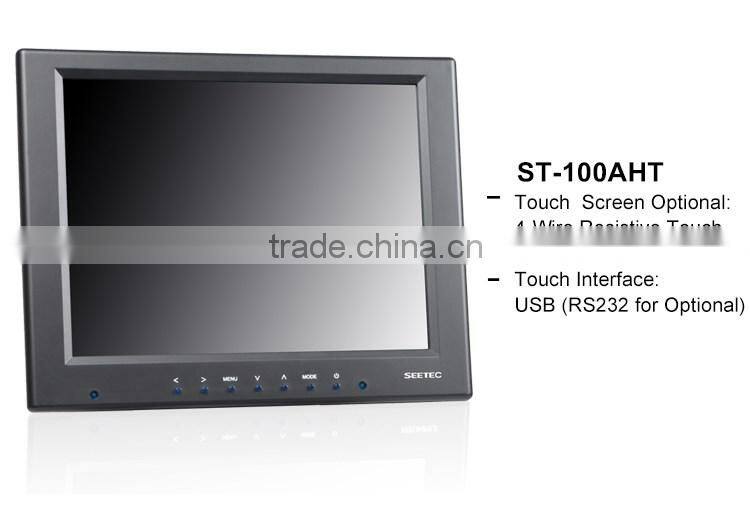

| Touch Screen | 4-Wire Resistive Touch(5-Wire for Optional) | ||
| Touch Interface | USB (RS232 for Optional) | ||
| Dot Resolution | 1024*768 pixels (max to1920*1440) | ||
| Aspect Ratio | 4:3 | ||
| Contrast Ratio | 600:1 | ||
| Backlight | LED | ||
| Viewing Angle | 75°/75°(L/R) 60°/70°U/D | ||
| Input Signal | VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI | ||
| HDMI Format | 480i,480p,576i,576p,720p,1080i,1080p(50/60Hz) | ||
| Mounting Process | Foldable Stand Bracket and VESA 75*75mm | ||
| Power Consumption | ≤7W | ||
| Input Voltage | DC9-15V | ||
| workingTemperature | -20℃~60℃ | ||
| storage Temperature | -30℃~70℃ | ||
| Unit Size | 252.6Lx197.2Wx40.2H mm | ||
| 252.6Lx208Wx74H mm(folding) | |||
| 252.6Lx185Wx296H mm(unfolding) | |||
| Unit Weight | 1152 g | ||

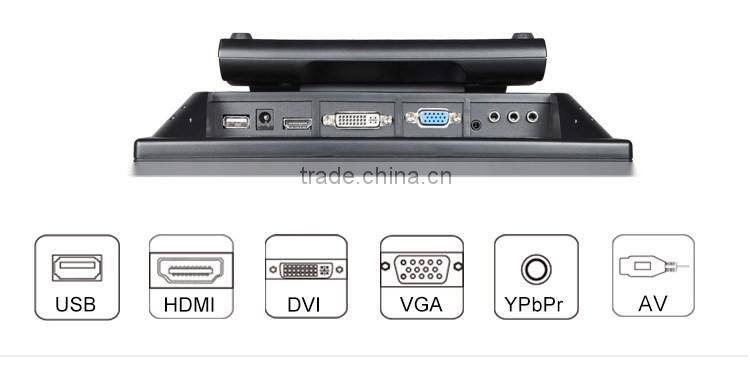

Abundant Interface:
Even small size as 10 inch,ST-100AHT also has VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI input,
which can support many devices like PC, DVR, Camera, DVD,HD Video Player and so on.
>On HDMI Mode,using under scan function,it is possible to display Full HD videos.
Speaker Built-in:
As the built-in speaker,if there is audio output it does not need to connect external speaker equipment

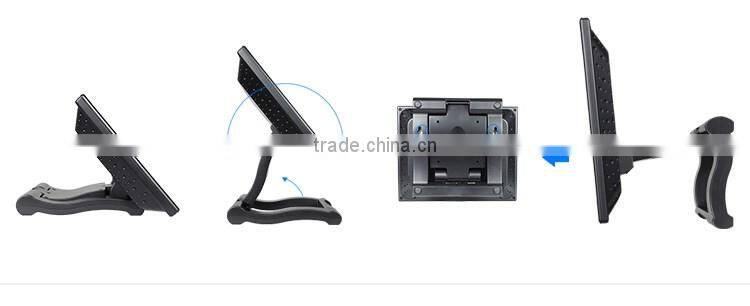

Folding Bracket
> Wall Mount possible
> Possible to stretch & folding

> Wall Mount possible
> Possible to stretch & folding
Support System for Touch:
MAC
Vista
Linux
Win CE
MS-DOS
Window XP
Window NT4
Window 9X/ME
This product employs new integrate circuits and high quality TFT LCD Screen. Advanced advantage is low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with. The color TFT LCD is the most suitable display for VGA,VCD, DVD and GPS system for motorcars and ships. It also can be used in the office, in flat, at home, ATM, Automation, Gaming, Kiosk, Transportation, Military,Oil Gas & Energy,Retail and also in other suitable position. You will certainly benefit from this monitor in lots of ways,to some of them:convenience,safety,space-saving.
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
SEETEC designs and manufactures small HD LCD monitors. Products cover on-camera LCD field monitor, VGA/HDMI/HD-SDI LCD monior, LCD touchscreen monitor,Industril PC etc.
Our products are finely engineered to ease of use, maximum portability, dependability and durability. We make products at the finest quality you can find in the video and photography field.
SEETEC R&D core team leaders are composed by a dozen senior technical engineers have years of experience. They ensure our products are innovative and consistently push the boundaries of both technology and design.
We listen to every customer, and take care of their feedback and advices. It is a good way to improve our products and service. Our mission is to develop creative products to customers with a good experience.
We have also several years experience in OEM & ODM orders, and we can meet a variety of customized requirements of customers worldwide. If you have any interest or advice, please feel free to contact us.
