Specifications
1. High efficiency, fine final product.2. Chrome hammer and special impact plate
3. Easy maintenance

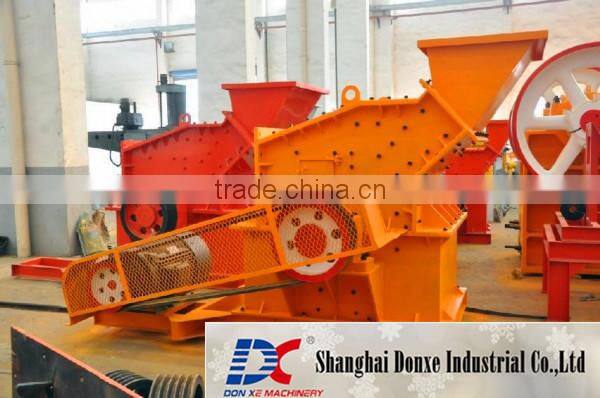

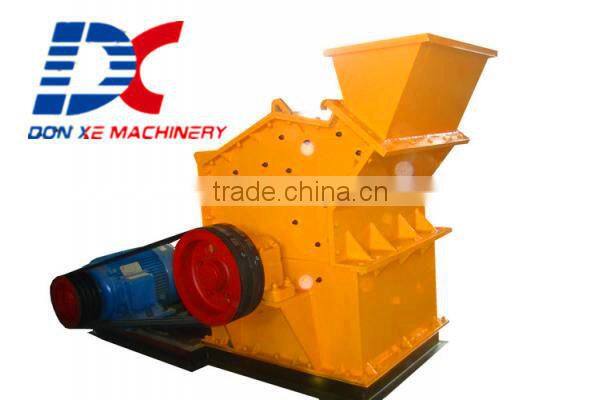

1. Description of Fine Crusher
Fine crusher is digests domestic and foreign vanguard technology, unifies newest generation of highly effective small aggregate crusher which the domestic correlation profession concrete operating mode condition develops. Uses in each kind of medium degree of hardness solid material , in cement industry, limestone in broken bits, paste, chamotte, and so on mix material may the calcium phosphide in broken bits, the dolomite ,and so on pearl ore ,can widely use in the building materials, the chemical fertilizer, industry sector and so on mining and fire-proof material.
2. Main Features of Fine Crusher
(1).Small feed-out granularity
(2).Uniform particle-type uniform
(3).Large capacity
(4).Long life hammerhead
(5).Small matching power
(6).Change 3 grade crushing to 2 grade crushing
(7). Process simplification
3. Working Principle of Fine Crusher
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw.
The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet.
Main Technical Parameters of Fine Crusher
Model | Roller Size (mm) | Max Feeding Size(mm) | Output Size(mm) | Discharging Opening Size (mm) | Capacity (t/h) | Motor Power (kw) |
800× 400 | 800*400 | 120 | < 20 | 5-20 | 20-30 | 45-55 |
800× 600 | 800*600 | 180 | < 20 | 5-20 | 35-55 | 45-55 |
800× 800 | 800*800 | 180 | <20 | 5-20 | 35-80 | 45-55 |
1010× 1010 | 1010*1010 | 180 | <20 | 5-20 | 45-75 | 55-75 |
1200× 1000 | 1200*1000 | 180 | < 20 | 5-20 | 80-110 | 100-110 |
1200× 1200 | 1200*1200 | 180 | < 20 | 5-20 | 100-110 | 100-132 |
1400× 1400 | 1400*1400 | 190 | < 20 | 5-20 | 100-150 | 160 |
1600× 1600 | 1600*1600 | 190 | <20 | 5-20 | 170-250 | 250 |
1800× 1800 | 1800*1800 | 190 | < 20 | 5-20 | 250-310 | 315 |
• one year guarantee for whole machine except man-made damage.
• technical support by e-mail on workday
•during the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
• the buyer shall afford the travelling expense (including the expense of airline ticket, train ticket, board and lodging); the buyer shall also pay the service fee of USD 80/day/person.
• If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
Packaging Details:
1.Outside package:Standard wooden case or bare packaging
2.Inner package: stretch film
Delivery Detail:
about 25 workdays after payments
