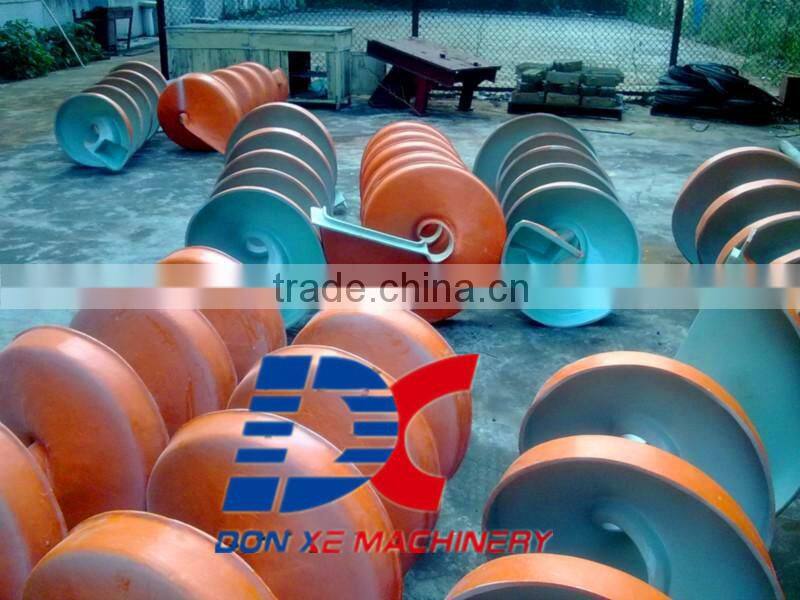

Specifications
1.simple structure,light weight and low power2.easy and reliable operation
3.high separating efficiency
Application of spiral chute
1.spiral chute is the best separating equipment, especially for separating sand ore in beach, riverside, seashore and stream.
tal mines such as iron, tin, tungsten, tantalum-niobium, gold ore, monazite, rutile, zircon and other metals.
3.non-metallic minerals coal mine, coal of coal chemical industry, the sulfur-selection factory.
Working principle of spiral chute

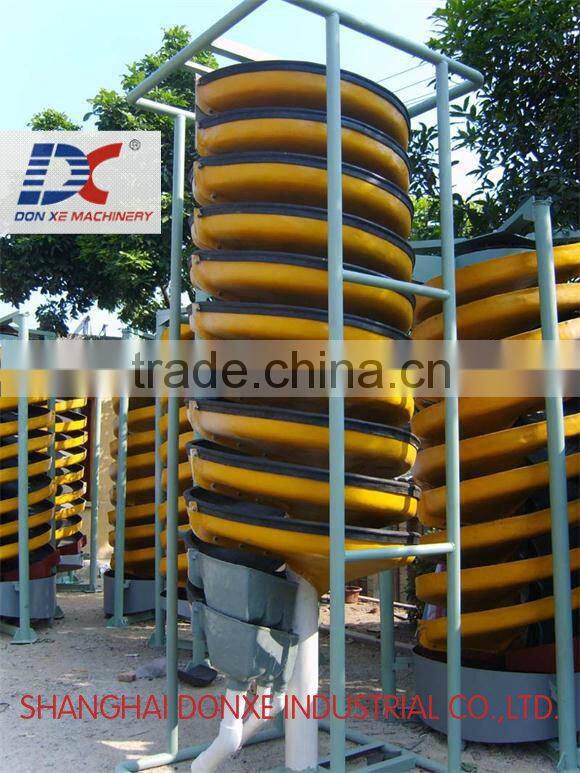

Make the screw chute stand, adjust the vertical line, fixed the proper place with the iron structure or wood, make the ore sand deliver to two feed openings of the screw chute top, enter enough water, adjust the mash chrome, the mash flows freely from the high, produce the inertial force at the speed of the rotary, divided the sand and ore, the concentrate comes into bucket with the tract, gangue comes into the bucket with the tract to the sand pool, and pump off, complete the whole process.
Main Technical Parameters:
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Spiral Diameter (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | |
Spiral Pitch(mm) | 1200 | 720/540 | 900/720 /540 | 675/540 /405 | 450/360 /270 | 240/180 | |
Starts | 3 | 4 | 4 | 4 | 2 | 2 | |
Feeding Sizes (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding Density (%) | 20-45 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 | |
Capacity (t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 | |
Dimension | Length | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
Width | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Height | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | |
Weight(Kg) | 1100 | 800 | 600 | 400 | 150 | 50 | |
• one year guarantee for whole machine except man-made damage.
• technical support by e-mail on workday
•during the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.
• the buyer shall afford the travelling expense (including the expense of airline ticket, train ticket, board and lodging); the buyer shall also pay the service fee of USD 80/day/person.
• If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.
Packaging Details:
1.Outside package:Standard wooden case or bare packaging
2.Inner package: stretch film
Delivery Detail:
about 25 workdays after payments
