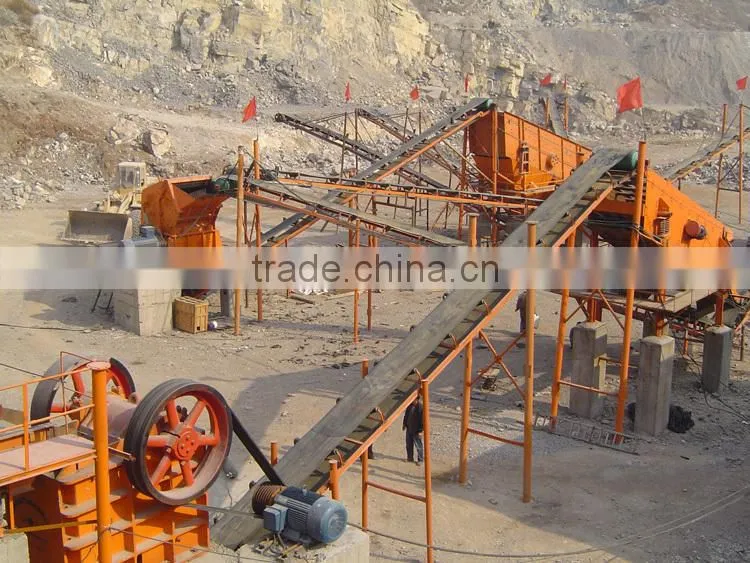

Donxe offers turnkey general contracting service of gravel and aggregate production line, stone crushing plan project ,including crushing, screening and grinding process.
Donxe has more than 5 years’ experience of mining andbeneficiation, its equipment investment is 25-50% less than conventional production line, R&D and environmental protection.
This stone production line is suitable for artificial gravel making or processing hard limestone , granite ,bassalt , cobble and other aggregates . It is applicable to hydroelctric , building materials , and city construction . Apply to produce and process the road surface material , special railway sandstone aggregate , sandstone material of the hydroelectrical station ,gravel material using of the harbor as well as airport pavement .
Application:
Granite, basalt, river stone, gold ore, iron ore stone crushing plant
Attention: If the feeding size is smaller than 115mm, 150mm, 200mm, it can be crushed by the cone crusher directly, and avoid the primary stage crushing.
General selection and configuration of hard stone crushing plant
Capacity(tph) |
30-50 |
50-80 |
80-120 |
120-180 |
180-250 |
250-320 |
Vibrating Feeder |
ZSW850x3000 |
ZSW850x3000 |
ZSW960x3800 |
ZSW4900x1100 |
ZSW4900X1100 |
ZSW5900x1100 |
Jaw crusher |
PE400X600 |
PE500X750 |
PE600X900 |
PE750X1060 |
PE900X1060 |
PE900X1200 |
Cone crusher |
PYB900 |
CS75 |
PYB1200 |
CS160 |
PYB1750 |
CS160X2 |
Vibrating Screen |
YK1245 |
YK1545 |
YK1848 |
YK1860 |
YK2160 |
YK1860X2 |
Belt conveyor |
B500 |
B650 |
B800 |
B1000 |
B1000 |
B1200 |
Feeding size |
<340MM |
<420MM |
<500mm |
<630mm |
<685 |
<750mm |
Flow Chart of stone crushing plant:
1: ZSW Vibrating Feeder
Vibrating feeder made by our company are liner vibrating feeder series; it can feed material continuously and evenly for crushing machinery, and screen the materials.

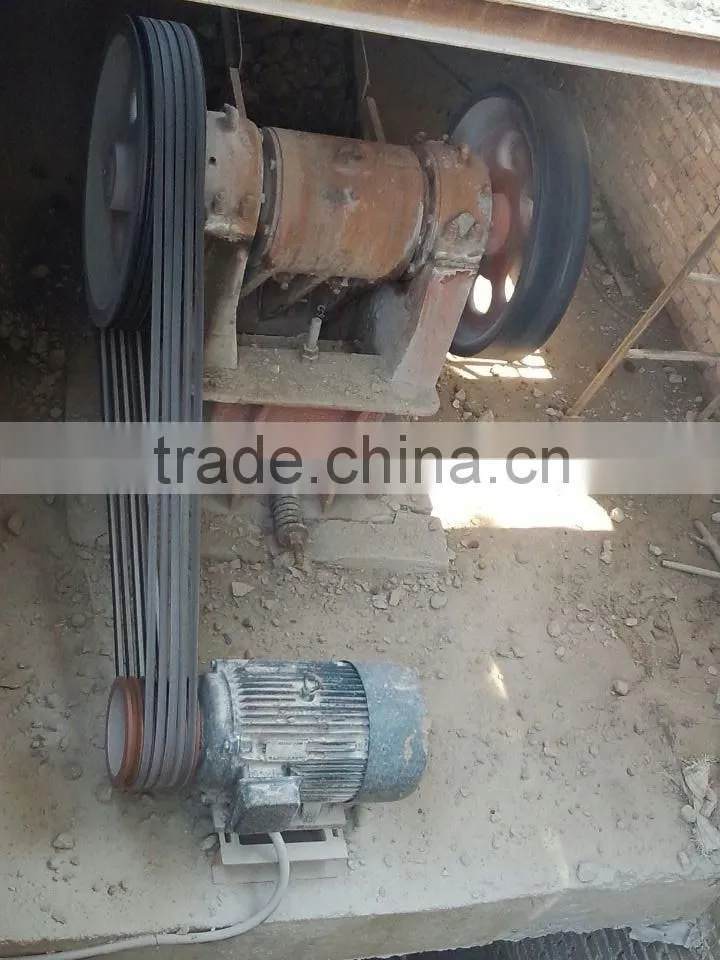

2: PE Jaw Crusher
PE series Jaw Crusher is mainly used to crush kinds of ining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry

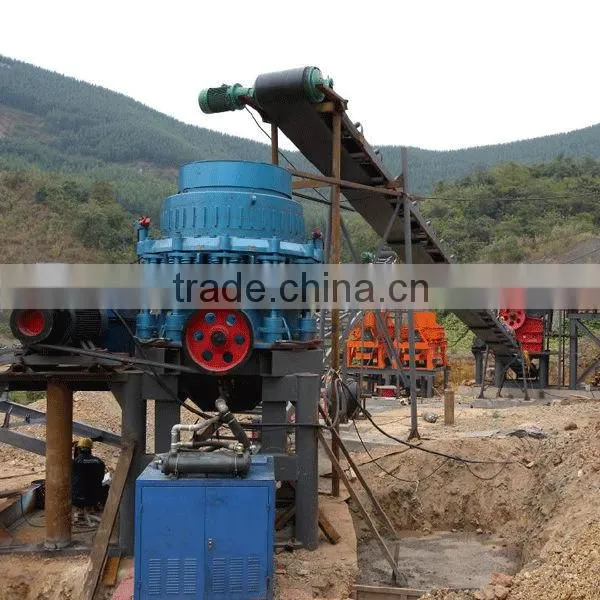

3: Cone crusher
Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. Our cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc. In a whole production line, usually, the cone crusher is used for secondary or tertiary crushing process, or first crushing.

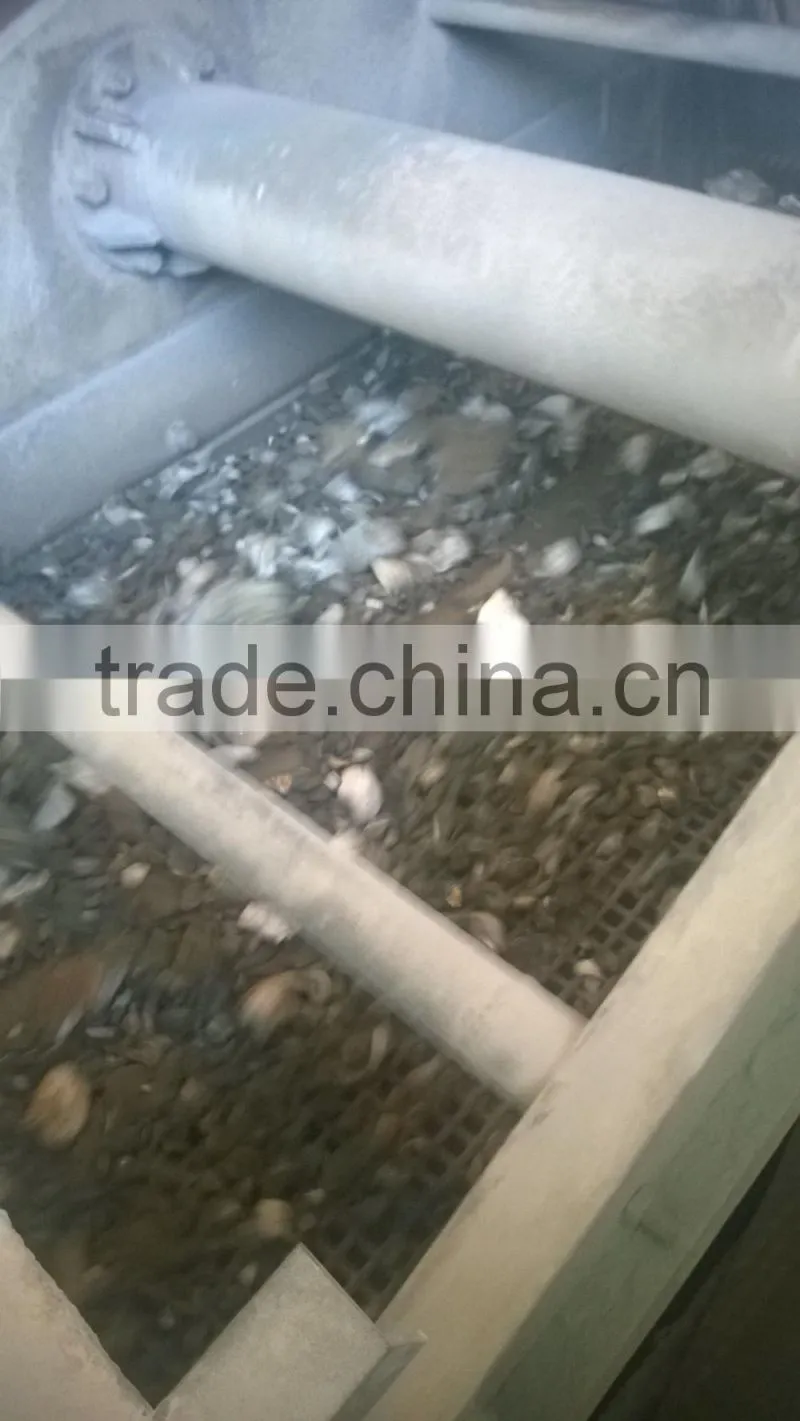

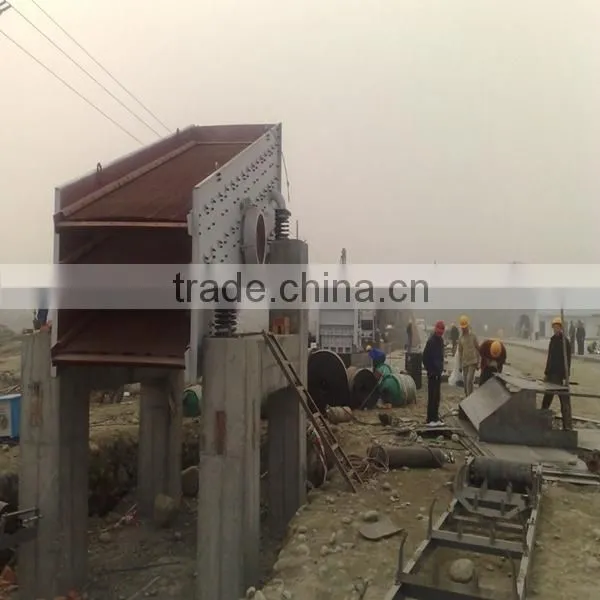

4: vibrating screen
Vibrating screen specializes in screening and separating stones in the quarry. It is also used in coal processing, mine processing, building materials, power and chemical industries to classify the materials. Our YK and YZ series are the latest types in China. Having reached the world advanced technical levels, the vibrating screen spring designed and made by our company are of high precision and efficiency. They are increasingly popular in the customers.
Our company is a large industrial machinery manufacturers in China and focus on mining machinery, complete sets of processing equipment, building materials equipment of rotary kiln. Our company has the quite rich experience and solid strength in the independent design and manufacture complete sets of crusher, beneficiation equipment, rotary kiln, making sand production line, stone production line, sand production line and complete set of equipment of cement production line, etc. And it has through the strict international quality system certification. The high-tech content, high reliability, low maintenance cost make our products has been at the industry-leading level. At present, our factory has been exported to more than 10 countries, used in mining and construction widely.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.
