Specifications

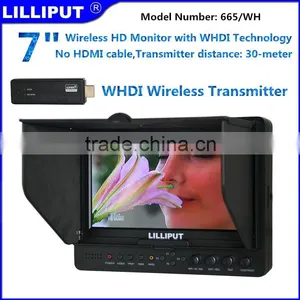

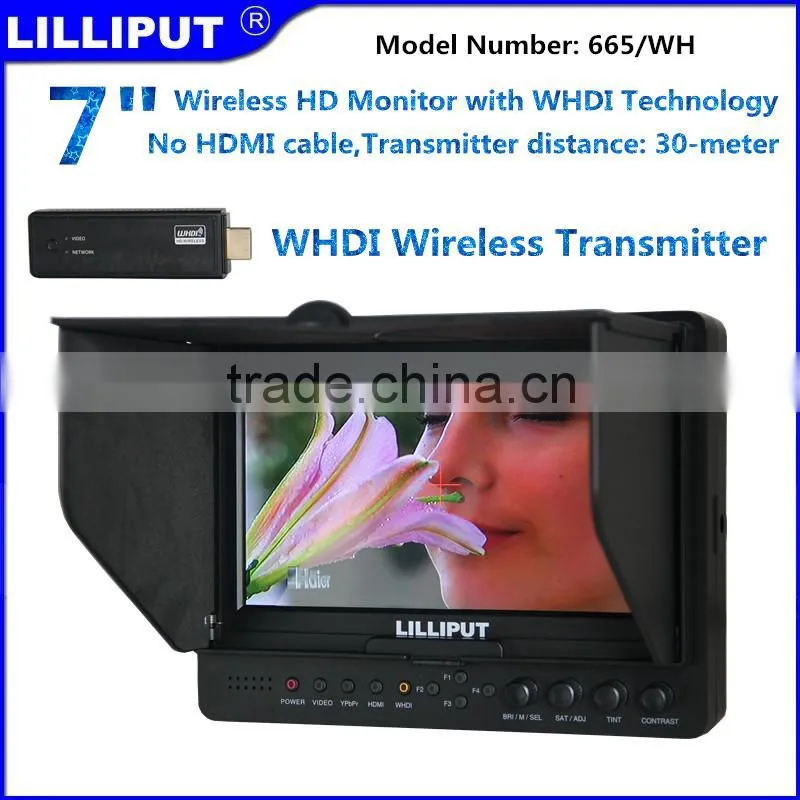

Lilliput 665/WH 7 inch Wireless HD Monitor Transmitter distance 30-meter With HDMI Input

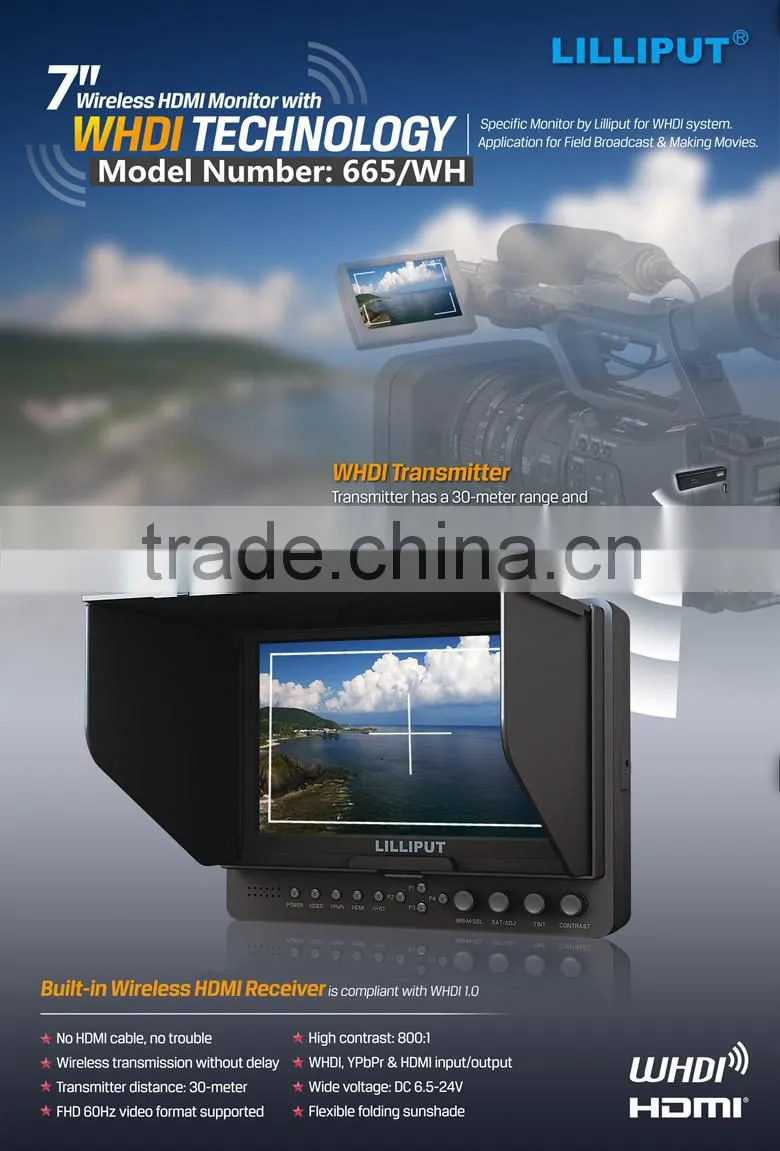

7" Wireless HDMI Monitor with WHDI Technology
Specific Monitor by Lilliput for WHDI system
Application for Field Broadcast & Making Movies
WHDI Transmitter
Transmitter has a 30-meter range and supports up 1080p 60Hz resolution.
Built-in Wireless HDMI Receiver is compliant with WHDI 1.0
No HDMI cable, no trouble
Wireless transmission without delay
Transmitter distance:30-meter
FHD 60Hz video format supported
High resolution: 1024×600,
High contrast: 800:1,
WHDI, YPbPr, Video & HDMI input/output
Wide voltage: DC 6.5-24V
Flexible folding sunshade

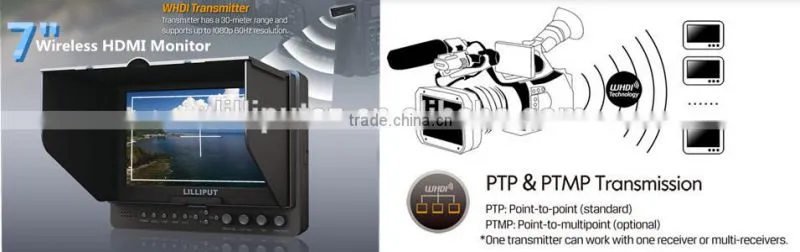

PTP & PTMP Transmission
PTP: Point-to-point (standard)
PTMP: Point-to-multipoint (optional)
One transmitter can work with one receiver or multi-receivers
WHDI VIDEO FORMAT:
Full HD:1080P 60/50/30/25/24Hz
HD:1080i 60/50Hz, 720p 60/50Hz
576p 50Hz, 576i 50Hz
SD: 480P 60Hz, 480i 60Hz
HDMI VIDEO FORMAT:
Full HD: 1080P 60/59.94/50/30/29.97/25/24/23.98/23.976Hz
HD: 1080i 60/59.94/50Hz, 1035i 60/59.94Hz
720p 60/59.94/50/30/29.97/25Hz
SD: 576i 50Hz, 486i 60/59.95Hz, 480P 59.94Hz
Functions:
Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Wireless Monitor Systems
Each transmitter has an HDMI 1.3 interface, a 30-meter range and supports a maximum video resolution 1080p 60Hz. with no line of sight restriction.
The 665wh monitor receivers and transmitters are compliant with WHDI 1.0 and are HDCP copy protection compliant. Uncompressed video and audio is transmitted wirelessly with less than a 1 millisecond delay.
The 665wh system uses of lilliput most popular Camera-top field monitors and exciting new WHDI wireless technology. Together they allow freedom of movement without the restraints of cables during video production.
Specifications:
Panel:7" LED backlit
Physical Resolution:1024×600, support up to 1920×1080
Aspect Ratio:16:9
Brightness:250cd/m2
Contrast:800:1
Viewing Angle:160°/150°(H/V)
INPUT signal: WHDI*1, HDMI*1, YPbPr*3(BNC), VIDEO*1, AUDIO*1
OUTPUT signal: VIDEO*1
POWER Current:800mA
Input Voltage:DC 6.5-24V(XLR)
Power Consumption:≤10W
Operating Temperature:-20°C~60°C
Storage Temperature:-30°C~70°C
Dimension(LWD):194.5×150×38.5 / 158.5mm (with)
Standard accessories:
1. WHDI transmiter & USB power cable*1
2. Flexible folding sun shade*1
3. Battery plate :2 piece
(F-970, QM91D, DU21 or LP-E6,choose 2 of them.We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
4. Battery plate bracket*1
5. DC adapter*1
6. HDMI A/C cable*1
7. Manual*1
Optional accessories:
8. Li-ion battery*1
9. V-mount battery plate*1
10. Anton mount battery plate*1
11. Shoe mount*1
