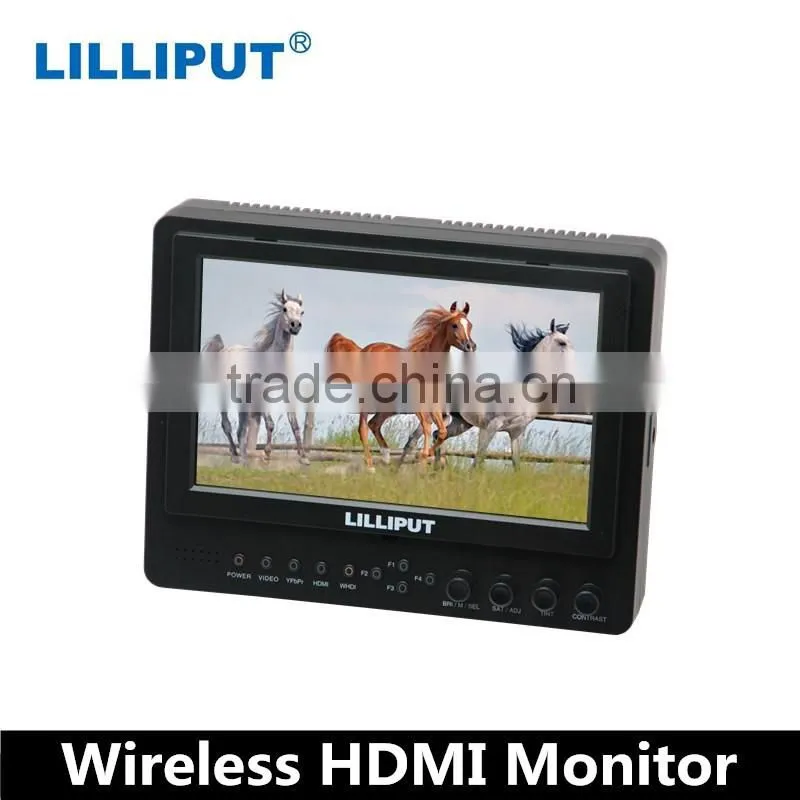

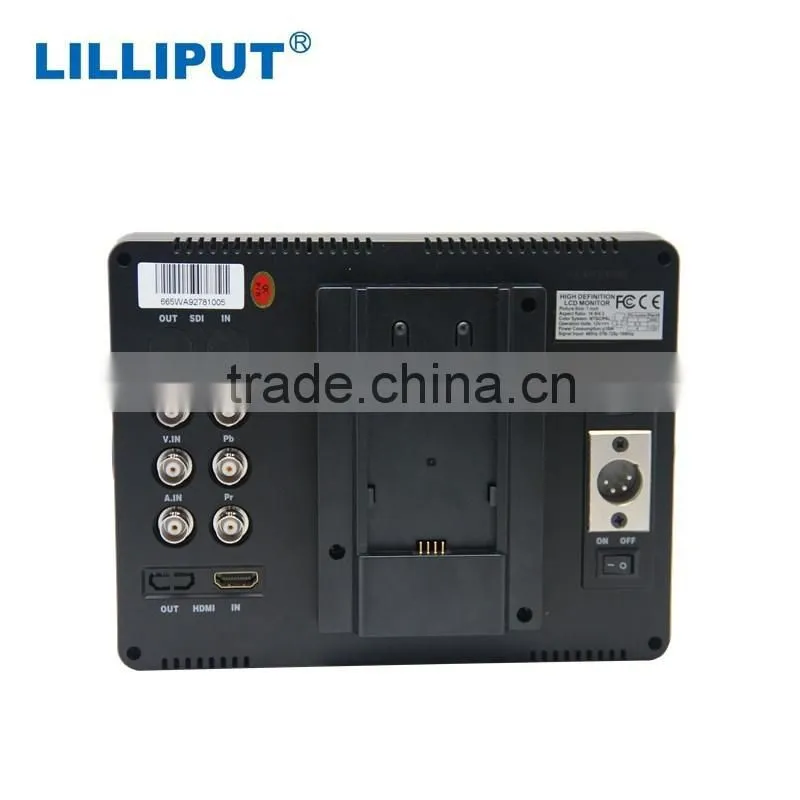

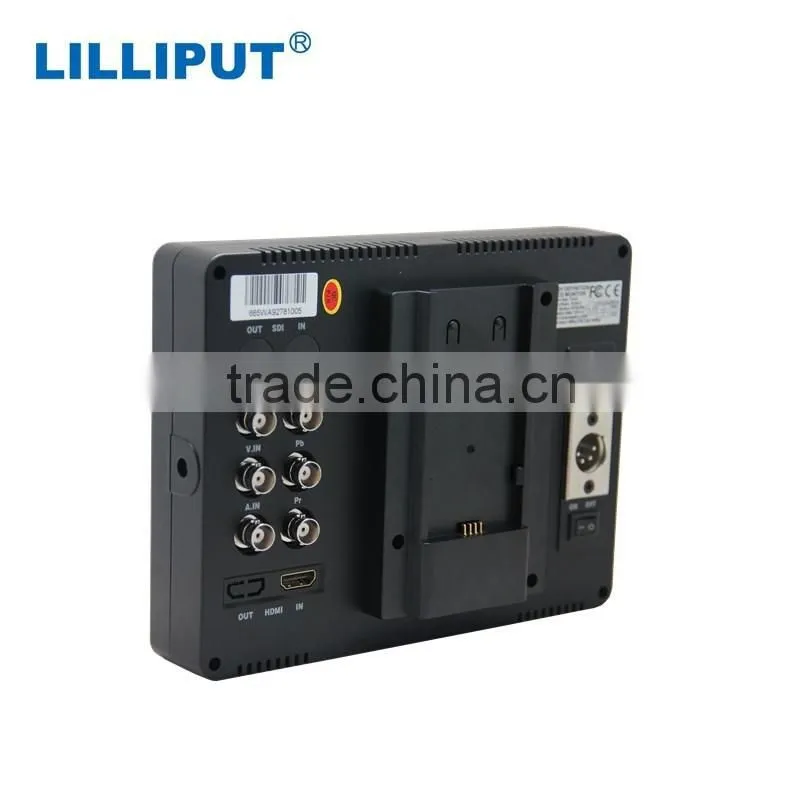

7 inch Wireless LCD HDMI Monitor Wiht Video Input
7" Wireless HDMI Monitor with WHDI Technology
Specific Monitor by Lilliput for WHDI system
Application for Field Broadcast & Making Movies
WHDI Transmitter
Transmitter has a 30-meter range and supports up 1080p 60Hz resolution.
Built-in Wireless HDMI Receiver is compliant with WHDI 1.0
No HDMI cable, no trouble
Wireless transmission without delay
Transmitter distance:30-meter
FHD 60Hz video format supported
High resolution: 1024×600,
High contrast: 800:1,
WHDI, YPbPr, Video & HDMI input
Wide voltage: DC 6.5-24V
Flexible folding sunshade
PTP & PTMP Transmission
PTP: Point-to-point (standard)
PTMP: Point-to-multipoint (optional)
One transmitter can work with one receiver or multi-receivers
Functions:
Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Specifications:
DISPLAY |
Panel |
7" LED backlit |
Physical Resolution |
1024×600, support up to 1920×1080 |
|
Aspect Ratio |
16:9 |
|
Brightness |
250cd |
|
Contrast |
800:1 |
|
Viewing Angle |
160°/150°(H/V) |
|
INPUT |
WHDI |
1 |
HDMI |
1 |
|
YPbPr |
3(BNC) |
|
VIDEO |
1 |
|
AUDIO |
1 |
|
OUTPUT |
HDMI |
1(optional) |
VIDEO |
1 |
|
POWER |
Current |
800mA |
Input Voltage |
DC 7-24V(XLR) |
|
Battery Plate |
V-mount / Anton Bauer mount / |
|
Power Consumption |
≤10W |
|
ENVIRONMENT |
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
|
DIMENSION |
Dimension(LWD) |
194.5×150×38.5 / 158.5mm (with cover) |
Weight |
560g / 720g (with cover) |
|
VIDEO FORMAT |
WHDI(wireless HDMI) |
1080p 60/50/30/25/24Hz |
HDMI |
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976Hz |
Standard accessories:
1. WHDI transmiter & USB power cable*1
2. Flexible folding sun shade*1
3. Battery plate :2 piece
(F-970, QM91D, DU21 or LP-E6,choose 2 of them.We would send F970 and LP-E6 as default, if you need other option, please contact us when you order. )
4. Battery plate bracket*1
5. DC adapter*1
6. HDMI A/C cable*1
7. Manual*1
Optional accessories:
8. Li-ion battery*1
9. V-mount battery plate*1
10. Anton mount battery plate*1
11. Shoe mount*1
