Lilliput 10.1" Touch Screen HDMI Monitor 4-wire Resistive Touch Panel

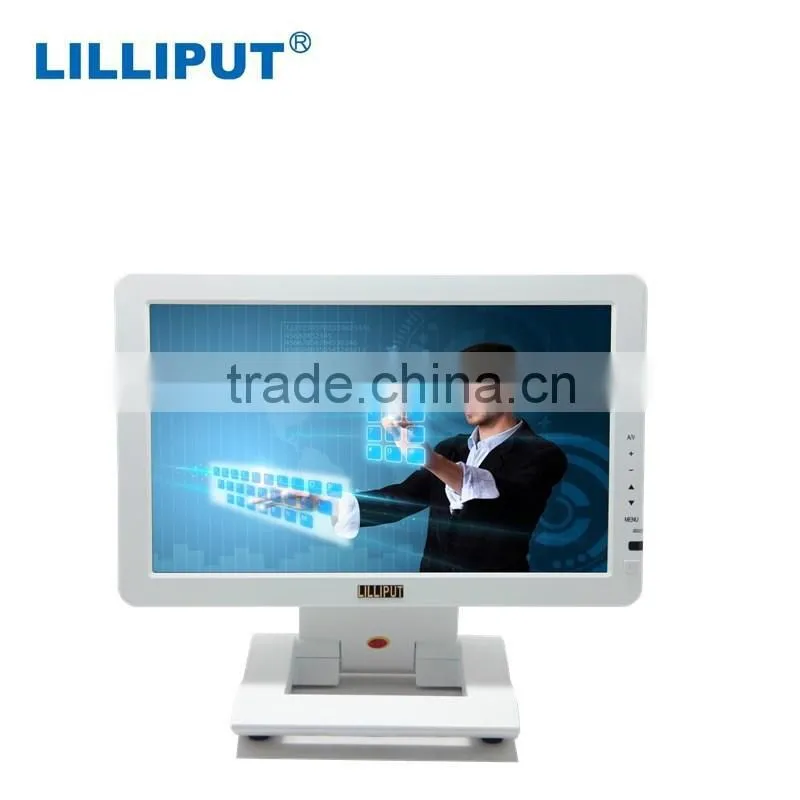

The Lilliput FA1011-NP/C/T is a 10.1 inch 16:9 LED touch screen monitor with HDMI, DVI, VGA and video-in.
Note: FA1011-NP/C/T with touch function.
10.1 inch monitor with wide screen aspect ratio
FA1011 is Lilliput's best-selling 10" monitor. The 16:9 wide screen aspect ratio makes FA1011 ideal for a variety of AV applications - you can find the FA1011 in TV broadcast rooms, audio visual installations, as well as being a preview monitor with professional camera crews.
Fantastic colour definition
FA1011 boasts the richest, clearest and sharpest picture of any Lilliput monitor thanks to a high contrast ratio and LED backlight. The addition of the matte display means that all colours are well represented, and leaves no reflection on the screen. What's more, LED technology brings great benefits; low power consumption, instant-on back light, and consistent brightness over years and years of use.
high phycial resolution
Natively 1024×600 pixels, FA1011 can support video inputs up to 1920×1080 through HDMI. It supports 1080p and 1080i content, making it compatible with most HDMI and HD sources.
Touch screen model available
FA1011 is available with a 4-wire resistive touch screen. Lilliput continually stocks both non-touch screen and touch screen models, so customers can make a choice that best suits their application. FA1011-NP/C/T (touch screen model) can be found in ambitious and interactive media installations, particularly in point of sale and interactive digital signage.
Complete range of AV inputs
Customers don't need to worry about if their video format is supported, the FA1011 has HDMI/DVI, VGA and composite inputs. No matter what AV device our customers are using, it will work with the FA1011, whether that be a computer, Bluray player, CCTV camera, DLSR camera - customers can be certain their device will connect to our monitor!

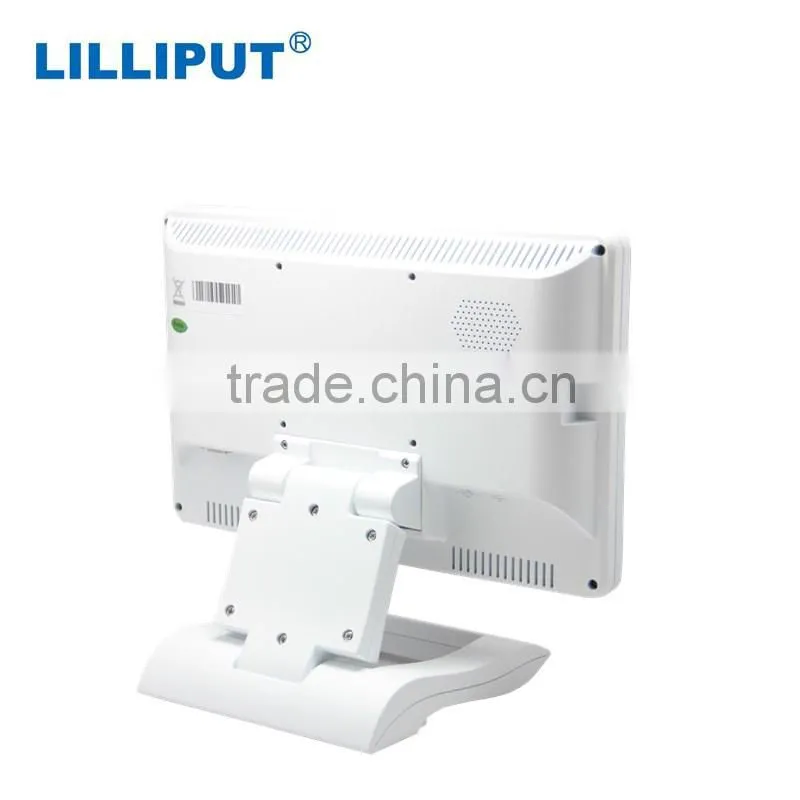

Two different mounting options
There are two different mounting methods for FA1011. The built-in desktop stand provides sturdy support for the monitor when set up on a desktop.

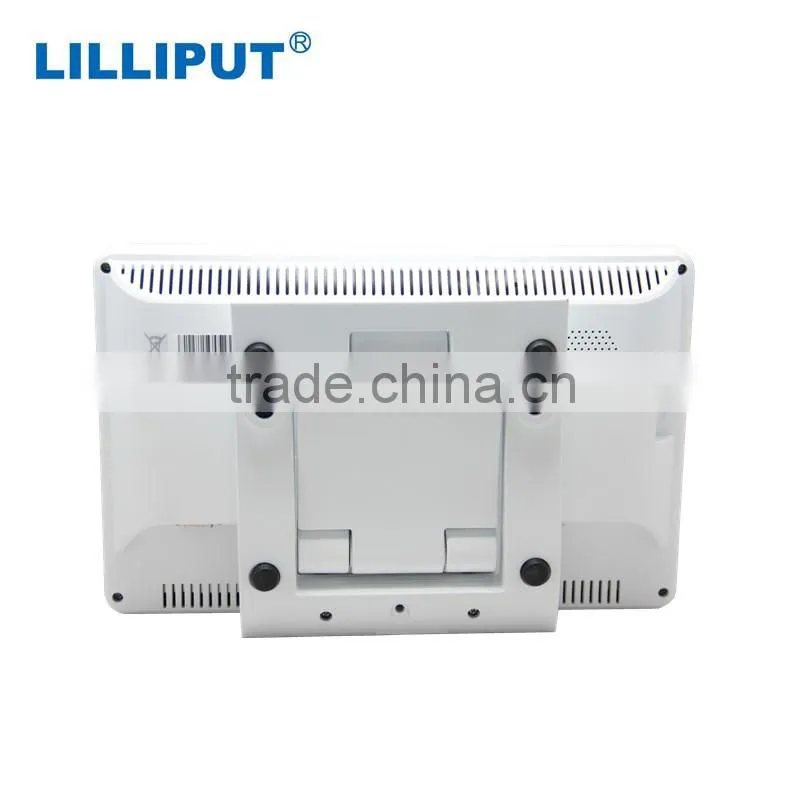

There is also a VESA 75 mount when the desktop stand is detached, providing customers with virtually unlimited mounting options.
| Display Screen | 10.1" LED backlit (16:9) |
| Resolution | 1024×600, suport up to 1920 x 1080 |
| Color System | PAL-4.43, NTSC-3.58 |
| Touch Panel | 4-wire resistive touch panel (5-wire for optional) |
| Contrast Ratio | 500:1 |
| Brightness | 250cd |
| Viewing Angle | 140°/ 110°(H/V) |
| Input Signal | AV1, AV2, VGA, HDMI, DVI |
| Audio Output | ≤1.2W |
| Input Voltage | DC 12V |
| Power Consumption | ≤9W |
| Mounting Process | Standard VESA Sockets (75mm) |
| Dimension(LWD) | 254.5 ×163 ×34 / 63.5mm (with bracket) |
| Weight | 1124g |
Accessories:
Remote control: 1piece
Manual: 1copy
Touch pen: 1piece
Drive disk: 1piece
DC adapter 12V: 1piece
14PIN SKS: 1Piece
VGA 9-pin cable: 1Piece
HDMI to HDMI cable: 1piece
HDMI to DVI cable: 1piece
