Home > Products > Open Frame Monitor > TK1500 Open Frame Touch Monitor Solutions Design For ATM With 15" LED Display Panel
TK1500 Open Frame Touch Monitor Solutions Design For ATM With 15" LED Display Panel
- 10000 Unit / Units per Month
- T/T Credit Card
Product Details
Products Status: | Stock | Type: | Industrial Monitor | Brand Name: | LILLIPUT |
Model Number: | TK1500-NP/C/T | Place of Origin: | China |
Product Description

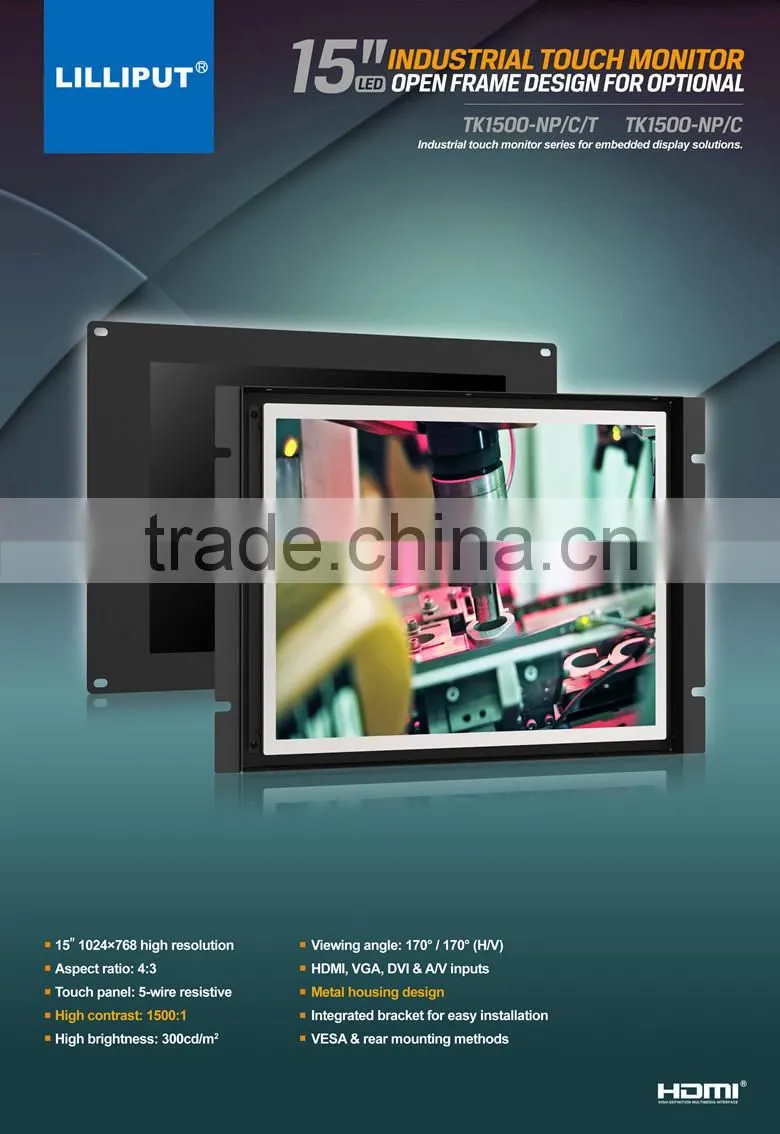

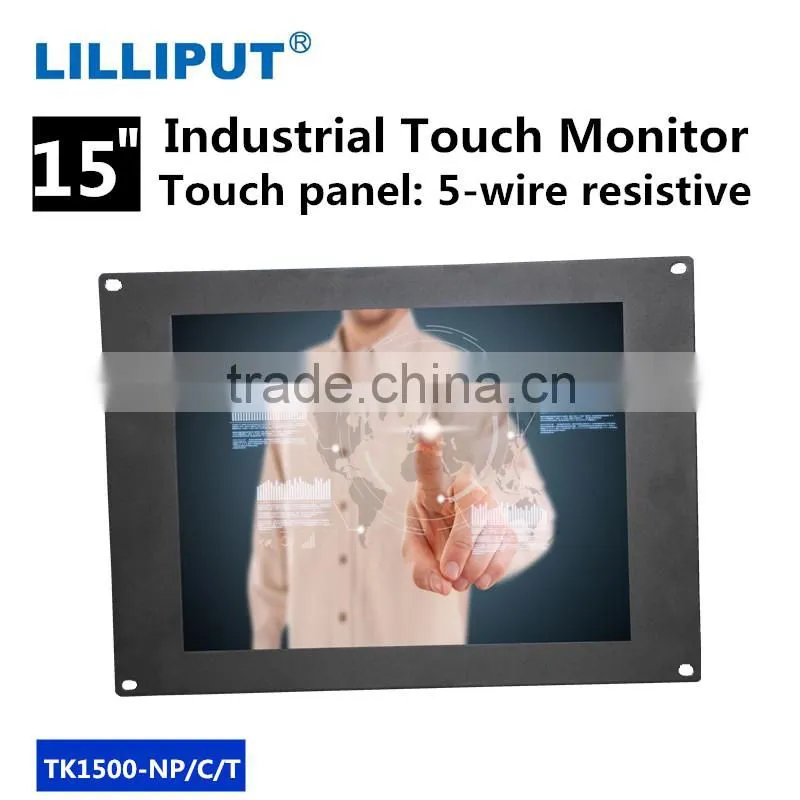

TK1500 Open Frame Touch Monitor Solutions Design For ATM With 15" LED Display Panel
Touch panel: 5-wire resistive,
High contrast: 1500:1, High brightness: 300cd/m²,
Viewing angle: 170° / 170° (H/V),
HDMI, VGA, DVI & A/V inputs,
Metal housing design,
Integrated bracket for easy installation,
VESA & rear mounting methods.
Lilliput 15“ Industrial Touch Monitor Open frame design for optional.
Industrial touch monitor series for embedded display solutions.
Note:TK1500-NP/C/T with touch function.
Display:
Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard mounting with integrated bracket. A metal housing & bezel-less design with slim and firm features making efficient integration into any embedded display applications.
Lilliput LED industrial touch monitor series that supports rear mount (open frame) and VESA 75mm/100mm standard mounting with integrated bracket, a bezel-less design with slim and firm features making efficient integration into any embedded display applications.
KIOSK / POS machine
Transportation machine
Ticketing machine
Financial ATM Entertainment
HMI equipment controller monitor
Public communication machine Public advertisement machine
DISPLAY | Panel | 15" LED backlit |
Physical Resolution | 1024×768 | |
Touch Panel | 5-wire resistive | |
Aspect Ratio | 4:3 | |
Brightness | 300cd/m2 | |
Contrast | 1500:1 | |
Viewing Angle | 170°/170°(H/V) | |

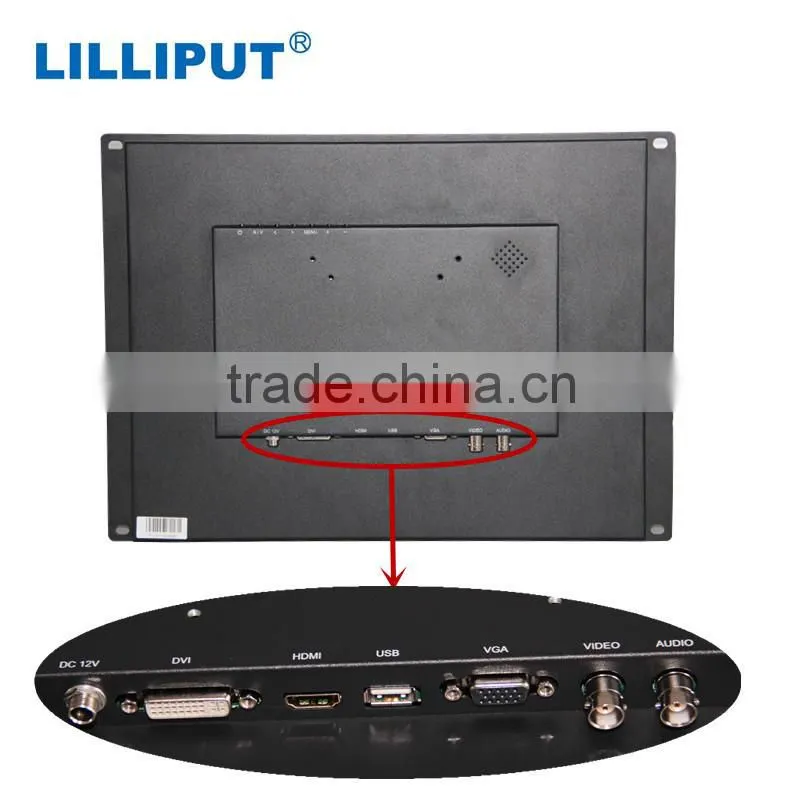

INPUT | HDMI | 1 |
DVI | 1 | |
VGA | 1 | |
USB | 1 (for touch function) | |
Audio (BNC) | 1 | |
Video (BNC) | 1 | |
POWER | Current | 1200mA |
Input Voltage | DC 12V | |
Power Consumption | ≤15W | |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
DIMENSION | Dimension(LWD) | 402×289×45.5mm |
Mounting Method | VESA 75mm / 100mm, rear mount | |
Weight | 3.2kg / 2.8kg (without touch panel) |
