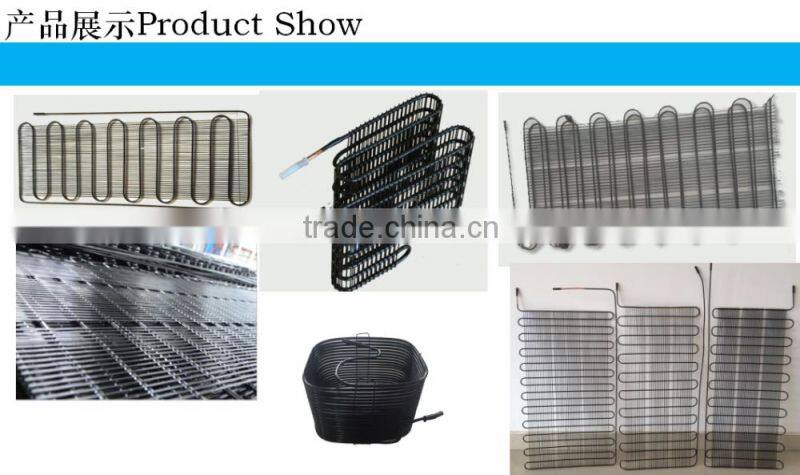

Wire Tube Refrigeration Condenser

1.wire tube condenser,bundy tube refrigerator condenser,freezer condenser,refrigerator condensor,deep freezer condener,wire on tube condenser,refrigerator wire on tube condenser,bundy tube refrigeration condenser,domestic refrigerator condenser

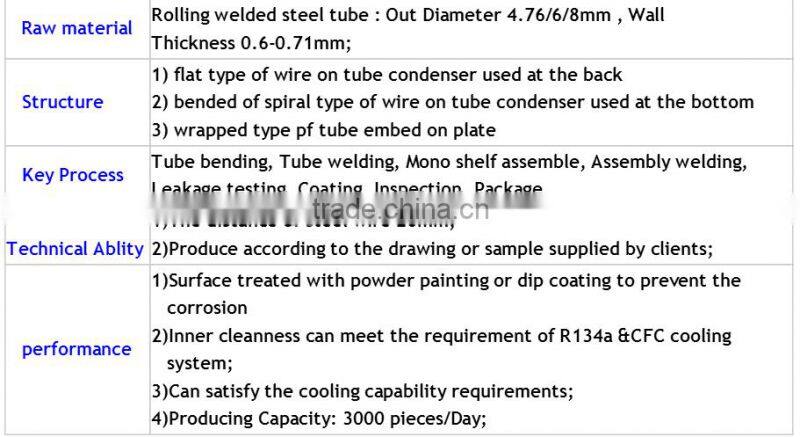

2.details are as follows:

1) Material: a) Bundy tube (steel tube coated with copper): 4.76 x 0.6mm, 6 x 0.7mm, 6.35 x 0.7mm, 8 x 0.7mm

b) Steel wire: 1.2----2mm (both sides can be with steel plates and brackets; can be upon your choice)

2) Structure: bundy tubes welded with steel wires

3) Painting: Cathode electrophoretic painting (black)

3.Packing:With plastic caps at both ends,In standard carton, each piece separated by packing paper

4.We can supply the items according to customers' drawings or samples.
