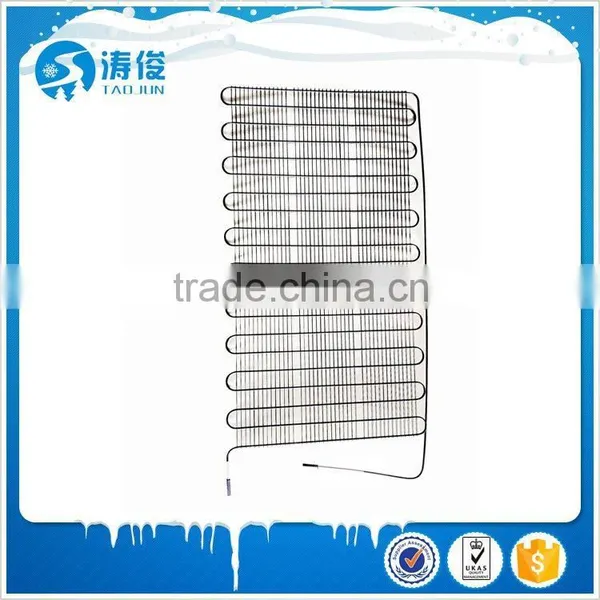

various refrigeration part / wire condenser
1.there are many models
1.wire tube condenser,bundy tube refrigerator condenser,freezer condenser,refrigerator condensor,deep freezer condener,wire on tube condenser,refrigerator wire on tube condenser,bundy tube refrigeration condenser,domestic refrigerator condenser
2.details are as follows:
1) Material: a) Bundy tube (steel tube coated with copper): 4.76 x 0.6mm, 6 x 0.7mm, 6.35 x 0.7mm, 8 x 0.7mm
b) Steel wire: 1.1----1.6mm (both sides can be with steel plates and brackets; can be upon your choice)
2) Structure: bundy tubes welded with steel wires
3) Painting: Cathode electrophoretic painting (black)
3.Packing:With plastic caps at both ends,In standard carton, each piece separated by packing paper
4.We can supply the items according to customers' drawings or samples.
Key Process:
Tube Bend
↓
Welding
↓
Fix the bracket
↓
Weld the suction tube
↓
Leakage test
↓
Cleaning
↓
Coating (Folding or bending to shape)
↓
Inspection
↓
Packing
