Cangzhou All Service Machinery Equipment Co.,Ltd. is located in Botou, Cangzhou City -the home of roll forming machine. With 20 years of production experience, we can offer you good quality machine at favourable price. Our main products as below:
1.Roof and wall panel forming machines
2.Corrugated tile roll forming machine
3.Double layer roll-forming machine
4.Joint hidden roll forming machine
5.Downspout and waterspout roll forming machine
6.Metal roll forming machine
7.Sandwich panel roll forming machine
8.Shearing bend slitting Uncoiler curving machine
9.Russia roll forming machinery
10.Especially for Asia type ,Russia type and Africa type

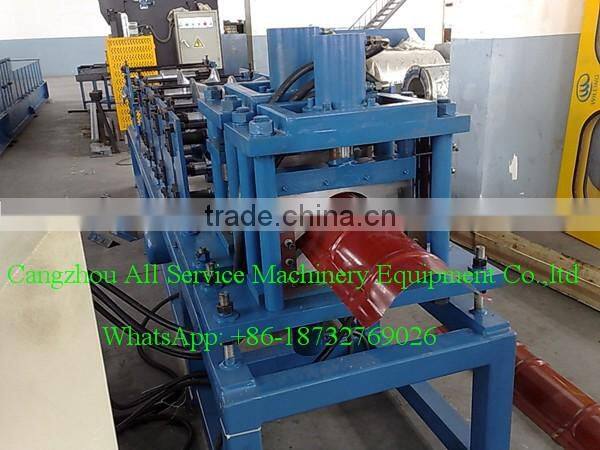

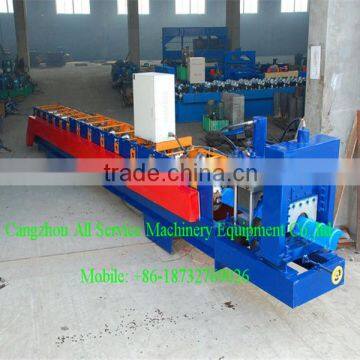

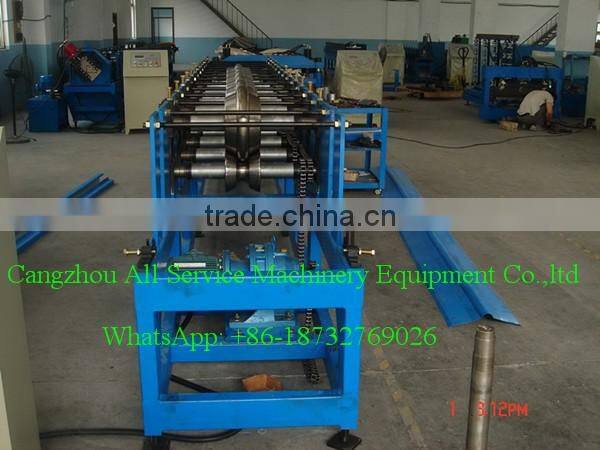

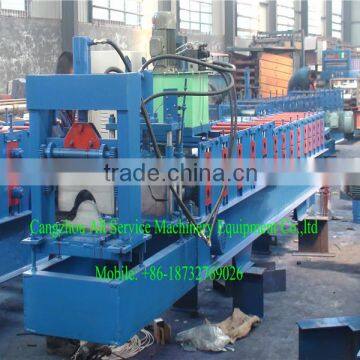

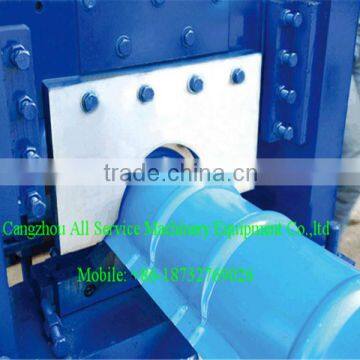

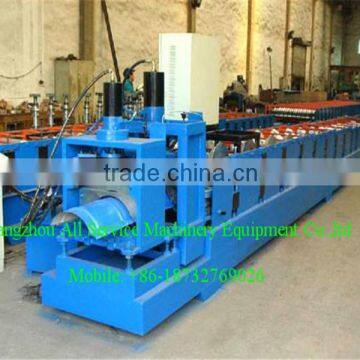

Details of the Ridge Cap Forming machine
(1) Type and Specification: Ridge Cap Forming Machine
(2) Suitable Material:
A. Colored Steel Sheet
B. Galvanized Steel Sheet
C. Aluminum Plating Steel Sheet
D. Aluminum-zinc Steel Sheet
(3) Processing Technique and Deployment Processes:
Manual Decoiler-Roll Forming Machine-PLC System-Hydraulic System-Tile Pressing-Die Cutting-Stack
B.Technical Parameters
1. Configurations: Guiding Platform, Main Machine Of Roll Forming, Electro-Motor, Cutting device, Hydraulic Station, PLC Control Output Table.
2. Electrical control system: PLC control system with famous brand
3. Main Motor Power: 4 KW with cycloidal reducer
4. Pump Power: 4 KW
5. Roll Station: 14 stands
6. Shaft Diameter: 75mm
7. Feeding Thickness of the material: 0.3-0.8mm
8. Working Speed: 10-12m/min
9. Backboard Thickness: 14mm
10. Feeding Width: 312mm
11. Main Frame: 300mm H-Beam
12. Material of roller: High grade 45# forged steel plated with hard chrome plating
13. Material of cutting: Cr12 mould steel with quenched treatment
14. Electric tension: 380V 3phase 50HZ or as the customer's requirements
15. Driving mode: Chain
16. Working time: Can be 12-15 hours
17. Workers: 1-2 only
C. Components Specification
(1) Manual Uncoiler: Max.Capacity: 5T

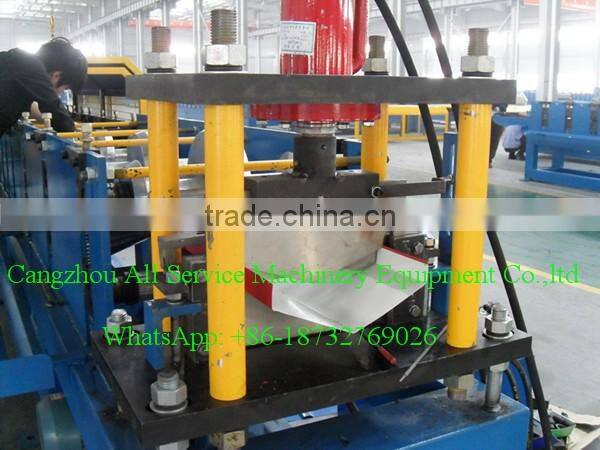

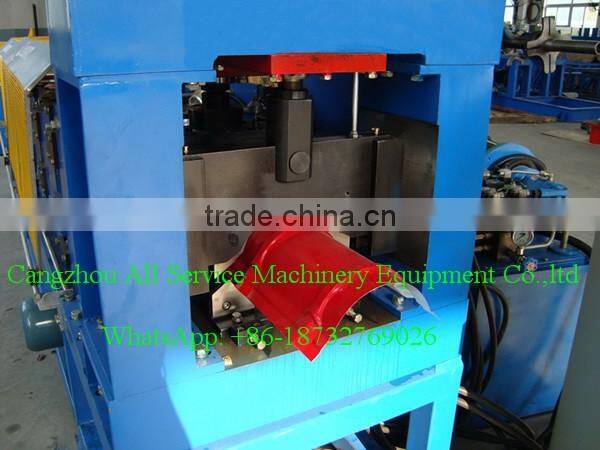

(2) Pre-Cutting Device& Pre-Punching Device:
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance: ±2mm
Material: GCr12 with quenched treatment 60-62ºC
(3) Hydraulic System Match equipment:
Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4) Control System:
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Computed mode: automatic or manual
(5) Encoder: The counter gauges length, and modulates pulses.
(6) Simple Stack: It is used for loading the formed plate.
Sales Terms
1.Terms of payment: T/T, 30% T/T should be paid as advanced deposit, 70% T/T before shipment.
2.Delivery time: within 60 workdays after receipt of the deposit.
3.Installation: Buyer will be born for round traveling expense, accommodation, safety, and interpreter of technicians, and pay 150 USD/day/person, then seller will dispatch technician for guide installation and give training to buyer's workers.
4. Guarantee:12 months guarantee. If some part of the machine is broken. We will supply the best part, but your side should shipped.
5. Package: naked with simple plastic films.
1: How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C ---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
If any questions, you can call me mobile phone at any times: 0086-18732769026
3: When we exported the machines:
We have been making and exporting the machines for more than 10 years.
4: If you want to get more pictures or videos of the machines,
I can send them to you by Email or Skype.
