Metal Braided Flexible Connector With Flat Faced Flange Connections
Negotiable
1 (Min. Order)
- Shanghai
You May Like
-
Braided Pump Connectors Stainless Steel Hose and Braid With 150 Lb. Flat Face Carbon Steel Plate Flanges
-
Stainless Steel Corrugated Braided Pump Connectors 150# CLASS ANSI FLANGES
-
Flanged Pump Connector, T321 Hose With T304 Braid, 150 LB CS Plate Flange Ends
-
Flexible Braided Pump Connector Fixed Flange Carbon Steel Ends
-
Metal Pump Connector Flange by Flange Flexible Braided Metal Hose
-
Bronze Corrugated Metal Hose
Product Details
| Material | Stainless Steel | Type | Flange | |
| Place of Origin | Jiangsu, China | Connection | Flange | |
| Shape | Equal |
Product Description

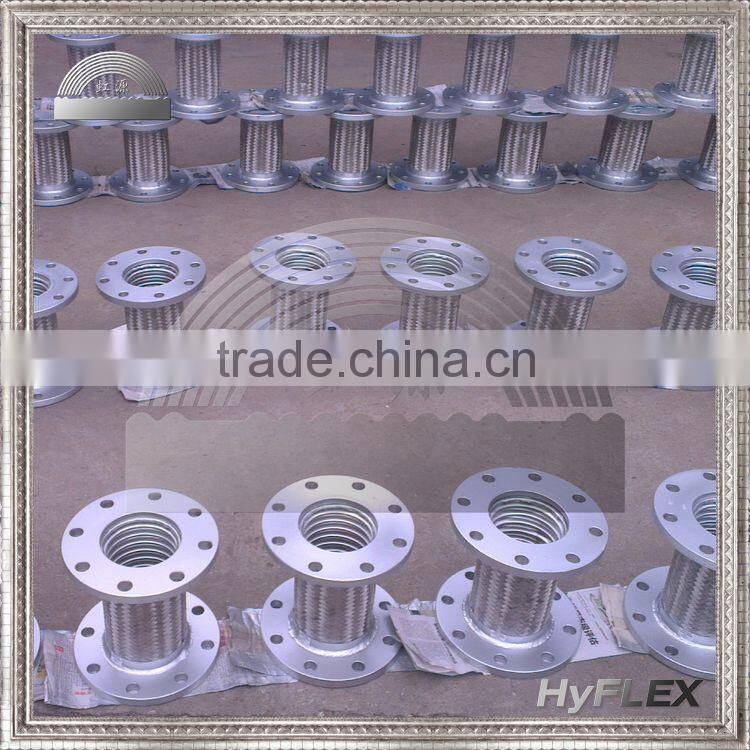

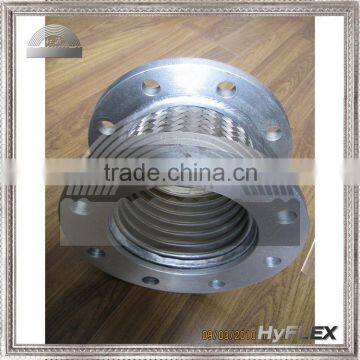

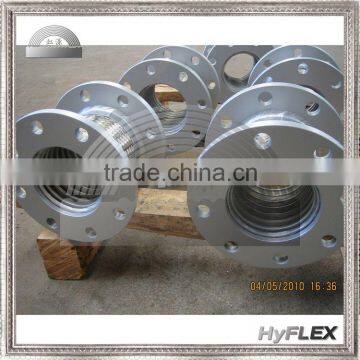

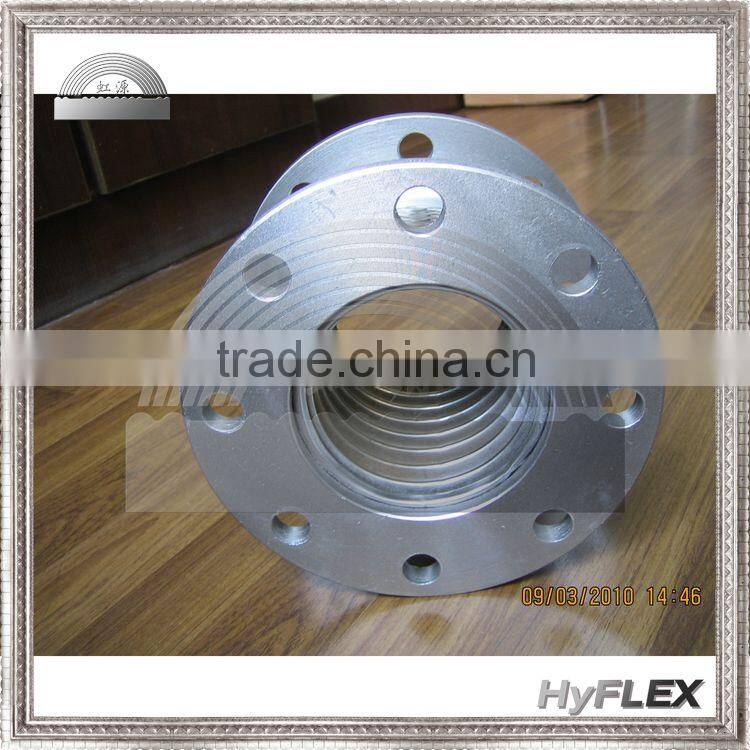

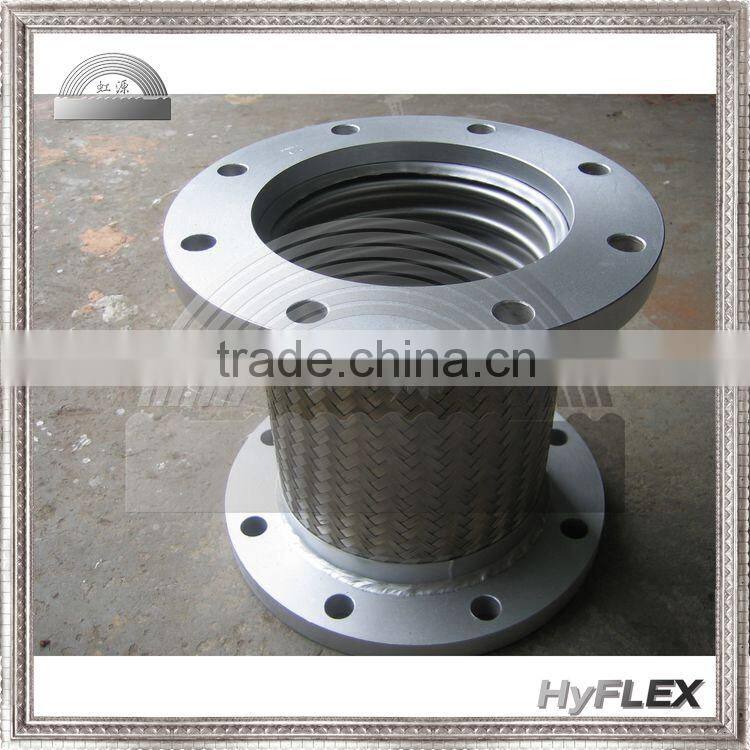

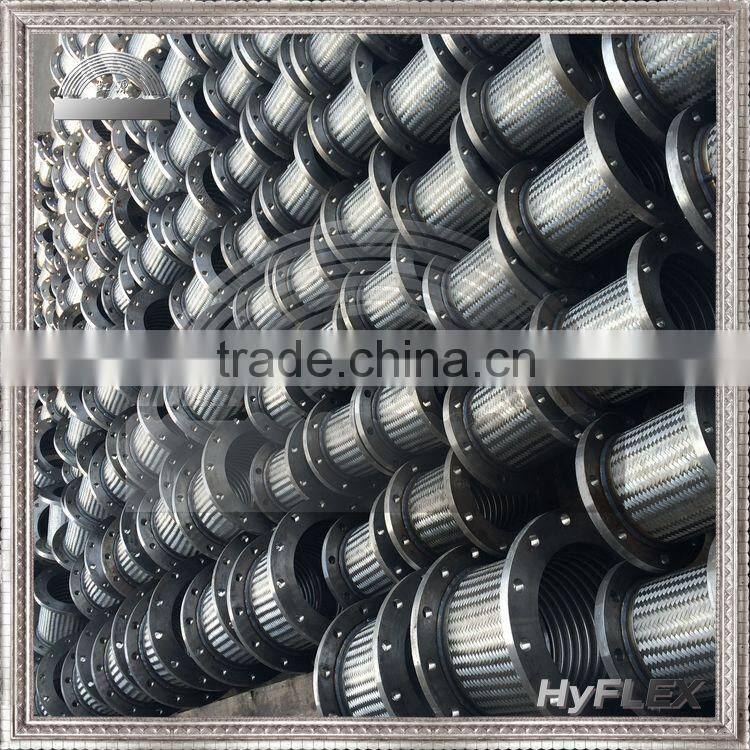

Flanged flexible metal hose/pump connector.
| MODEL NO. | PIPE | A± 1/8″ | PERMANENT OFFSET | INTERMITTENT OFFSET | PRESSURE PSI | Weight |
| SIZE | @ 70° F | (lbs) | ||||
| HYPCF0200 | 2″ | 9″ | .375″ | .125″ | 455 | 9 |
| HYPCF0250 | 2.5″ | 9″ | .375″ | .125″ | 345 | 13 |
| HYPCF0300 | 3″ | 9″ | .375″ | .125″ | 389 | 14 |
| HYPCF0400 | 4″ | 9″ | .375″ | .125″ | 300 | 18 |
| HYPCF0500 | 5″ | 11″ | .375″ | .125″ | 220 | 25 |
| HYPCF0600 | 6″ | 11″ | .375″ | .125″ | 200 | 28 |
| HYPCF0800 | 8″ | 12″ | .375″ | .125″ | 190 | 52 |
| HYPCF1000 | 10″ | 13″ | .375″ | .125″ | 150 | 75 |
| HYPCF1200 | 12″ | 14″ | .375″ | .125″ | 125 | 105 |
| HYPCF1400 | 14″ | 14″ | .375″ | .125″ | 105 | 115 |
*Custom Size / Length Available
