Home > Products > Flexible Metal Hose > Stainless Steel Braided Pump Connectors
Stainless Steel Braided Pump Connectors
Negotiable
1 (Min. Order)
- Shanghai
You May Like
Product Details
| Material | Stainless Steel | Type | Flange | |
| Place of Origin | Jiangsu, China | Connection | Flange | |
| Shape | Equal |
Product Description

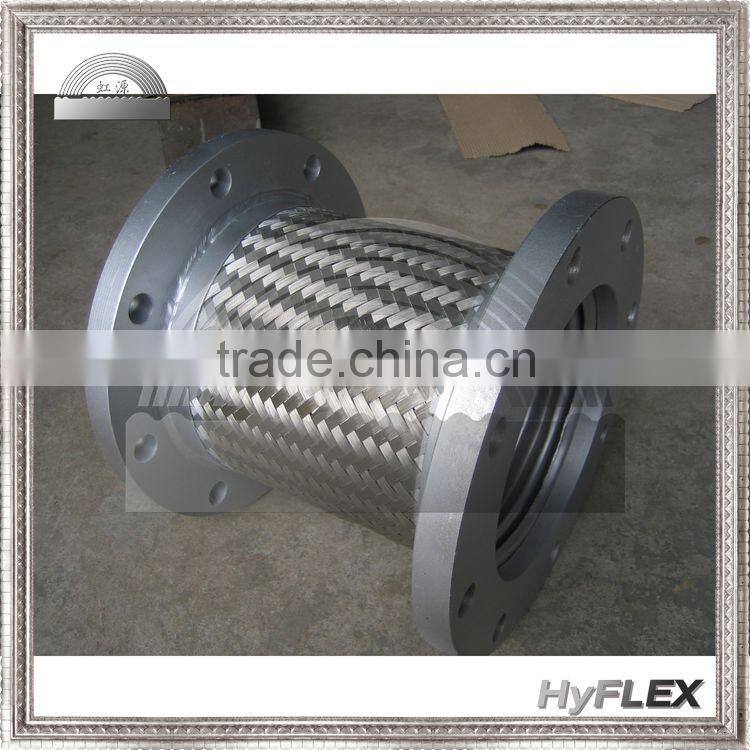

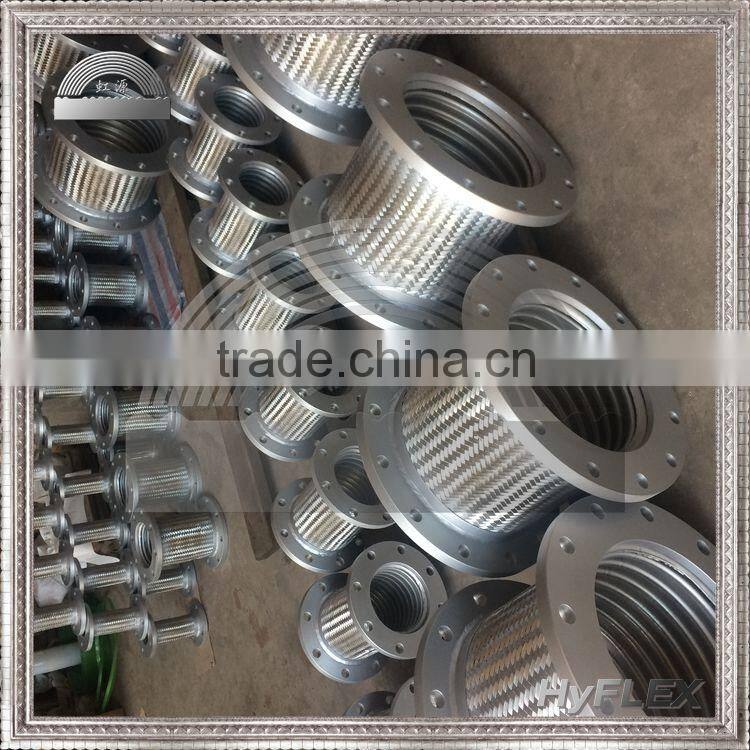

Flanged flexible metal hose/pump connector.
| MODEL NO. | PIPE | A± 1/8″ | PERMANENT OFFSET | INTERMITTENT OFFSET | PRESSURE PSI | Weight |
| SIZE | @ 70° F | (lbs) | ||||
| HYPCF0200 | 2″ | 9″ | .375″ | .125″ | 455 | 9 |
| HYPCF0250 | 2.5″ | 9″ | .375″ | .125″ | 345 | 13 |
| HYPCF0300 | 3″ | 9″ | .375″ | .125″ | 389 | 14 |
| HYPCF0400 | 4″ | 9″ | .375″ | .125″ | 300 | 18 |
| HYPCF0500 | 5″ | 11″ | .375″ | .125″ | 220 | 25 |
| HYPCF0600 | 6″ | 11″ | .375″ | .125″ | 200 | 28 |
| HYPCF0800 | 8″ | 12″ | .375″ | .125″ | 190 | 52 |
| HYPCF1000 | 10″ | 13″ | .375″ | .125″ | 150 | 75 |
| HYPCF1200 | 12″ | 14″ | .375″ | .125″ | 125 | 105 |
| HYPCF1400 | 14″ | 14″ | .375″ | .125″ | 105 | 115 |
*Custom Size / Length Available
Contact Us
- Changzhou Hongyuan Bellows Co., Ltd.
- Contact nameJack Foo Chat Now
- Phone86-519-88796028
- Address139 Dailuo Road, Luoyang Town, Wujin District, Changzhou, Jiangsu
