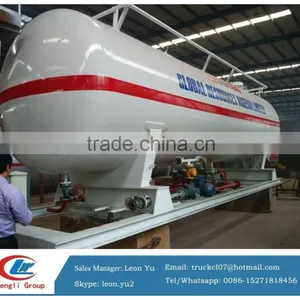

LPG Gas Filling Station or LPG skid station
1. usage: lpg skid station is used to filling home cylinders, and storage lpg. it is very convinient for rural place and no big station villages or small towns. we can provide 4tons, 5tons, 6tons, 8tons, 10tons, or 15tons, 21tons, 42tons LPG filling stations etc. we can design it as your requirements.
2. see more pictures
3. we produced for our Africa customers
4. technical prameters
item |
unit |
LPG tank parameters |
||
Products name |
|
LPG filling station |
||
Filling medium |
|
|
LPG(propane) |
|
Overall dimentions (L*W*H) |
mm |
72600*1620*2540 |
||
Tank size (inner diameter*thickness*length) |
mm |
DN1600*10*5940 |
||
volume |
m3 |
10 |
||
Net weight |
kg |
3165 |
||
Designing pressure |
Mpa |
1.77 |
||
Working pressure |
Mpa |
≤1.6 |
||
Working temperature |
℃ |
≤50 |
||
Hydraulic test pressure |
Mpa |
2.22 |
||
Air test pressure |
Mpa |
1.77 |
||
Material of tank and accessory |
Q345R,16MnIII |
|||
standard |
GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures |
|||
accessory |
Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. |
|||
LPG filling station |

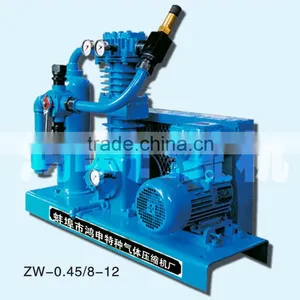

10m3 tank, one pump, one motor for pump, two lpg filling scale for two cylinders, one compressor, one generators, control box, pipes, cover etc |
|||
5. our company certificate
American ASME Standard Certificate
ISO quality certificate
6. we can produce the filling station acording to our customers requirements.
such as how many dispensers you need? and need filling pump and unloading pump and air compressors etc
we can equiped the generator for some place which is lack of electricity
7. shipping.
the filling station is shipped by 40HQ. if above 20000L can choose the bulk ship to ship.
8. contact me as following name card. add me wechat or whatsapp
