Help CenterLpg Gas Semi Trailer Road Tank, 3 Axles Lpg Tanker Trailer 20Tons
Related Products
-
Lpg Gas Tanker Semi Trailer 48000LUS$ 37000.00 - 37000.00MOQ: 1 Set -
Lpg Tank Semi Trailer Lpg Gas Tanker Semi Trailer Lpg TrailerUS$ 37000.00 - 37000.00MOQ: 1 Set
-
Lpg Tank Trailer 49600L , Gas Cooking Trailer 20TonsUS$ 38000.00 - 40000.00MOQ: 1 Set
-
Lpg Tank Trailer 24Tons, Lpg Gas Tank TrailerUS$ 37000.00 - 37000.00MOQ: 1 Set
-
Lpg Tank Trailer 58,500L , 3 Axle Lpg TrailerUS$ 36850.00 - 36850.00MOQ: 1 Set
496000L LPG TANK TRAILER
Lpg tank trailer is also called semi-trailer lpg tanker, ASME lpg trailer, lpg gas tanker semi trailer,lpg trailer,lpg transport tank semi trailer etc, it is widly used transporting kinds of Liquefied petroleum gas, such as propane, isobutane, propylene, dimethyl ether, ammonia, etc.We have different kind of lpg tank trailer, 40500L lpg trailer, 59520L lpg tank traielr, 58500L Lpg gas trailer,56000L lpg semi trailer etc.
Our lpg series product includ lpg storage tank, load capacity from 5000L to 120000L , lpg underground tank from 10000L to 80000L, lpg dispenser truck , lpg filling plant, lpg tank trailer etc.
Item |
unit |
Parameter |
||||
Products name |
|
LPG (propane) tank trailer |
||||
Volume |
m3 |
49.6 |
||||
G.W |
Kg |
36132 |
||||
Net weight |
15300 |
|||||
Rated loading |
20832 |
|||||
Overall dimension |
mm |
12740*2480*3800 |
||||
Number of axles |
|
3 |
||||
Wheel base |
mm
|
6800+1310+1310 |
||||
tread |
Front wheel |
- |
||||
Back wheel |
1840/1840/1840 |
|||||
Front overhang/rear overhang |
-/1500 |
|||||
|
Number of plate spring (front/back) |
|
-7/7/7 |
||||
Semi-trailer saddle maximum permissible load mass |
Kg |
16000 |
||||
Specification of tire |
12.00R20 |
|||||
|
material |
Q345R |
||||
Standard configurations |
13 tons FUWA axles,Safety valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency cut off valves, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders |
|||||
others |
Filling medium: liquefied petroleum gas (propane); design pressure 1.61Mpa, design temperature 50℃,Filling factor: 0.42t/m3, corrosion margin: 1mm; tank dimension: 12615 * 2474mm (including tank straight-line distance) |
|||||
standard |
1.JB4732-1995 <Steel pressure vessel-Analysis and Design Standard>(confirmed in 2005) 2.GB/T19905-2005< liquefied gas tanker truck> |
|||||
Production cycle |
Warranty |
30 days |
12months from the supplying day |
|||
FOB SHANGHAI |
USD/SET |
|||||

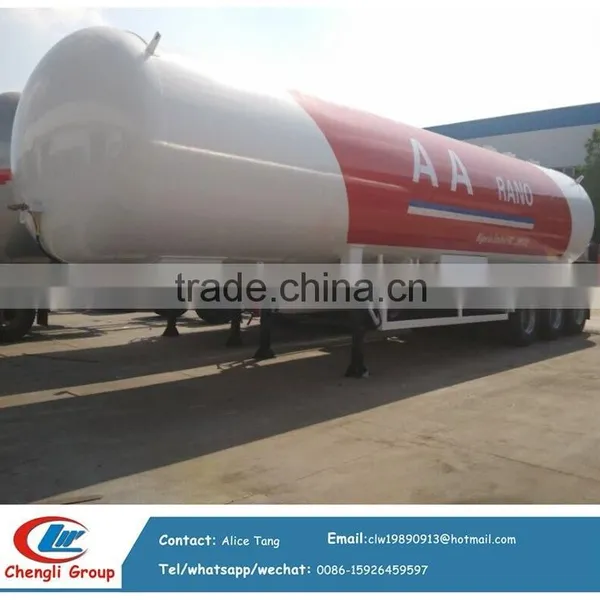

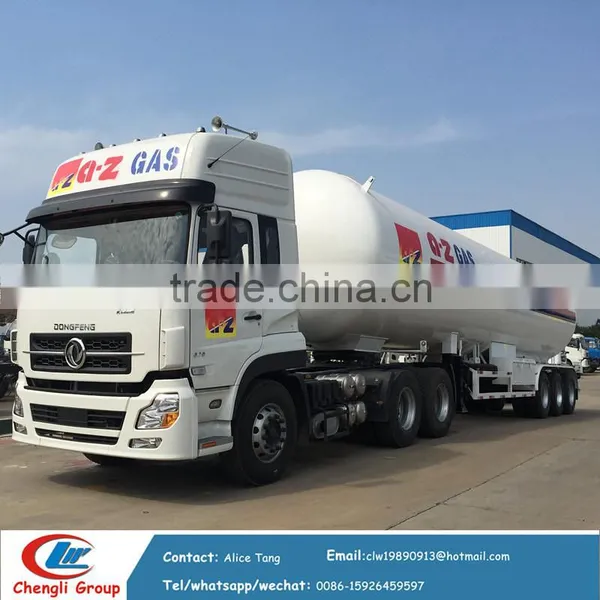

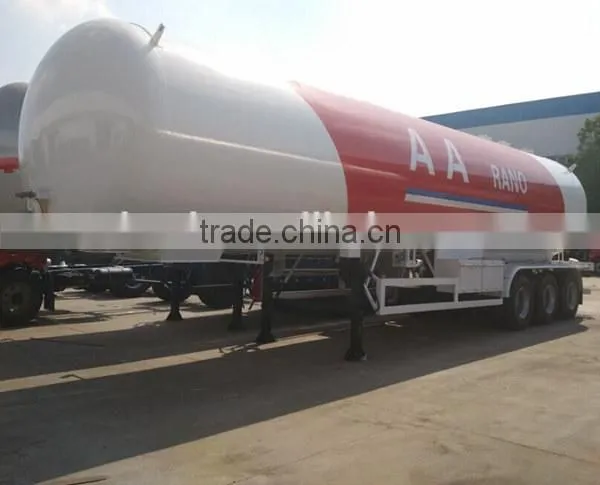

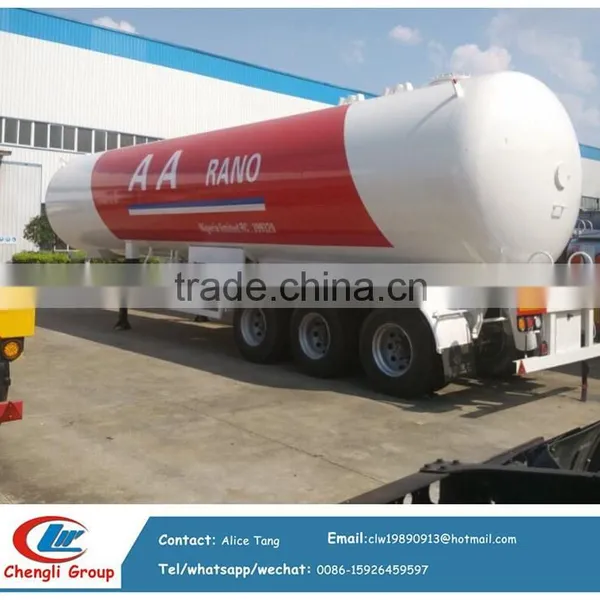

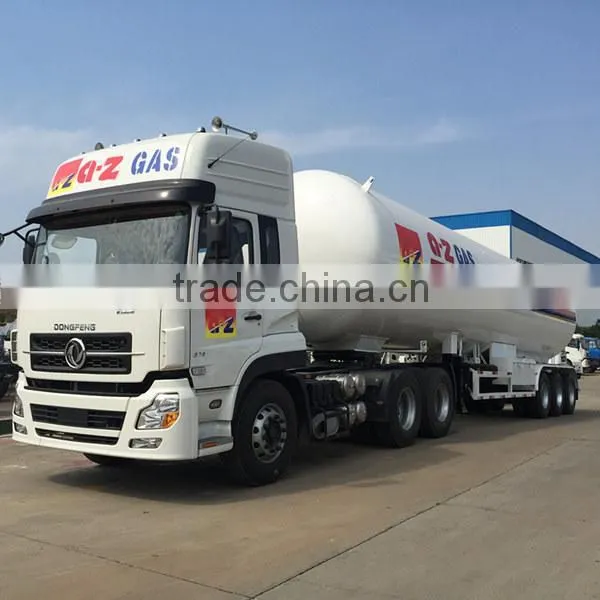

49600l lpg tank trailer pictures
LPG workshop picture
lpg trailer production flow
LPG tank trailer and lpg tank and lpg dispenser truck .
Factory Picture
Packaging: nuked.
shipping: by bulk ship or RO-RO ship or container ship, it according customer's requirement.
Paymemt: T/T, 30% deposit, balance before delivery from Suizhou
1.12 months for three key parts(axles, engine and transmission)
2.easily damaged parts guarantee repairment.
fessionly provide configuration and installation scheme
