Stepper motor controller, stepper driver match nema17,nema23,nema34
Welcome to visit our website https://img13.fr-trading.com to find more products!
Controller M860D for Stepper motor Features:
The M860D is DC24-80V power supply, or AC24-60V. It applies to 2-phase hybrid stepper motor under 6.0A current. The M860D has 14 kinds of microsteps. The maximum step number is 51200 steps/rev (microstep is 1/256). The peak operating current ranges 2.0-6.0A., and the output current has 8 stalls. The M860 has automatic semi-flow, self-test, over-voltage, under-voltage, over-current protection functions.
Controller M860D for Stepper motor Specification:
Applications
It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
Current selection
REF |
Peak |
SW1 |
SW2 |
SW3 |
2.00A |
2.40A |
on |
on |
on |
2.57A |
3.08A |
off |
on |
on |
3.14A |
3.77A |
on |
off |
on |
3.71A |
4.45A |
off |
off |
on |
4.28A |
5.14A |
on |
on |
off |
4.86A |
5.83A |
off |
on |
off |
5.43A |
6.52A |
on |
off |
off |
6.00A |
7.20A |
off |
off |
off |
Microstep selection
Pulse/Rev |
SW5 |
SW6 |
SW7 |
SW8 |
400 |
on |
on |
on |
on |
800 |
on |
off |
on |
on |
1600 |
on |
on |
off |
on |
3200 |
on |
off |
off |
on |
6400 |
on |
on |
on |
off |

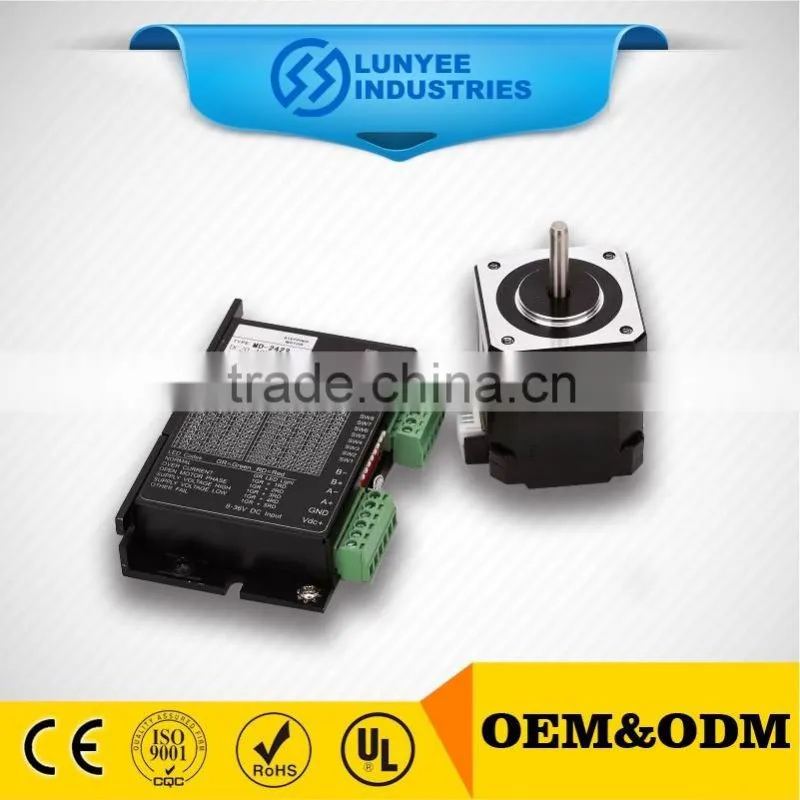

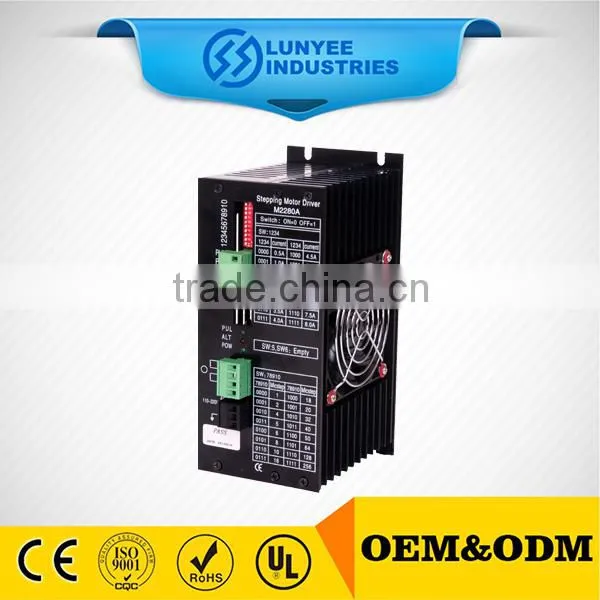

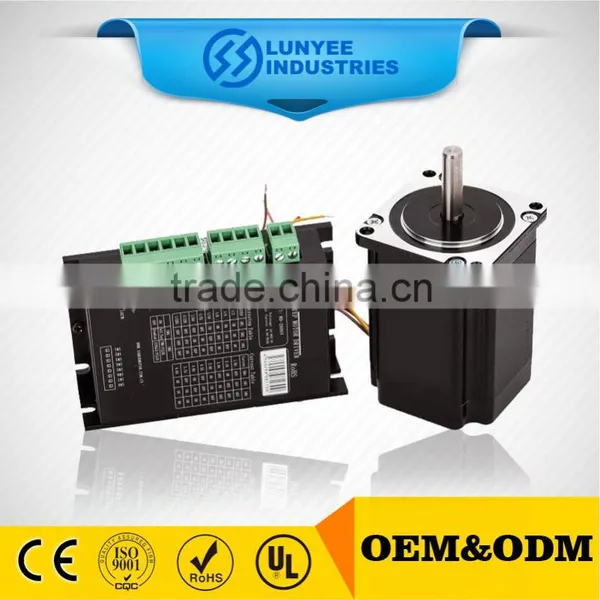

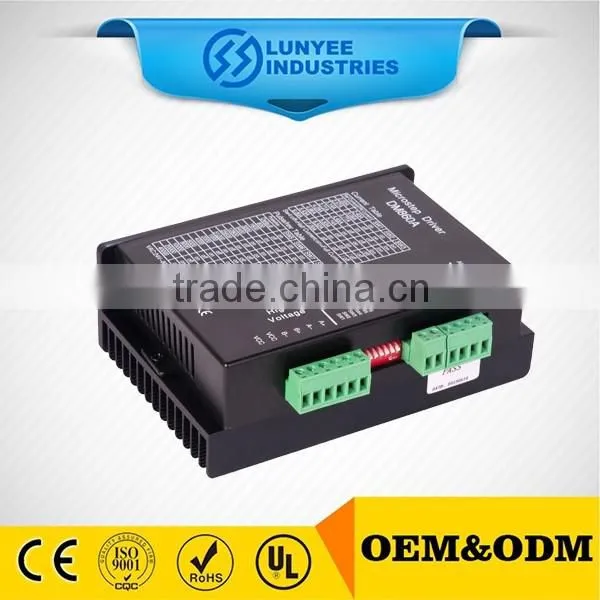

Controller M860D for Stepper motor Pictures:

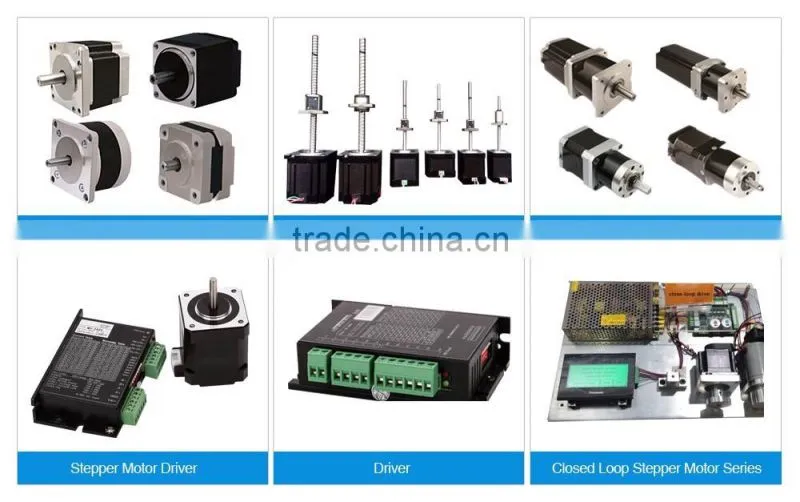

Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
Contact us:
Stepper motor controller, stepper driver match nema17,nema23,nema34
