Stepper motor with encoder,Closed loop stepper motor nema23 nema34
Welcome to visit our website https://img13.fr-trading.com to find more products!
57HSE76 Closed loop Stepper motor and Driver Features:
Stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements.Stepper motor is widely used in CNC Router, CNC Machines,Engraving machines, Stage Lighting , Medical equipment, Sewing Machine, Packing Machine, Printer, Textile machinery, Robot, business automation equipment etc.
57HSE76 Closed loop Stepper motor and Driver Specification:
Technique parameter
Item |
Specification |
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step,no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80°CMax.(rated current,2 phase on) |
Ambient Temperature |
-10°C-+50°C |
Insulation Resistance |
100MΩMin. 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.06Max.(450 g-load) |
Shaft Axial Play |
0.08Max.(450 g-load) |

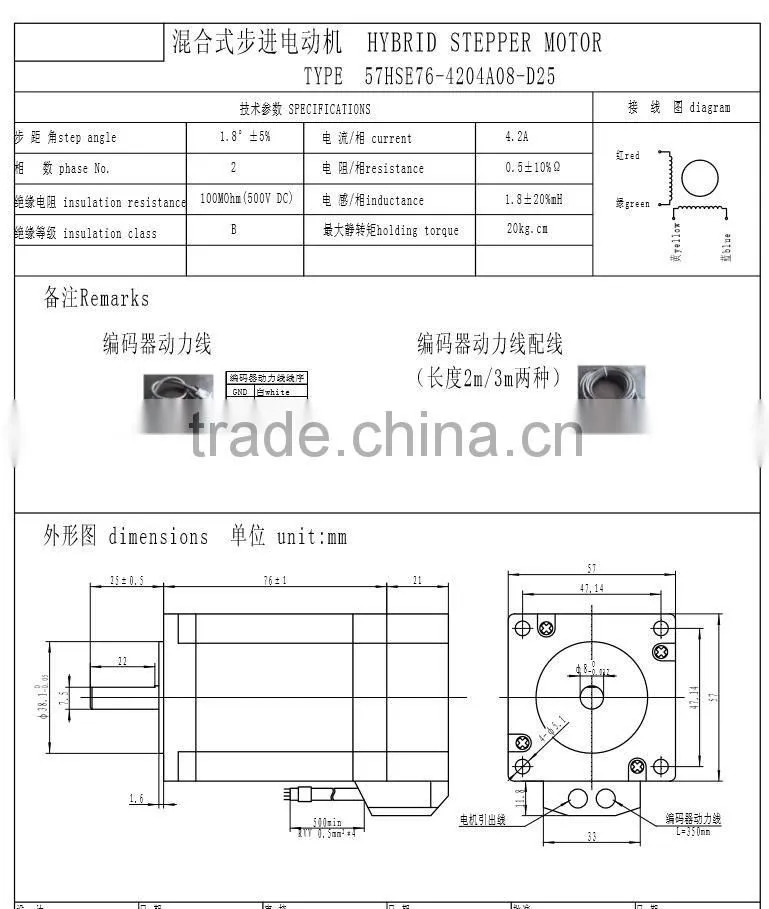

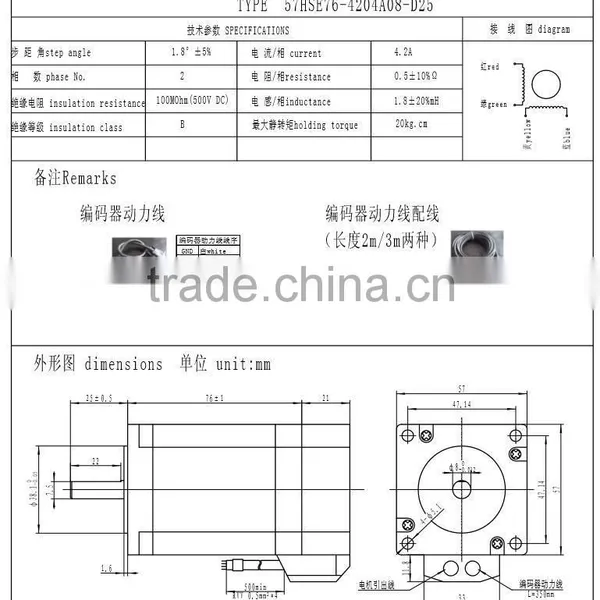

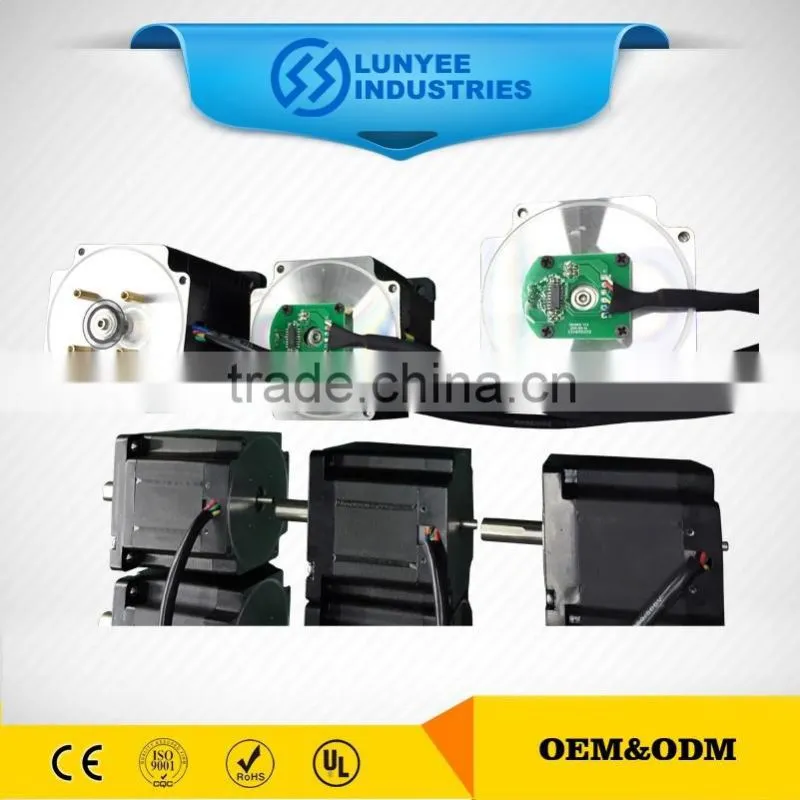

57HSE76 Closed loop Stepper motor and Driver Pictures:
57HSE76 Closed loop Stepper motor and Driver Usage:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
Contact us:
Stepper Stepper motor with encoder,Closed loop stepper motor nema23 nema34
