Motor stepper, Hybrid Stepper motor nema23 for CNC machine
Welcome to visit our website to find more products!
Nema23/57HS Hybrid Stepper motor Features:
Stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements.Stepper motor is widely used in Engraving machines, Stage Lighting , Medical equipment, Sewing Machine, Packing Machine, Printer, Textile machinery, Robot, business automation equipment etc.
Nema23/57HS Hybrid Stepper motor Specification:
| Item | Specifications | |||
| Step Angle | 1.8degree | |||
| Temperature Rise | 80 ℃Max | |||
| Ambient Temperature | -20 ℃ Max+50 ℃ | |||
| Insulation Resistance | 100M Ω Min., 500VDC | |||
| Dielectric Strength | 500VAC for one minute | |||
| Shaft Radial Play | 0.02Max (450g-load) | |||
| Shaft Axial Play | 0.08Max (450g-load) | |||
| Max Radial Force | 75N(20mm from th flange) | |||
| Max Axial Force | 15N | |||
| Model No | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (kg.cm) | Rotor Inertia (g.cm²) | Motor Length (mm) | Lead Wire Number | Motor Weight (kg) |
| 57HS41-2004 | 2 | 2 | 1 | 1.2 | 3.2 | 120 | 41 | 4 | 0.45 |
| 57HS51-1504 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 275 | 51 | 4 | 0.65 |
| 57HS56-1504 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 300 | 56 | 4 | 0.7 |
| 57HS64-3004 | 3.9 | 3 | 1.3 | 2.2 | 15 | 380 | 64 | 4 | 0.8 |
| 57HS76-2004 | 8.6 | 2 | 4.3 | 16.2 | 24 | 480 | 76 | 4 | 1 |
| 57HS82-3004 | 4.2 | 3 | 1.4 | 5 | 22 | 510 | 82 | 4 | 1.2 |
| 57HS100-3004 | 3 | 3 | 1 | 4.5 | 25 | 680 | 100 | 4 | 1.4 |

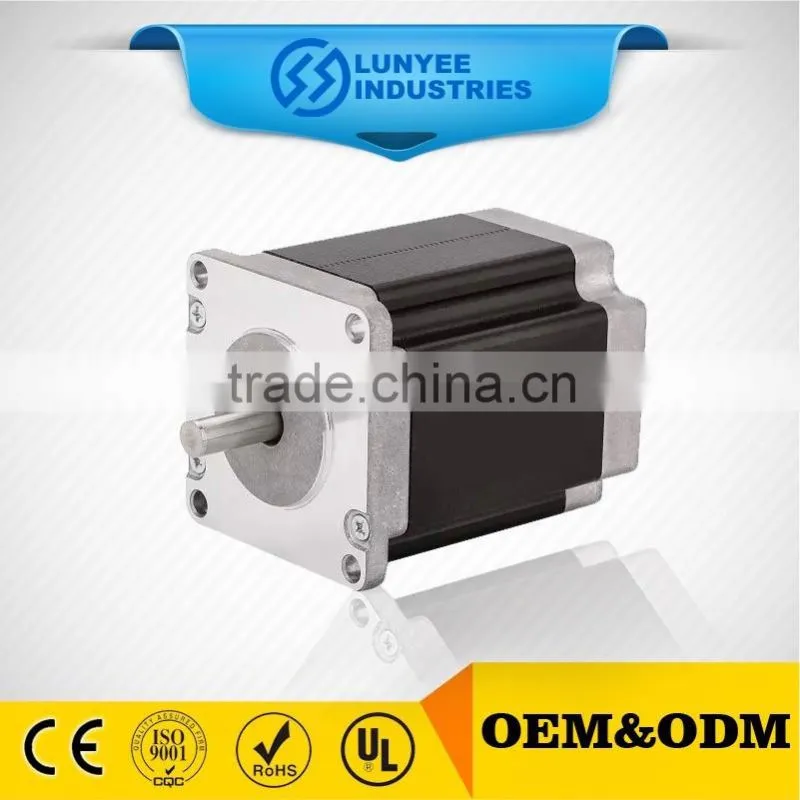

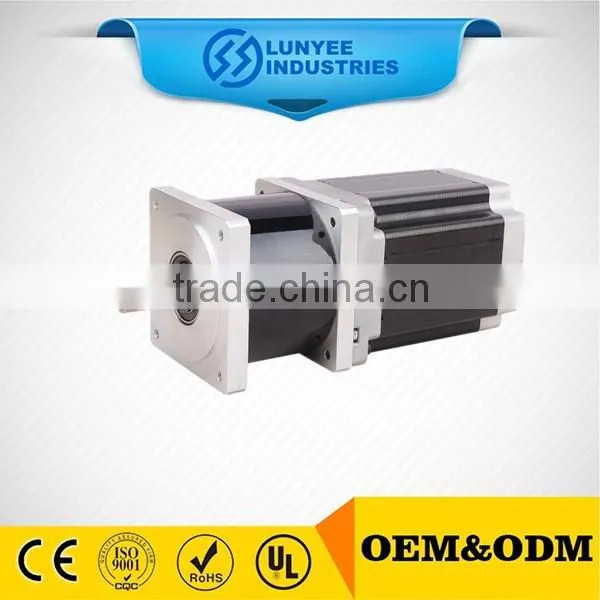

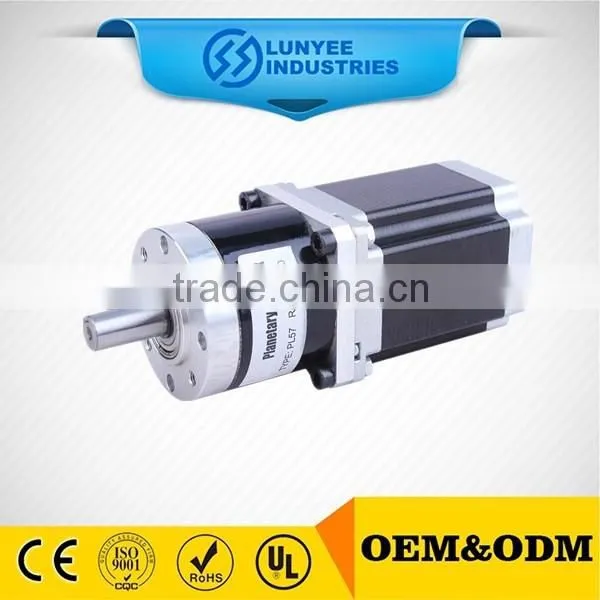

Nema23/57HS Hybrid Stepper motor Pictures:
Nema23/57HS Hybrid Stepper motor Usage:
Lunyee Industries has a wide range of stepper motor and related accessories applying to different kinds fields.
Lunyee Company Information:
Chengdu Lunyee Industries Development Co., Ltd. is a leading manufacturer for factory automation (FA) products! We are dedicated in power transmission and motion control solutions! We are a leading manufacturer for power transmission products like AC and DC(brush/brushless)gear motor, stepper motor,high precision planetary gearbox (spur/helical gear)for stepping motor etc.
Our quality:
One professional QC department is built up to inspect all the manufacture process according to international quality standard and our customers’ special requirement! Our factory and our sub-contractors are all qualified ISO9001, 3C, CE, UL, ROHS and other related certification! All products from Lunyee can enjoy a warranty from us!
Our price:
We promise to our customers for the same price, they can enjoy better quality from Lunyee, for the same quality, they can enjoy better service from Lunyee!
Contact us:
Motor stepper, Hybrid Stepper motor nema23 for CNC machine
