Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Paving Machinery > 8x4 Sinotruck Howo 10m3 Asphat Tank 16m3 Gravel Tank Asphalt Synchronous Chip Sealer

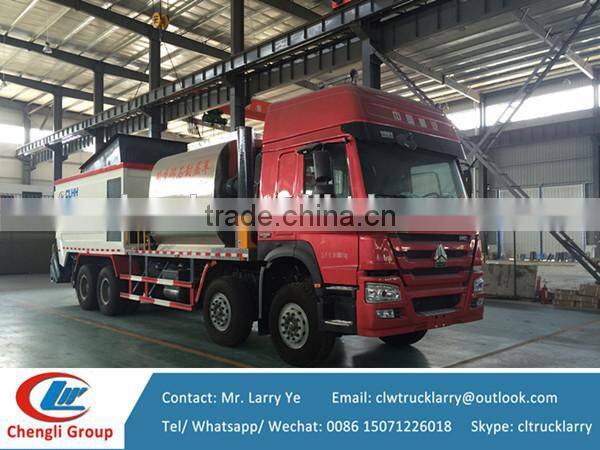

8x4 Sinotruck Howo 10m3 Asphat Tank 16m3 Gravel Tank Asphalt Synchronous Chip Sealer

Name: 8x4 Sinotruck Howo 10m3 Asphat Tank 16m3 Gravel Tank Asphalt Synchronous Chip Sealer
Brand: CLW, Sinotruck
SKU: 116862291
Availability: InStock

8x4 Sinotruck Howo 10m3 Asphat Tank 16m3 Gravel Tank Asphalt Synchronous Chip Sealer thumbnail-1

8x4 Sinotruck Howo 10m3 Asphat Tank 16m3 Gravel Tank Asphalt Synchronous Chip Sealer photo-1

US$ 120000.00 - 120000.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Production Capacity:

400t/h

Max. Paving Thickness:

350mm

Contact Supplier Request Quote Chat Now

CLW Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Production Capacity 400t/h

Max. Paving Thickness 350mm

Paving Width 1m-4m

Place of Origin Hubei, China

Brand Name CLW, Sinotruck

Dimension(L*W*H) 12000x2500x3950mm

Weight 43000 kg

Certification ISO9001

Warranty 1 Year

1. Technical parameters of chip sealer.

Howo 10m3 asphat tank 16m3 gravel tank asphalt synchronous chip sealer

Main technical parameters	Name	Synchronous Chip Sealer	Outline size(mm)	12000x2500x3730
	Model	Howo	Gross weight(kg)	43000
	Engine model	WD615.69	Loading weight(kg)	25000
	Emission/ ( ml/Kw)	9726ml/247kw, 336Hp	Curb weight(kg)	18000
	Engine type	Diesel, 6 Cylinders, Direct line, Turbocharge and water cooling
	Fuel type	diesel	Wheelbase(mm)	1860+3960+1350
	Max speed(km/h)	90	Tire model / number	12.00R20 13 unit
	Operation control system	Electrically hydraulic	Transmission	10 speed 10F/2R
	Traction system	8X4	Electric System	24v
	Approaching angle(°)	16	Front / rear track(mm)	2020/1860
	Departure angle(°)	14	Front/rear hang(mm)	1250/2800
Upstructure configuration	Gravel tank(L)	16m3	Asphalt tank(mm)	10m3
	Material	carbon steel, stainless steel, side thickness 6mm, bottom thickness 8mm
	Asphalt Pump	QGB950/0.8	Fire Manner	Auto
	Heating Manner	Thermal Oil heated by fuel	Speed Measuring	Speed Sensor
	Nozzle Quantity	32 unit	Spraying Rate	950 L / min
	Spraying width	4500~6000mm	Standard Operation	Human Operation,option SIEMNES intelligent control

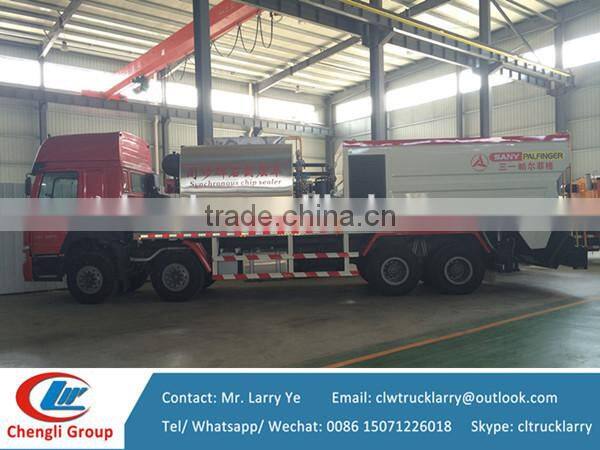

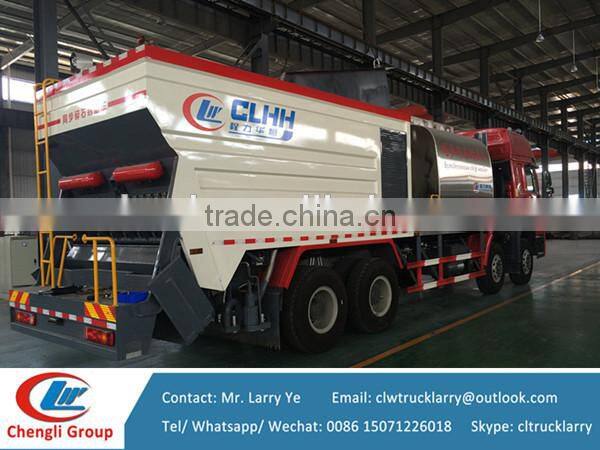

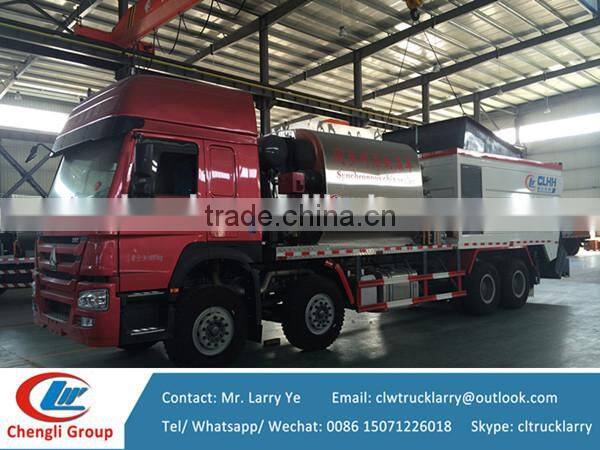

More photos for your reference:

1. Hydraulic drive, reliable, safe and noise-free;
2. Latest fan-shaped nozzle, three overlapping design;
3. In the cab equipped with comprehensive controller, real-time monitoring the asphalt temperature and asphalt pumping speed;
4. Asphalt pumping speed manual adjustable;
5. Efficient heat insulated asphalt tank;
6. Automatic Italian Riello burners;
7. High power rear lights for night operation;

2. Our service

(1) Over 1000 workers include our sales and engineers will offer you the best design, price, quality;

(2) Pefect after-sales service, offer long days quality guarantee

3. Company introduce

We are professional manufacturer for many kind of special trucks. If this kind of truck don't meet the demand of what you want, make free to let us know you details requirements, we would like to have a further discuss hence offer you the best price and quality!

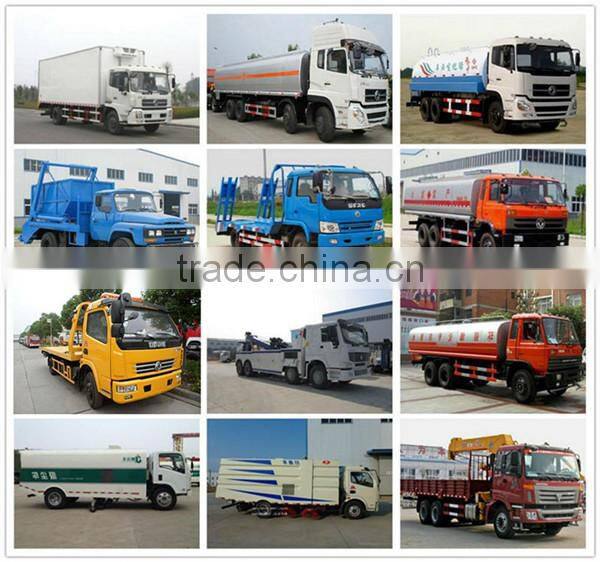

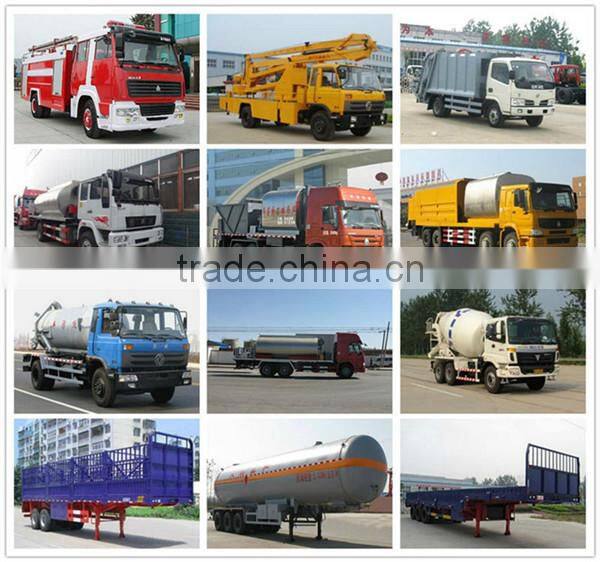

Here are some of our products:

Watercart/water truck
Sewage and fecal suction truck
Garbage truck/ garbage compactor truck
Sweeper truck/street sweeper/floor cleaning car/roadsweeper
High-altitude truck
Truck with crane/mounted crane truck
Fuel truck/oil tanker truck/gas tanker truck
Chemiacl liquid truck
Mixer truck/ cement and concrete mixer truck
Fire fighting truck
Dumper truck/tipper truck
Van/refrigrator/explosion truck
LED/stage truck
Wrecker truck
Flatbed transportation truck/low bed delivery truck
All kind semi-trailer
Pressure vessal truck
Asphalt distributor/asphalt bitumen distributor truck
LPG tank/trailer

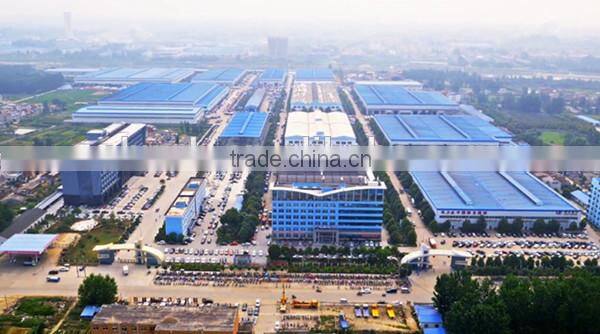

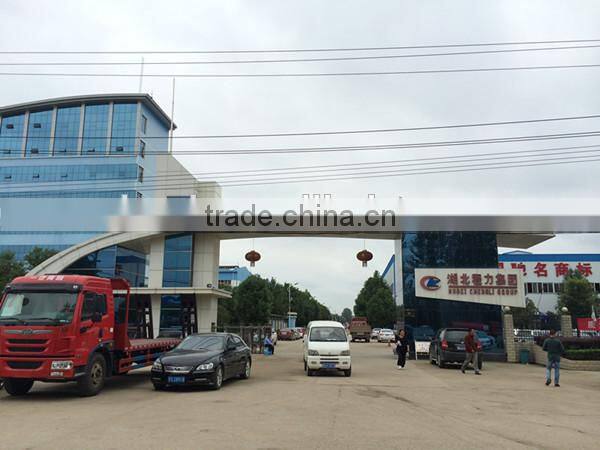

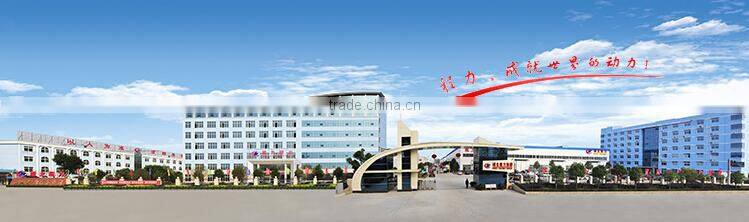

4. Company strength

In 2013, our factory was honored to be named China‘s top 500 private manufacturing enterprises as 392th. We are looking forward to build a long and successful partnership with you in the near future.
