1. Technical parameters of LPG tank trailer.

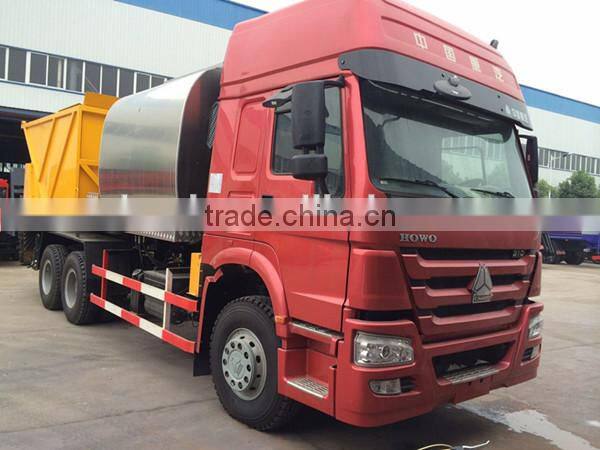

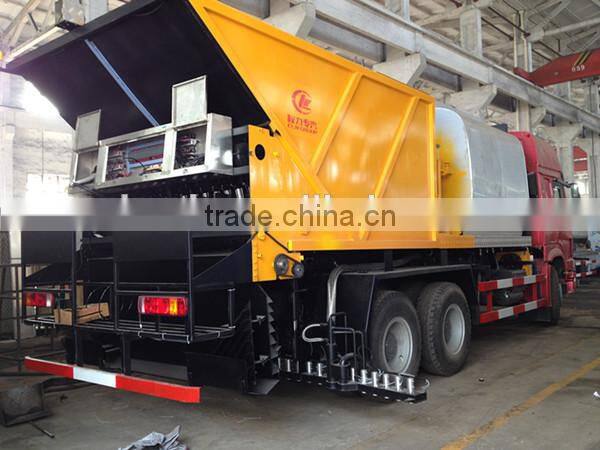

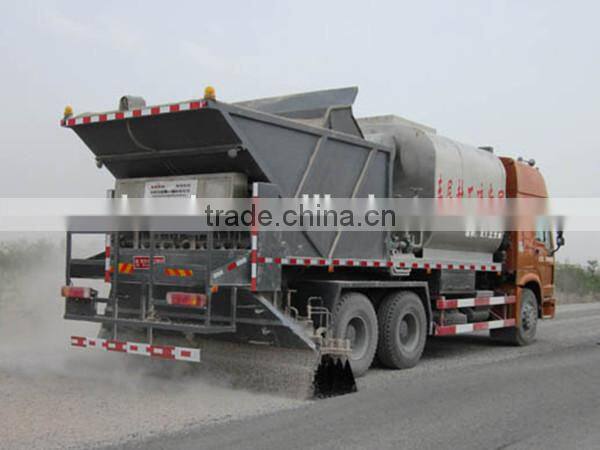

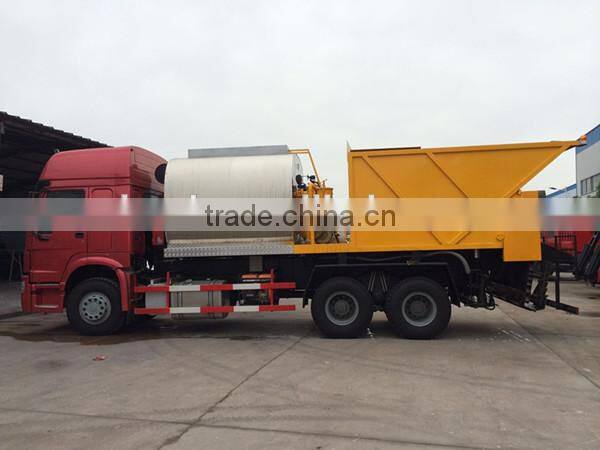

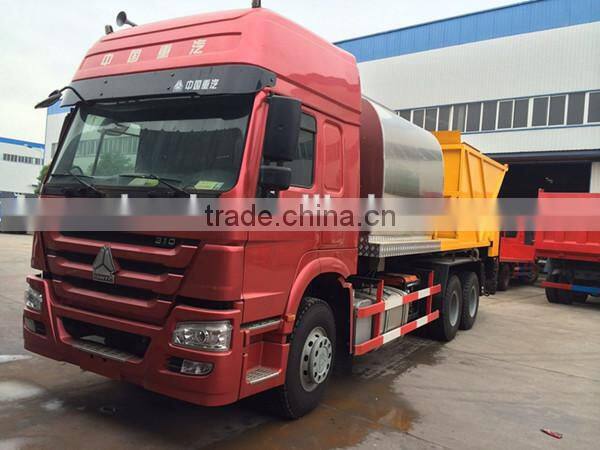

6x4 Sinotruck howo synchronous asphlat chip sealer
ITEM |
UNIT |
PARAMETER |
|
Vehicle |
|
Howo Synchronous chipsealer |
|
Overall dimensions |
mm |
10250x2500x3650 |
|
Asphalt tank dimention |
2400x2350x2020 /ellipse |
||
Insulating layer |
80 |
||
Asphalt tank capacity |
m3 |
10 |
|
Gravel tank capacity |
12 |
||
GVW |
kg |
Appro×32000 |
|
Curb weight |
Appro×18500 |
||
Payload |
Appro×13500 |
||
Wheel base |
mm |
4600+1350 |
|
F/R track base |
2022/1830 |
||
F/R suspension |
1500/2750 |
||
Approach/departure angle |
° |
16/14 |
|
Suspension |
mm |
1250/2800 |
|
Max speed |
km/h |
95 |
|
Axle Load |
kg |
7000/22900 |
|
Drive system |
6x4 |
Steel |
Power, sino |
Tire specification |
12.00-20 16PR |
Number of axles |
3 |
Engine model |
Manufacturer |
China National Heavy Duty Truck Group Co ., Ltd |
|
Model |
WD615.69 |
||
Emission/kw |
9726ml/247Kw, 336hp |
||
Gear box |
10F&2R |
||
|
Emission standard |
Eu 2 |
|
Asphalt tank |
Stainless steel scrub, with Insulating layer |
||
Spray medium |
Hot asphalt, emulsified asphalt and residual oil |
||
More photos for your reference:
2. Our service
(1) Over 5000 workers include our sales and engineers will offer you the best design, price, quality;
(2) Pefect after-sales service, offer long days quality guarantee
3. Company introduce
We are professional manufacturer for many kind of special trucks. If this kind of truck don't meet the demand of what you want, make free to let us know you details requirements, we would like to have a further discuss hence offer you the best price and quality!
Here are some of our products:
- Watercart/water truck
- Sewage and fecal suction truck
- Garbage truck/ garbage compactor truck
- Sweeper truck/street sweeper/floor cleaning car/roadsweeper
- High-altitude truck
- Truck with crane/mounted crane truck
- Fuel truck/oil tanker truck/gas tanker truck
- Chemiacl liquid truck
- Mixer truck/ cement and concrete mixer truck
- Fire fighting truck
- Dumper truck/tipper truck
- Van/refrigrator/explosion truck
- LED/stage truck
- Wrecker truck
- Flatbed transportation truck/low bed delivery truck
- All kind semi-trailer
- Pressure vessal truck
- Asphalt distributor/asphalt bitumen distributor truck
- LPG tank/trailer
4. Company strength
In 2013, our factory was honored to be named China‘s top 500 private manufacturing enterprises as 392th. We are looking forward to build a long and successful partnership with you in the near future.
5. Contact us
Thanks for your patience and hope we could have a further communicate about this.
