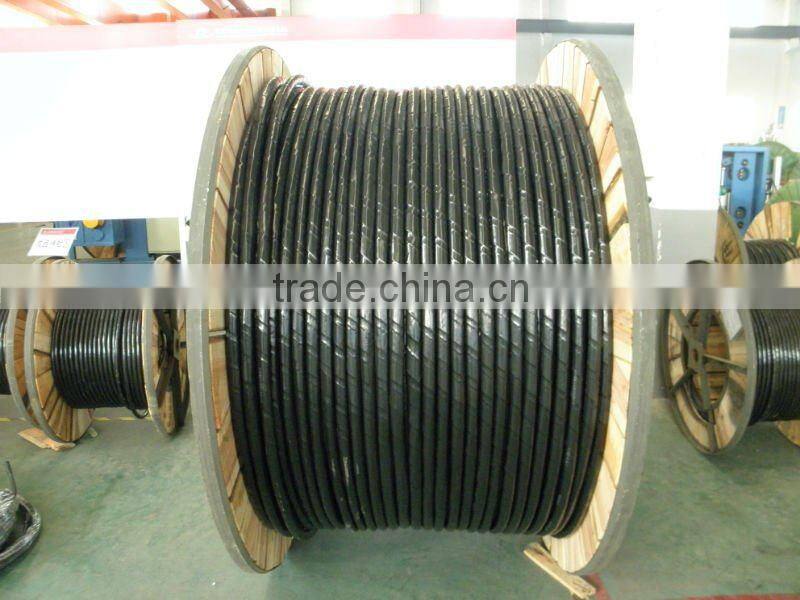

GYTY53 Fiber Optical Cable

Name: GYTY53 Fiber Optical Cable
Brand: TDGD
SKU: 116842941
Availability: InStock

Negotiable MOQ: 30 Kilometers (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

TDGD

Model Number:

GYTY53

Tongding Group Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name TDGD

Model Number GYTY53

Type Coaxial

Specifications

Standard loose tube armored fiber optic cable
good excellect quality
100% testing before delivery
IS09001 SGS certific

Application:

Long-distance telecom, LAN in high-voltage area or access to telecom network

Especially for power transmission system, excessive thunder areas and high electromagnetic interference.

Recommended laying methods

High-voltage area, Aerial

Technologe parameter:

1.1 Strength Armoured cable SM (9/125)
General properties	unit	Nominal value
Fiber Count (G652D) Singlemode(9/125)		2-144
Cable OD	mm	12-15.5±0.1
Filler compound		3fillers or 4fillers make of PRP
Center strenth member		steel wire
Iner sheath thickness(PE)	mm	1.2±0.1
Outer sheath thickness(PE)	mm	2.0±0.1
Cable weight	Kg/km	165-205
steel tape thickness	mm	0.25mm
Attenuation	dB/KM	850nm≤2.5kb/km 1310nm≤0.8kb/km
Max.allowable pulling force	N	Long term: ≤1500N Short term: ≤3000N
Max.allowable pressure resistance	N	Long term: ≤1500N Short term: ≤3000N
1.2 Working conditions
Temperature range: Transport and storage:-40°C to +70°C Installation: -10°C to +60°C Operation: -40°C to +70°C			Minimal bending radius: Installation: 25XOD Work condition:12.5xOD
